THEIS TCL POCKET Gebrauchsanleitung Seite 19

4. Detector LVH100 (Option XL)
Arrow LED red
Centre display LED blue
Arrow LED red
On / Off button
Vertical level

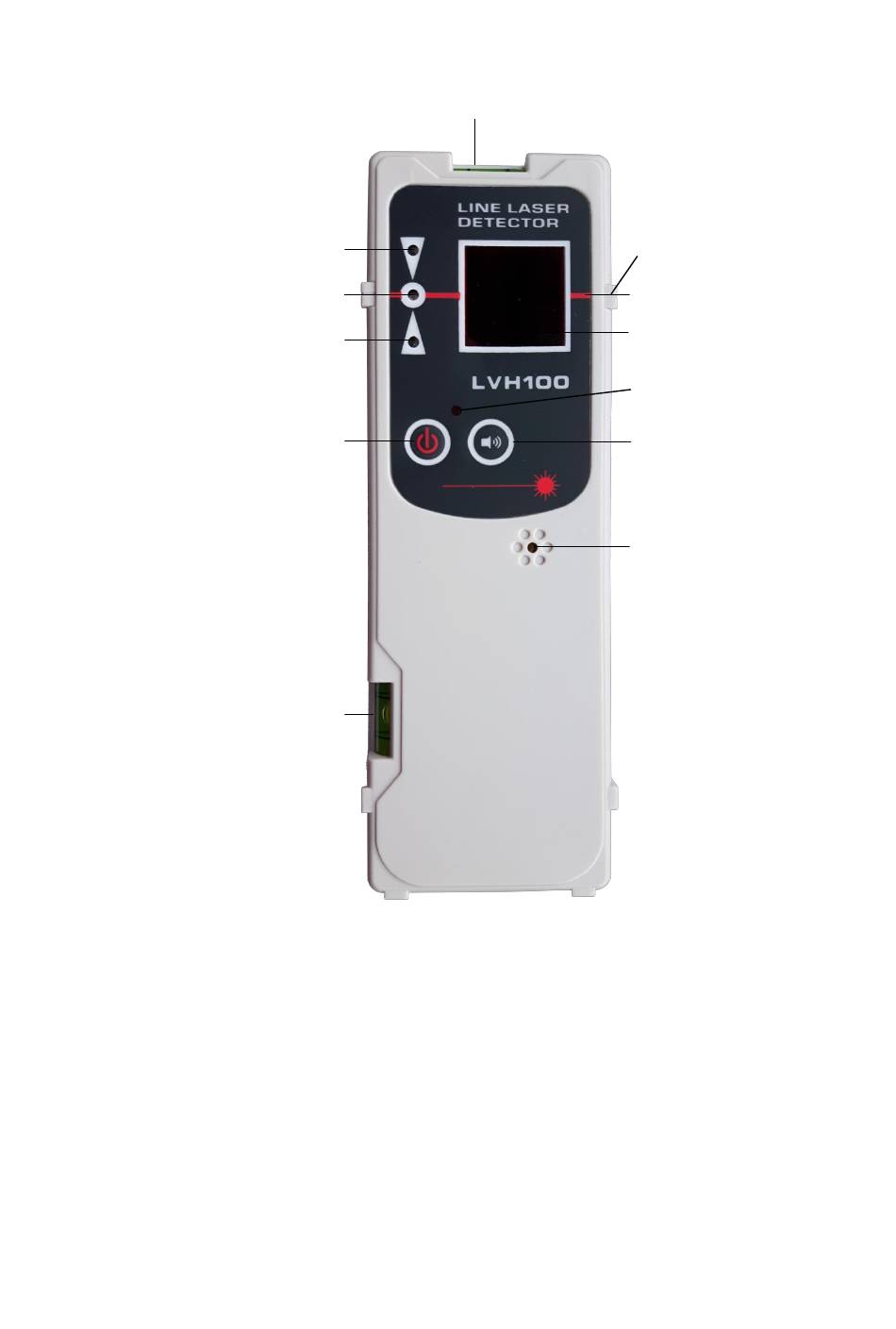

Image 3: Detector LVH100
Switch on the detector by pressing the ON/OFF button (Image
3). The operating indicator light indicates the switched on state.
The acoustic signal can be deactivated or activated using the
Horn button (Horn On is the default setting).
To align or detect the laser lines, the sensor window of the
LVH100 is aligned in the direction of the TCL POCKET.
The position of the detector can be checked via the integrated
levels.
Horizontal level
19
Centre notch
Centre line
Sensor window
Operating and battery
indicator light
Horn button
Exit for acoustic signal
(horn)
