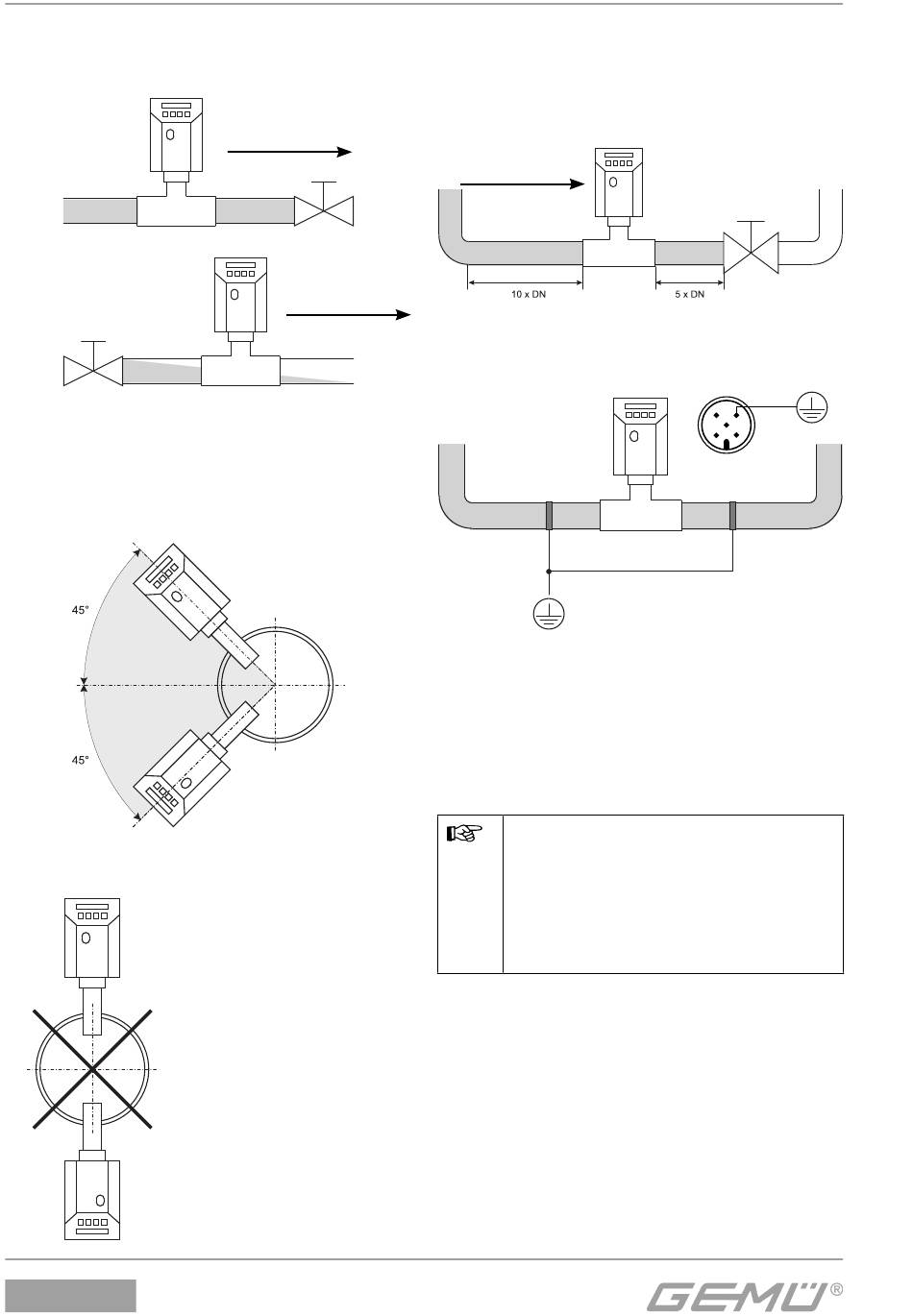

Upstream of the GEMÜ 3030
outlet is allowed to ensure that the pipeline
is always completely fi lled.
Correct
Incorrect
In addition, the fl owmeter must be installed
in a horizontal mounting position at the side
of the area defi ned below.
Preferred installation position
Non-recommended installation position
Danger of trapped air
Danger of solid matter
deposits
3030
Flow no free
m
Flow
Flow
In order to avoid turbulence as a result
of pipe bending which can falsify the
measurement results, a straight inlet
distance of 10 x DN and a straight outlet
distance of 5 x DN should be planned.
Flow
The electronics housing with display can be
rotated through 370°.
For plant-specifi c reasons earth potential
diff erences between pipeline and reference
earth may occur. Earth the pipeline before
and after the fl owmeter to eliminate these
diff erences.
Important:
To guarantee the measuring
accuracy, the GEMÜ 3030
must be installed in the fi lled
pipeline at least 24 hours before
measurement.
8 / 20
4 3
5
1 2
X3
Flow
m
