uni 20_85RF/uni 22_85RF bridge

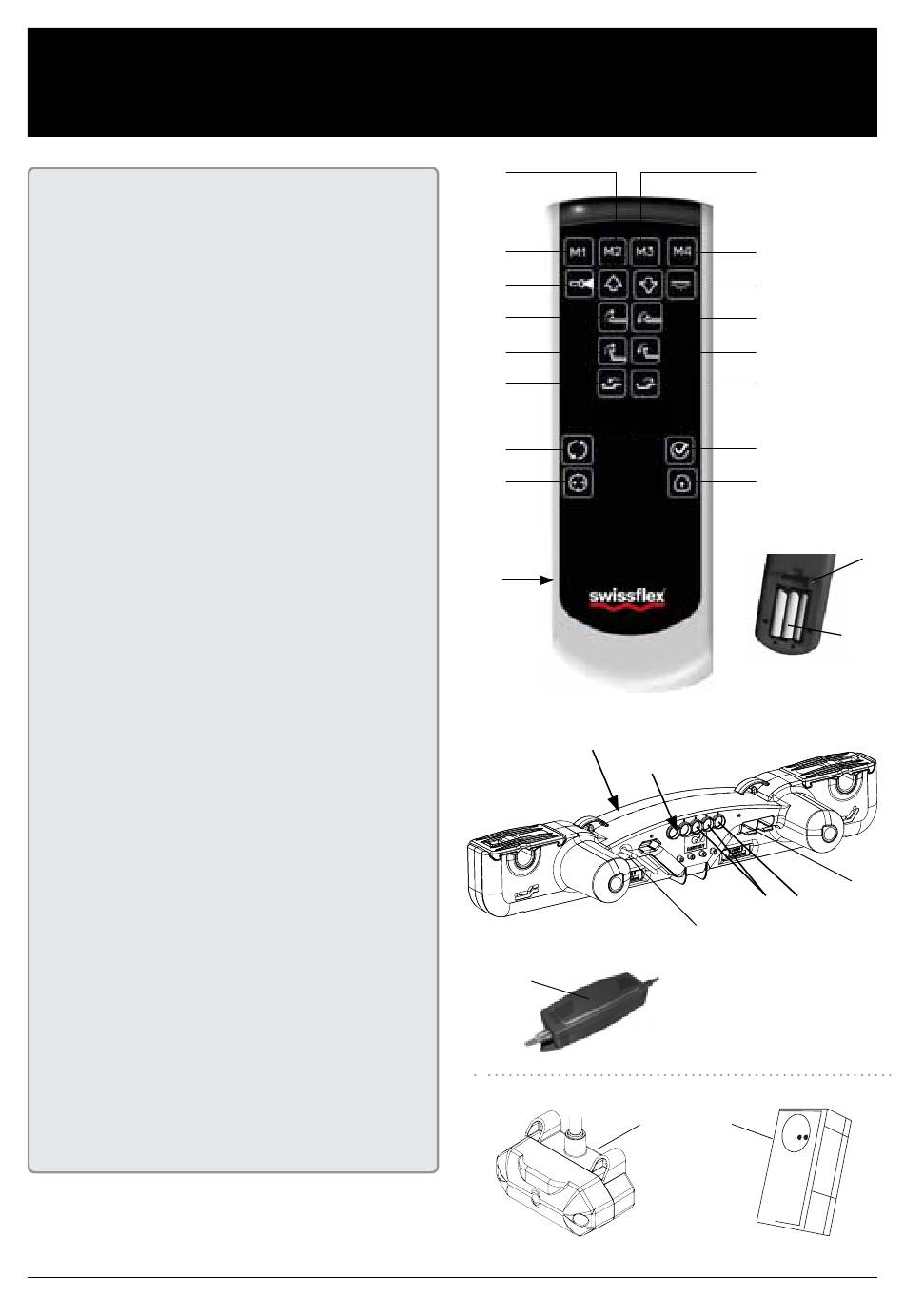

Radio remote control
1 Memory position 1
2 Memory position 2
3 Memory position 3
4 Memory position 4
5 Pocket lamp
6 All motors «up»
7 All motors «down»
8 Floor lighting
9 Control system head section «up»
10 Control system head section «down»
11 Control system back section «up»
12 Control system back section «down»
13 Control system thigh section «up»
14 Control system thigh section «down»
15 Activating / disabling the sync function
16 Memory button
17 User socket on / off
18 Key blocking (child safety device)
19 Battery compartment
(on the back of the radio remote control)
In the battery compartment:
red teach-in button
20 3x AAA-Battery (included in the delivery)
Motor control
21 Sync cable connection /
Bluetooth Adapter (connection)
22 Under-floor lighting (internal)
23 Connection for mains supply unit /
Connection for external under-floor
lighting
24 Connection for auxiliary motors
25 Teach-in button / emergency lowering
button (back of the motor)
26 Battery compartment for emergency
lowering (2x 9V)
(only connect if required)
27 Switching power supply
28 Bluetooth adapter (optional)
(motor connection)
29 User socket (optionally)
12
Operating instructions
2
1
5, 6
9
11
13
15
17
19
25
22
27
®
3
4
7, 8
10
12
14
16
18
24 21
23 (2 cables)
29
28
19
20
26
GB
