6. APPENDIX (continued)

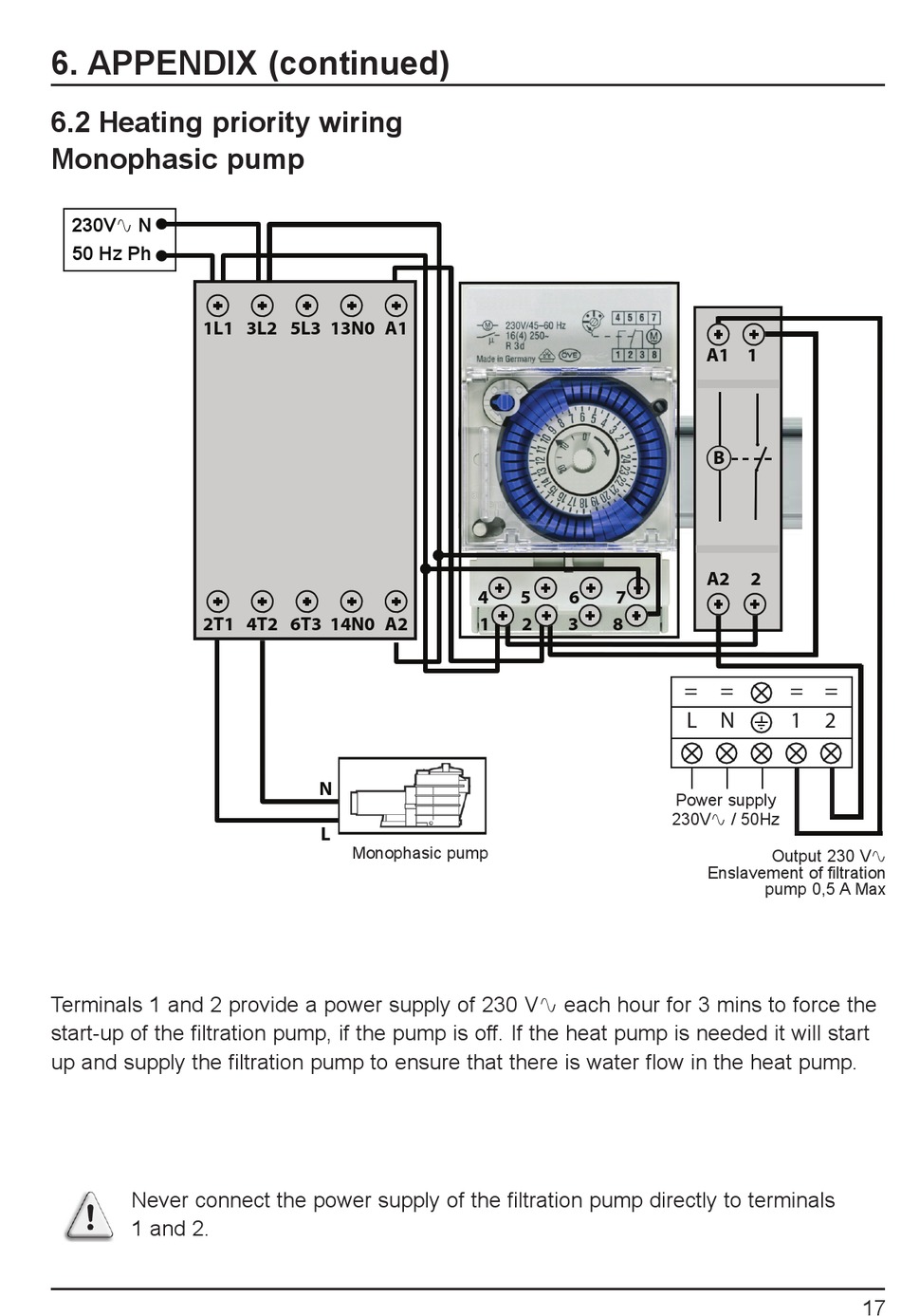

6.2 Heating priority wiring

Monophasic pump
230V
N
50 Hz Ph
1L1 3L2 5L3
2T1 4T2
Terminals 1 and 2 provide a power supply of 230 V
start-up of the filtration pump, if the pump is off. If the heat pump is needed it will start
up and supply the filtration pump to ensure that there is water flow in the heat pump.
Never connect the power supply of the filtration pump directly to terminals
1 and 2.
13N0
A1
6T3
14N0
A2
N
L
Monophasic pump
4
5
6
7
1
2
3
8
each hour for 3 mins to force the
A1 1
B
A2
2
= =
= =
L N
1 2
Power supply
230V
/ 50Hz
Output 230 V
Enslavement of filtration
pump 0,5 A Max
17
