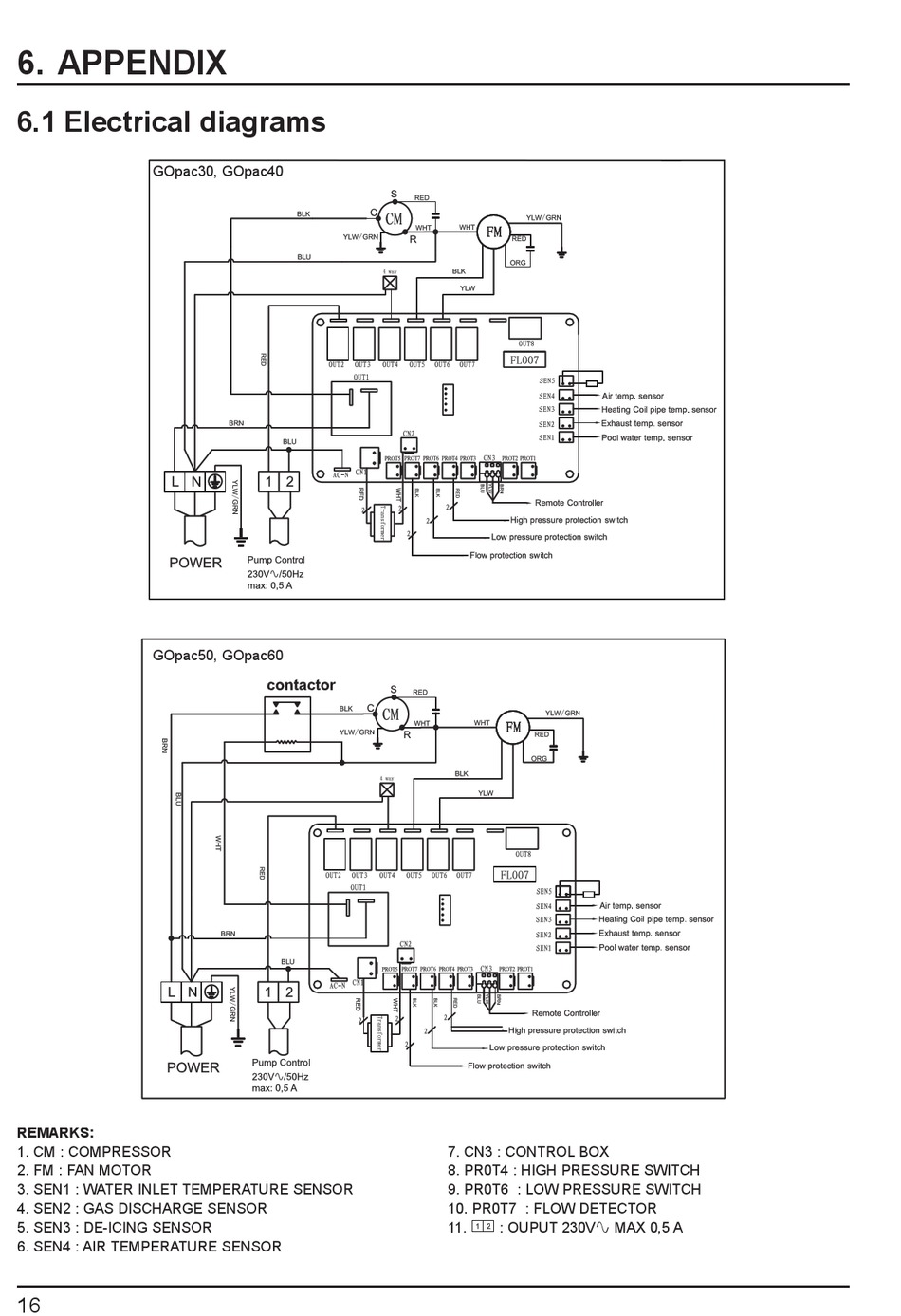

6. APPENDIX

6.1 Electrical diagrams

GOpac30, GOpac40
GOpac50, GOpac60
REMARKS:
1. CM : COMPRESSOR
2. FM : FAN MOTOR
3. SEN1 : WATER INLET TEMPERATURE SENSOR
4. SEN2 : GAS DISCHARGE SENSOR
5. SEN3 : DE-ICING SENSOR
6. SEN4 : AIR TEMPERATURE SENSOR
16
7. CN3 : CONTROL BOX
8. PR0T4 : HIGH PRESSURE SWITCH
9. PR0T6 : LOW PRESSURE SWITCH
10. PR0T7 : FLOW DETECTOR

11. : OUPUT 230V MAX 0,5 A
