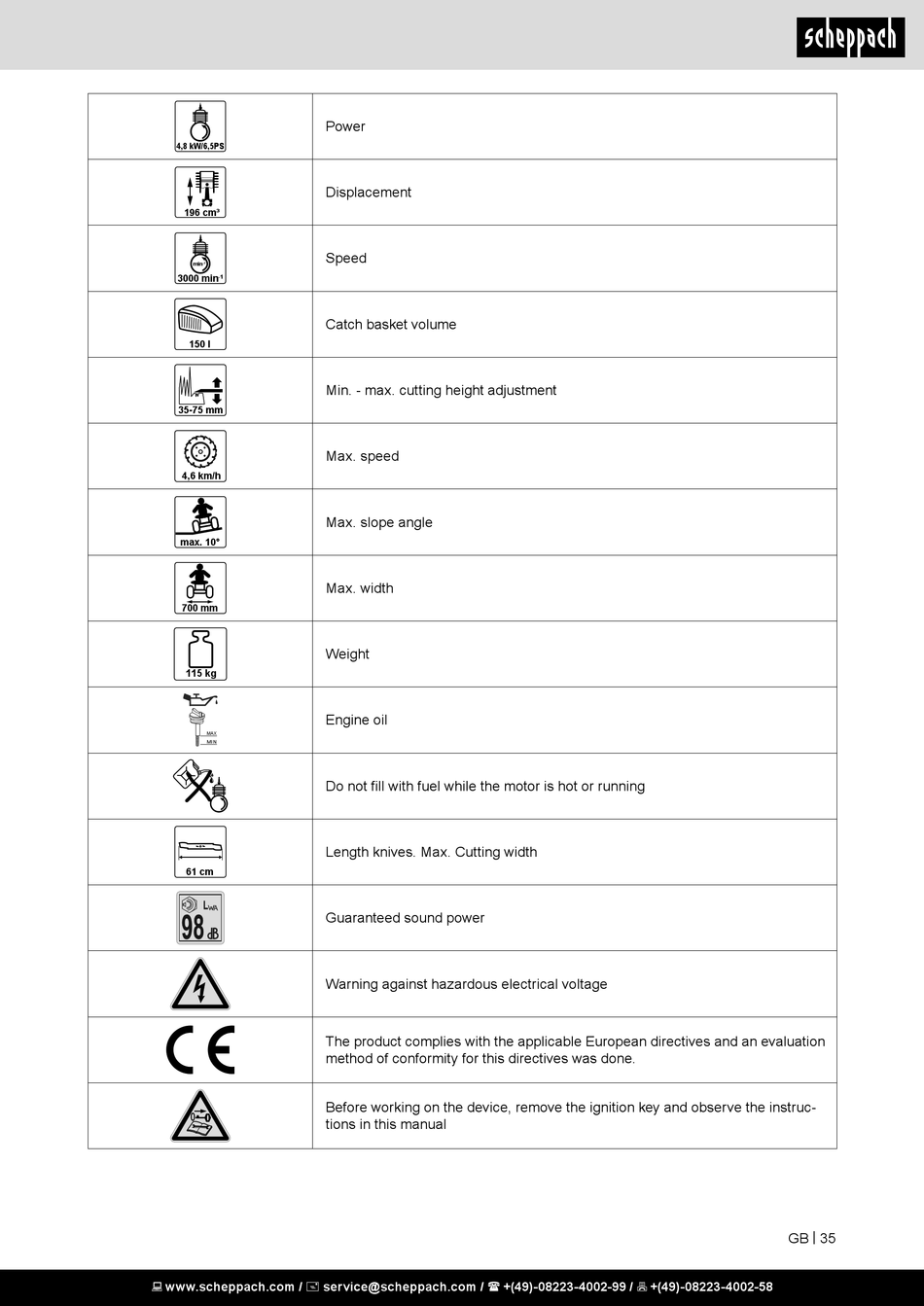

Scheppach MR196-61 Original Bedienungsanleitung Seite 35

Power
4,8 kW/6,5PS
Displacement
196 cm³
Speed
min -1
3000 min -1
Catch basket volume
150 l
Min. - max. cutting height adjustment
35-75 mm
Max. speed
4,6 km/h
Max. slope angle
max. 10°
Max. width
700 mm
Weight
115 kg
Engine oil
MAX
MI N
Do not fill with fuel while the motor is hot or running
Length knives. Max. Cutting width
61 cm
Guaranteed sound power
Warning against hazardous electrical voltage
The product complies with the applicable European directives and an evaluation
method of conformity for this directives was done.
Before working on the device, remove the ignition key and observe the instruc-
tions in this manual
 www.scheppach.com /  service@scheppach.com /  +(49)-08223-4002-99 /  +(49)-08223-4002-58
GB | 35
