CONNECTION GUIDE

PS3 SET UP :
1] Connect the AV RCA cable into the back of your PS3.
2] Connect the RED/WHITE connectors from the AV RCA Cable into the
3] Connect the yellow VIDEO connector into the
4] Connect the the wireless transmitter into an available
5] Connect the audio cable into the wireless transmitter.
6] Turn on your PS3 console.
7] Turn your Headset ON by pressing the Power Button. Pairing with the
8] Make sure that microphone mute is OFF.
9] Go to Settings > Accessory Settings > Audio Device Settings
10] Go to Settings > Sound Settings > Audio Output Settings,
5
EX6UNI-wireless-manual-book.indb 5
WITH A/V CABLES (WITHOUT HDMI)
corresponding RED/WHITE sockets on the RCA to Audio cable.
Video IN socket of your TV/Monitor.
USB port on the front of your PS3 console.
wireless transmitter should happen automatically. However, if pairing is
unsuccessful, please refer to the Pairing section in 'Getting Started'.
and select EX-06 Headset for both the Input and Output.
You will be able to hear yourself talking into the microphone
through the headset earcups. Set the desired volume level
choose Audio Input Connector/ Scart / AV Multi.

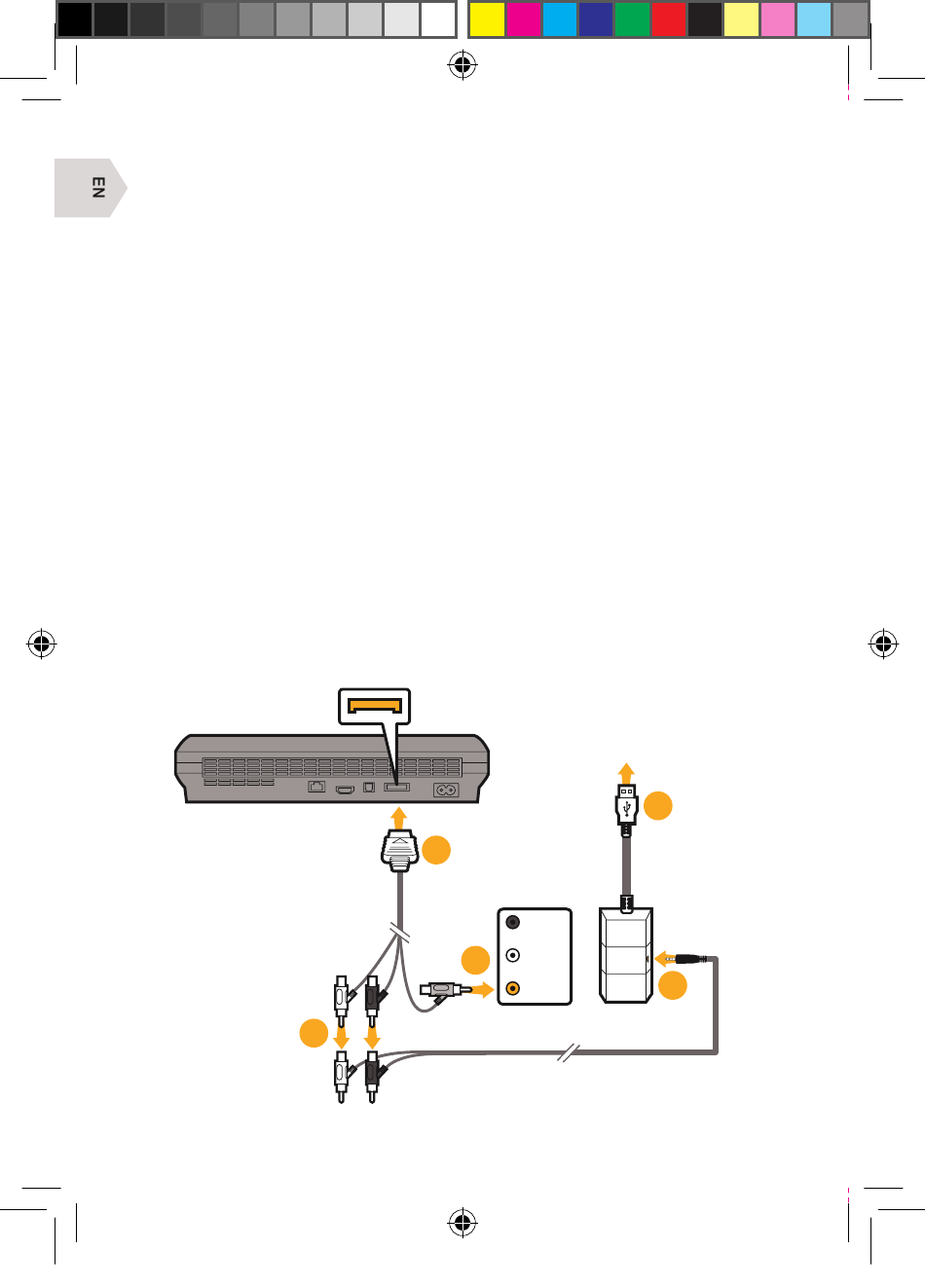

AV MULTI OUT
AV RCA CABLE
(SUPPLIED WITH
PS3 CONSOLE)
02
CONNECT INTO
THE FRONT
01
03
YELLOW/
VIDEO
TV / MONITOR
AUDIO OUT
OF PS3
04
05
