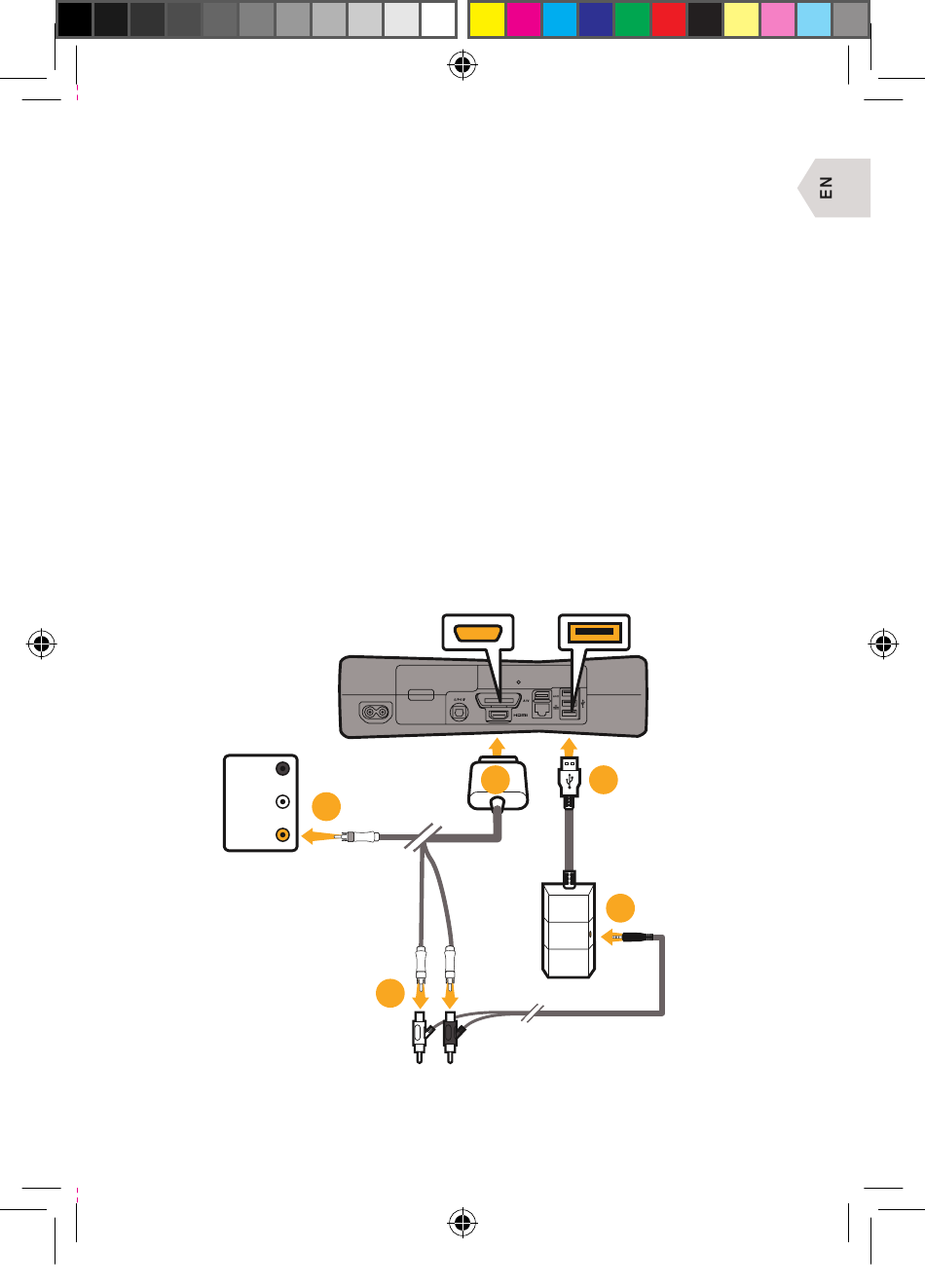

XBOX SET UP :
1] Connect the AV RCA Cable into the back of your Xbox.
2] Connect the RED/WHITE connectors from the AV RCA Cable into the
3] Connect the yellow VIDEO connector into the
4] Connect the the wireless transmitter into an available
5] Connect the audio cable into the wireless transmitter.
6] Turn on your Xbox and make sure that your controller is wirelessly
7] Turn your Headset ON by pressing the Power Button. Pairing with the
8] Make sure that microphone mute is OFF.
9] Go to chat set up.
EX6UNI-wireless-manual-book.indb 8
WITH A/V CABLES (WITHOUT HDMI)
corresponding RED/WHITE sockets on the RCA to Audio cable.
Video IN socket on your TV/Monitor.
USB port on the front of your Xbox console.
connected to your console (do not leave the controller charging
or it will transfer electrical noise into your headset).
wireless transmitter should happen automatically. However, if pairing is
unsuccessful, please refer to the Pairing section in 'Getting Started'.
