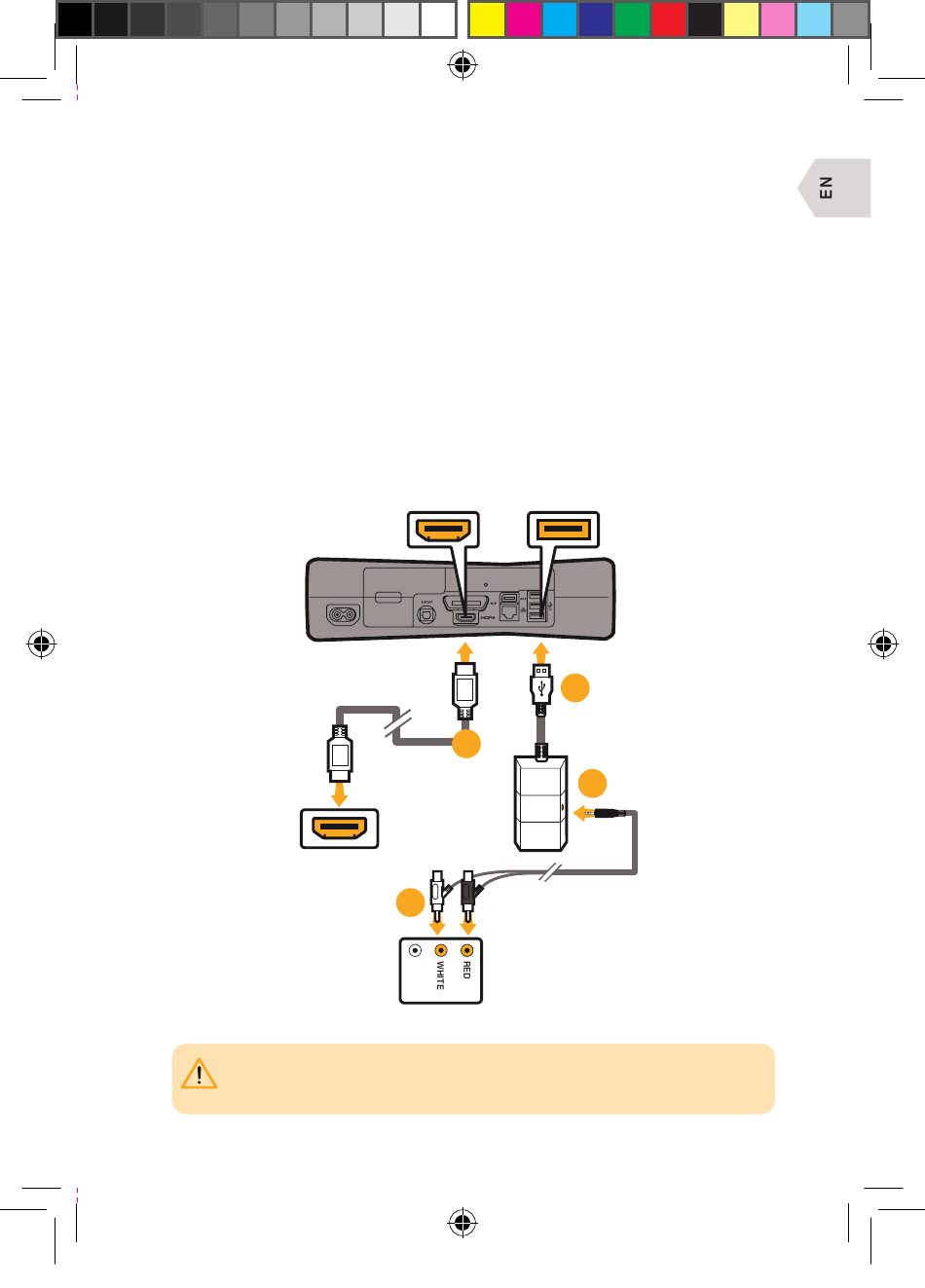

XBOX SET UP :
1] Connect the HDMI (not included) between your Xbox and TV/Monitor.
2] Connect the RED/WHITE connectors from the RCA to Audio cable
3] Connect the the wireless transmitter into an available
4] Connect the audio cable into the wireless transmitter.
5] Turn on your Xbox and make sure that your controller is wirelessly
6] Turn your Headset ON by pressing the Power Button. Pairing with the
7] Make sure that microphone mute is OFF.
8] Go to chat set up.
EX6UNI-wireless-manual-book.indb 10
WITH HDMI (OPTION B)
into the Audio OUT RED/WHITE sockets on your TV/Monitor.
USB port on the front of your Xbox console.
connected to your console (do not leave the controller charging
or it will transfer electrical noise into your headset).
wireless transmitter should happen automatically. However, if pairing is
unsuccessful, please refer to the Pairing section in 'Getting Started'.
(NOT SUPPLIED)
TV/MONITOR
HDMI INPUT
PLEASE NOTE: Your TV/Monitor will need to have Audio Out (RED/WHITE) sockets.
Most, but not all TVs/Monitors have RED/WHITE Audio IN and YELLOW Video IN sockets
but not all TV's, and even fewer monitors have RED/WHITE Audio OUT sockets.
HDMI OUTPUT USB PORT
HDMI CABLE
01
02
TV / MONITOR
AUDIO OUT
03
04
10
