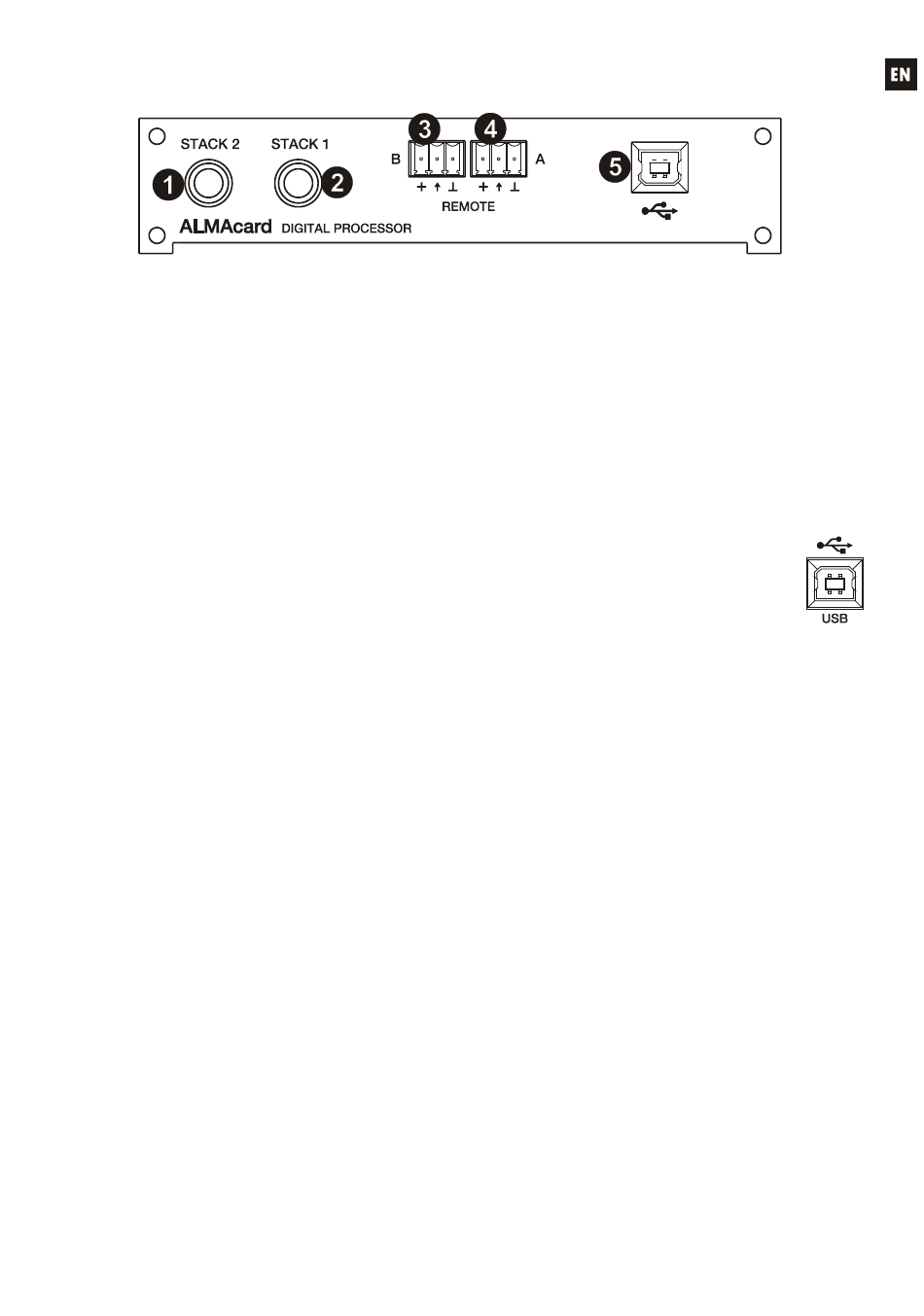

4. CONNECTIONS

STACK connectors (1, 2)
Correspond to the third and fourth audio outputs of the ALMAcard integrated processor, available
for connecting to other amplifiers or external devices.
REMOTE connectors (3, 4)
The A and B REMOTE connectors allow you to simultaneously control the volume of one or
multiple inputs, or one or multiple outputs through a WPm series wall panel or similar (0-10VDC). The
inputs or outputs controlled from each REMOTE port are selected with the EclerCOMM Manager
application software.
USB Connector (5)
A type-B USB connector (1) is used to connect the ALMAcard to a PC and perform the
unit management and control from EclerCOMM Manager software.
7
