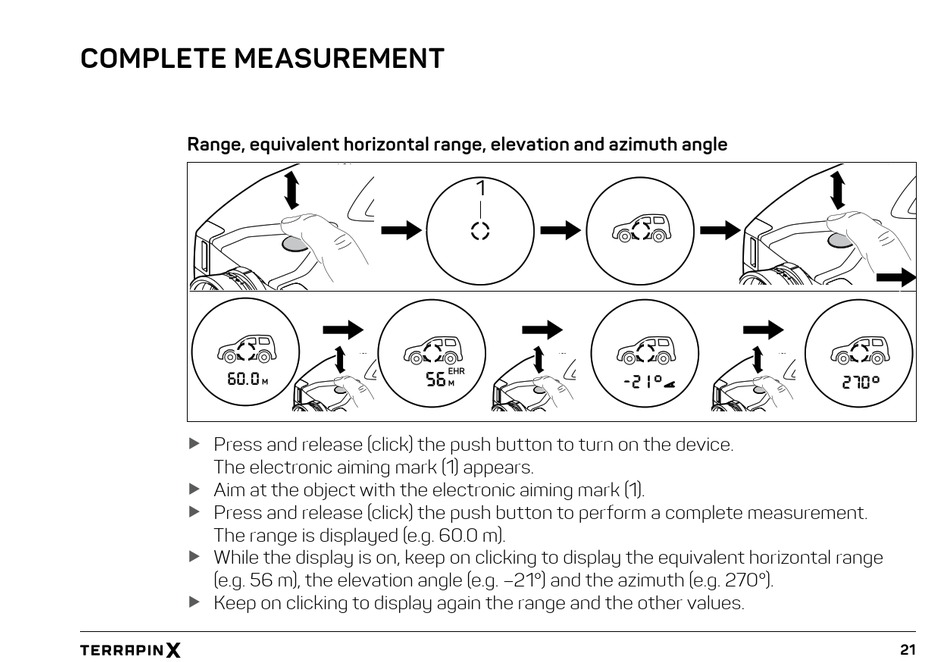

CoMpLETE MEASUREMENT

Range, equivalent horizontal range, elevation and azimuth angle
Press and release (click) the push button to turn on the device.
X
The electronic aiming mark (1) appears.
Aim at the object with the electronic aiming mark (1).
X
Press and release (click) the push button to perform a complete measurement.
X
The range is displayed (e.g. 60.0 m).
While the display is on, keep on clicking to display the equivalent horizontal range
X
(e.g. 56 m), the elevation angle (e.g. –21°) and the azimuth (e.g. 270°).
Keep on clicking to display again the range and the other values.
X
1
21
