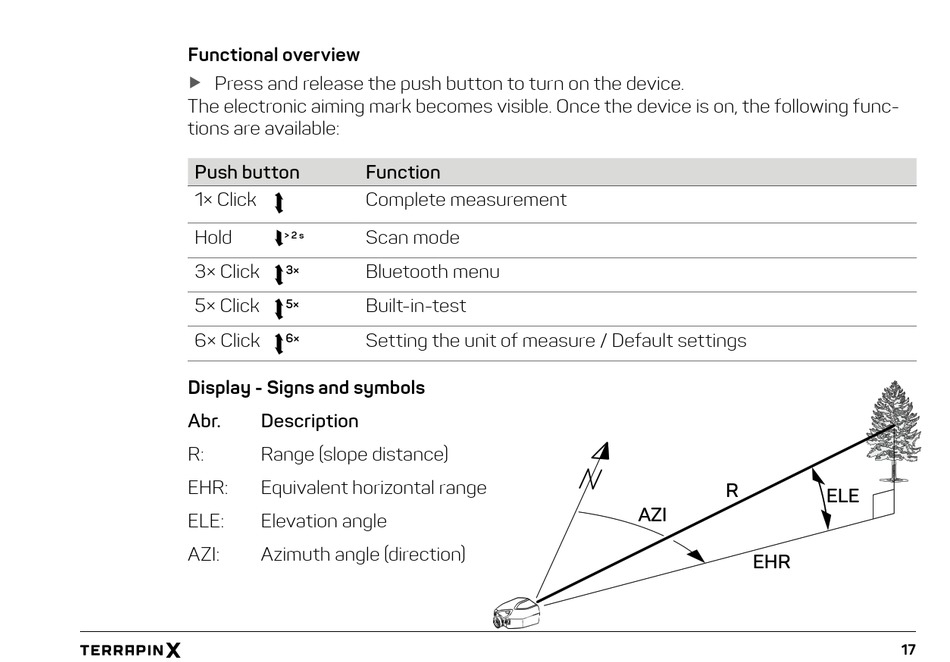

functional overview
Press and release the push button to turn on the device.
X
The electronic aiming mark becomes visible. Once the device is on, the following func-
tions are available:
push button function
1× Click Complete measurement
Hold Scan mode
> 2 s
3× Click Bluetooth menu
3×
5× Click Built-in-test
5×
6× Click Setting the unit of measure / Default settings
6×
Display - Signs and symbols
abr. Description
R: Range (slope distance)
EHR: Equivalent horizontal range
ELE: Elevation angle
AZI: Azimuth angle (direction)
R
AZI
EHR
ELE
