DC2412-UPSD | DC2412-UPS-LDD | UPSIC-1205D | UPSIC-2403D

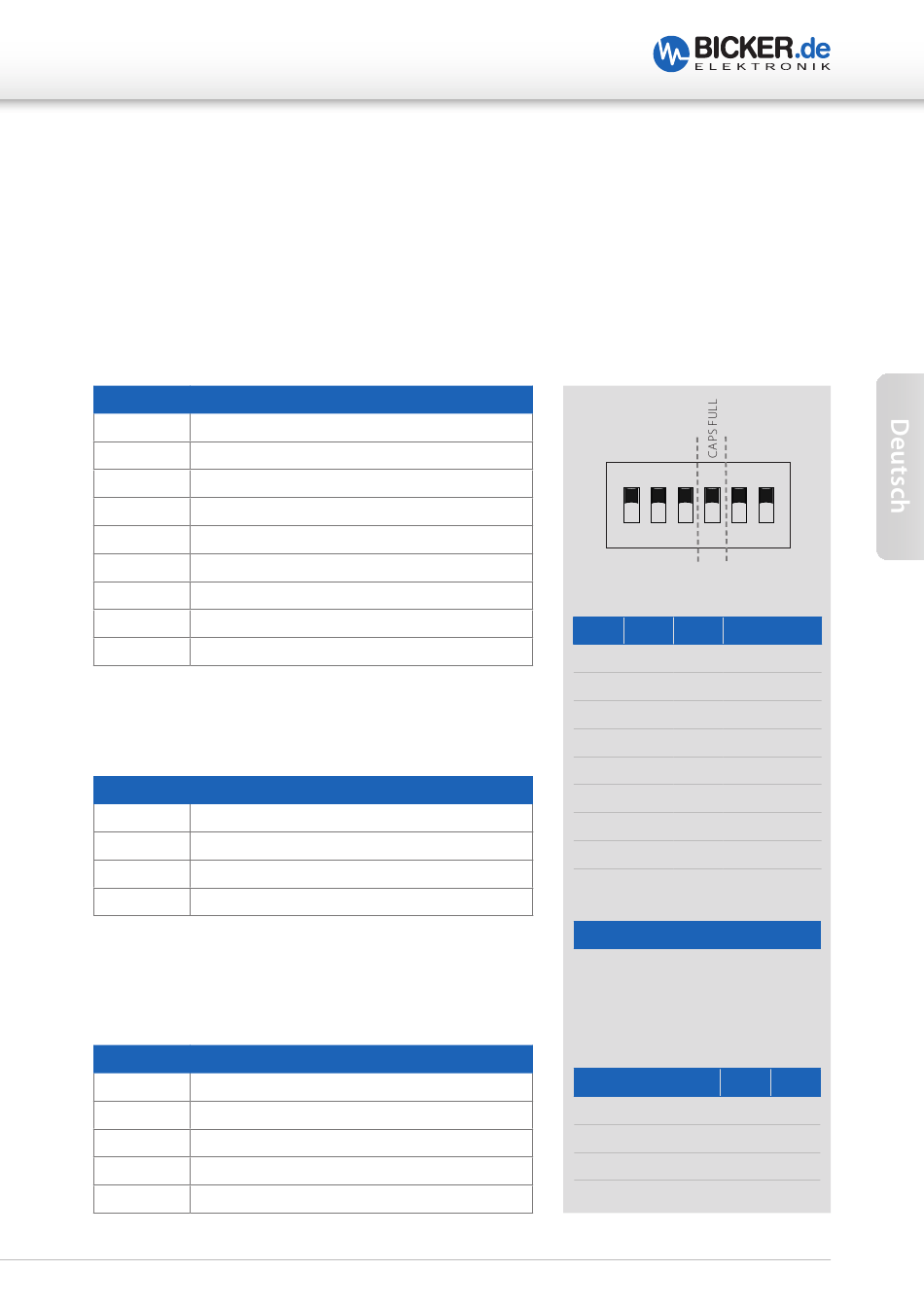

12.2 Kurzübersicht Pinbelegung und DIP-Switch-Einstellungen
Pinbelegung RS232 / D-SUB
PIN
SIGNAL
1
DCD at PC – Detection cable connected
2
TXD (is connected to RXT at PC)
3
RXD (is connected to TXD at PC)
4
Shutdown signal detection
5
GND
6
DSR at PC – Detection caps loading status
7
RTS at PC – Supply voltage
8
CTS at PC – Power Fail detection
9
N/A
Pinbelegung RL / PBR
PIN
SIGNAL
04 / RL
Relay connection
03 / RL
Relay connection
02 / PBR –
(V –) Shutdown-Signal (Impuls 200-400 ms)
01 / PBR + (V +) Shutdown-Signal (Impuls 200-400 ms)
Pinbelegung IN / IGN / OUT
PIN
SIGNAL
05 / IN +
V + Input
04 / IN –
V – Input
03 / IGN
Ignition signal (nur DC2412-UPS-LDD)
02 / OUT + V + Output
01 / OUT – V – Output
DIP-Switch-Einstellungen
PF
SD(RB)
6
5
4
3
2
Power Fail (PF) - Timer
6
5
4
PIN
ON
ON
ON
Software
ON
ON
OFF
3s
ON
OFF
ON
8s
OFF OFF
ON
20s
ON
ON
OFF
40s
ON
OFF
OFF
60s
ON
OFF OFF
100s
OFF OFF OFF
150s
Output release
PIN 3
ON Output released
when V
over 90 %
CAP
Shutdown Timer
PIN
2
No Reboot
ON
Reboot after 10s
OFF
Reboot after 30s
ON
Reboot after 60s
OFF OFF
1
ON
1
ON
ON
OFF
13
