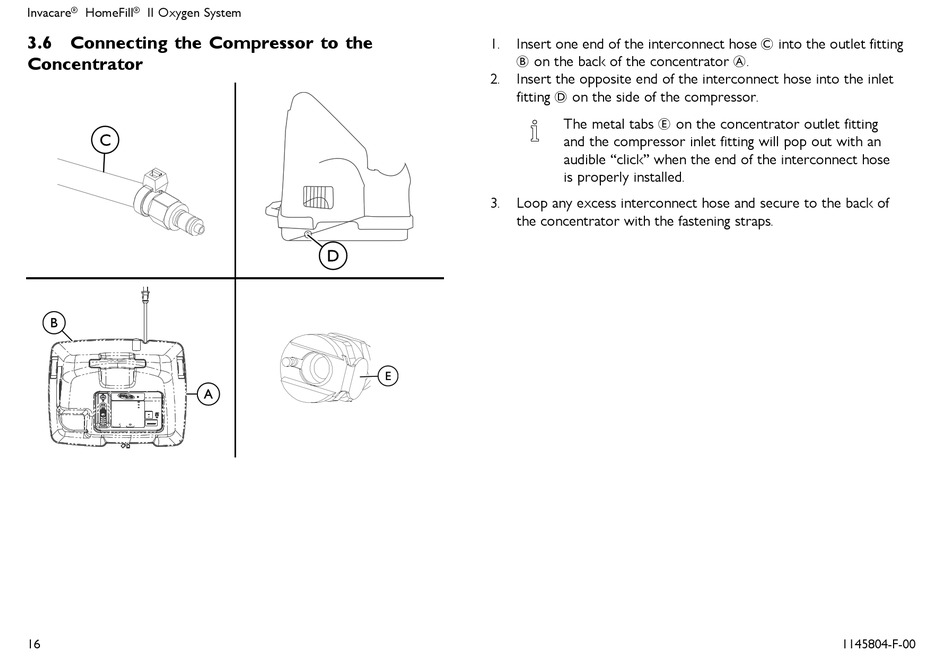

Invacare® HomeFill® II Oxygen System
3.6 Connecting the Compressor to the
Concentrator
16
1. Insert one end of the interconnect hose C into the outlet fitting
B on the back of the concentrator A.
2. Insert the opposite end of the interconnect hose into the inlet
fitting D on the side of the compressor.
The metal tabs E on the concentrator outlet fitting
and the compressor inlet fitting will pop out with an
audible "click" when the end of the interconnect hose
is properly installed.
3. Loop any excess interconnect hose and secure to the back of
the concentrator with the fastening straps.
1145804-F-00
