Z21 multi LOOP
®

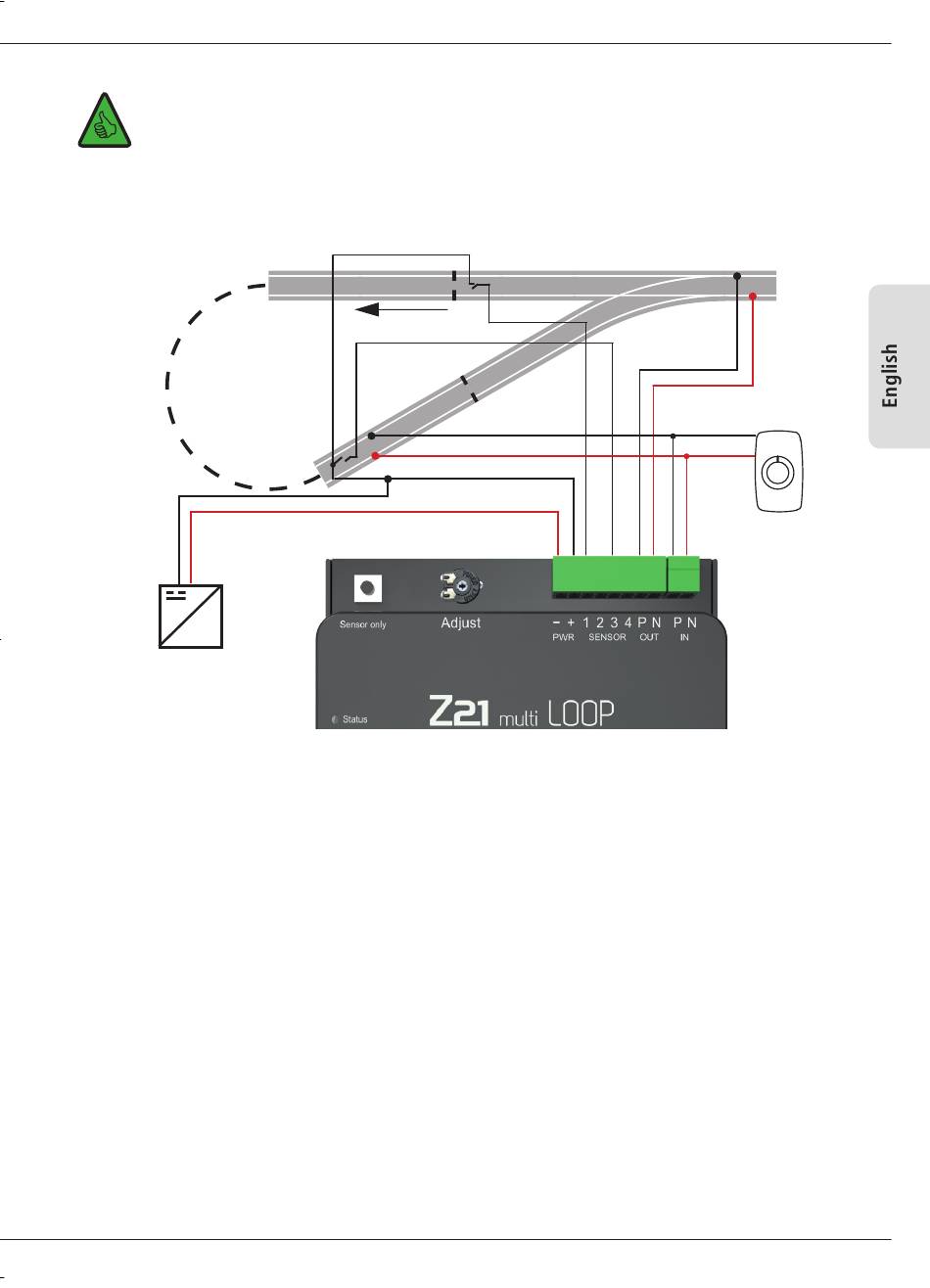

Tip: Alternatively the use of track contacts instead of sensor tracks is possible.
N

Configuration

The short circuit detection of the Z21 multi Loop can be activated or deactivated using the button. You
®
can switch between the modi by pressing the button for longer than 3 seconds. The "Sensor only" LED
shows whether the short circuit detection is activated or not.
The "Sensor only" LED is illuminated white = the short circuit detection is deactivated.
The "Sensor only" LED is not illuminated = the short circuit detection is activated.
The sensitivity of the short circuit detection can be finely adjusted using a potentiometer.
21
