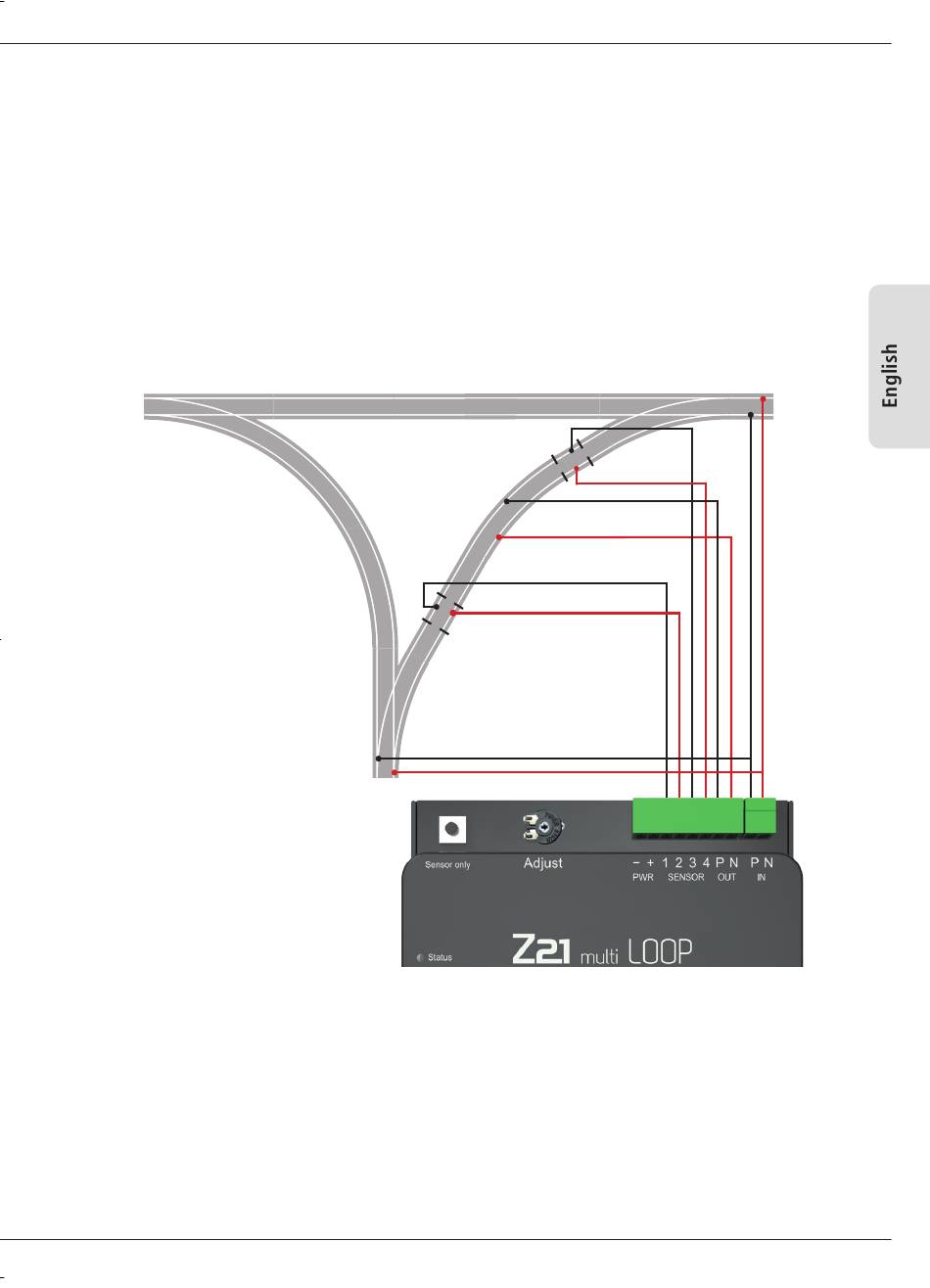

Digital short-circuit free triangular junction with sensor tracks

A triangular junction is also a track form that makes it necessary to use a Z21 multi LOOP. Therefore one
®
side of the triangle must provide an electrically isolated section. The choice of operation is with sensor
tracks or short circuit detection. Please observe the instructions for the first two switching examples.
