INSTALLATION INSTRUCTIONS (optional)

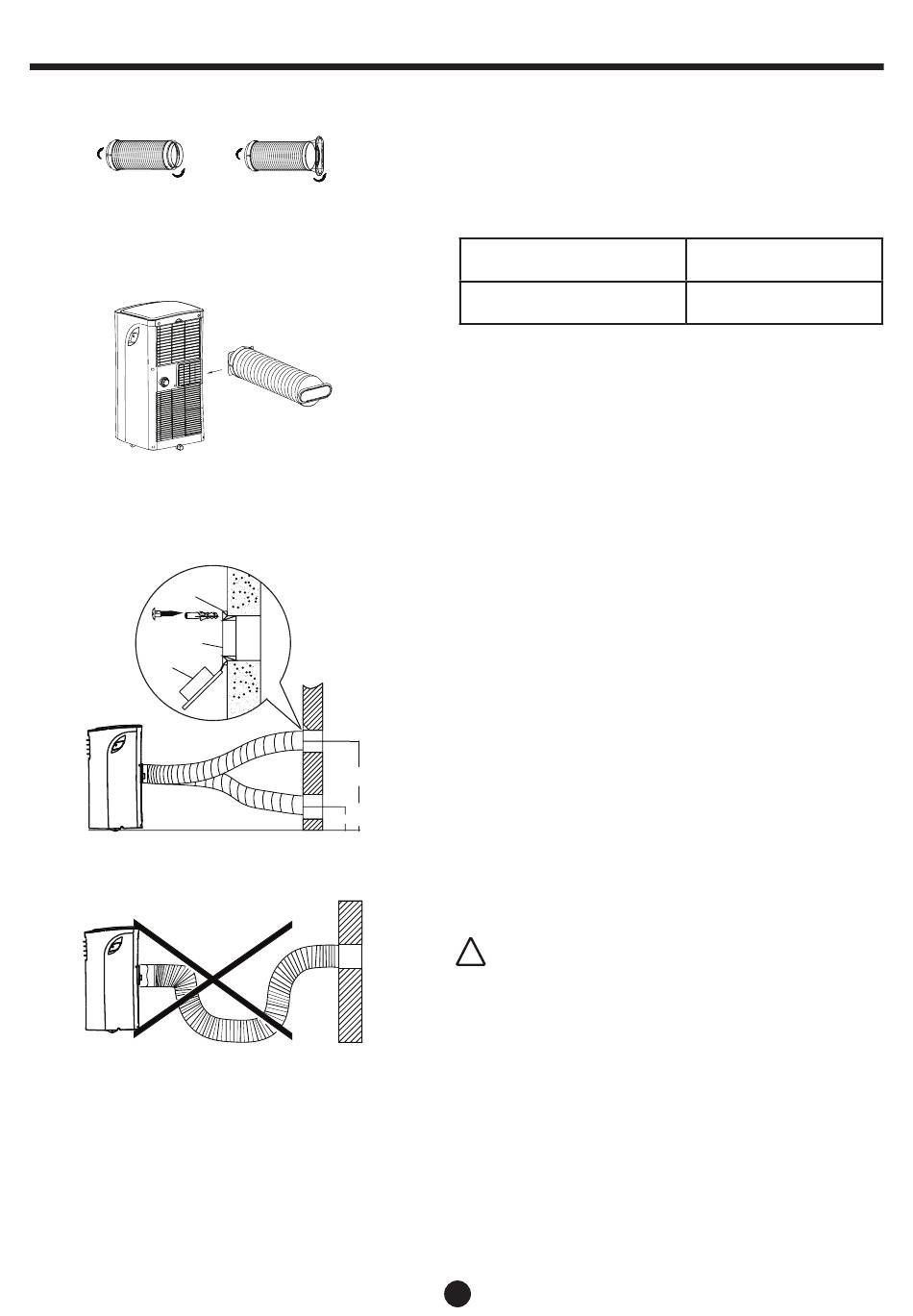

Fig.16
Expansion plug
position
Adaptor A
Adaptor
cap
Fig.17
Fig.18
max 120CM
max 30CM
Fig.19
Fig.20

Exhaust hose installation:

The exhaust hose and adaptor must be installed or
removed in accordance with the usage mode.
COOL, AUTO mode
FAN, DEHUMIDIIFY mode Remove
1. Install the window Exhaust adaptor B onto the exhaust
hose as shown in Fig.16. or Fig.17. Refer to the previ-
ous pages for window kit installation.
2. Push the Exhaust hose into the air outlet opening using
the arrow direction (See Fig. 18).
The exhaust hose can be installed into the wall
(Not applicable to the units without adaptor A, expan-
sion plugs and wooden screws of Accessories).
1. Prepare a hole in the wall. Install the wall Exhaust adap-
tor A onto the wall (outside) by using the 4 expansion
plugs and wooden screws, be sure to secure properly.
(See Fig.19)
2. Attach the Exhaust hose installed adaptor B (round
mouth) to wall Exhaust adaptor A.
Note:
IMPORTANT: Use the adaptor cap to cover the hole
when not in use.
The duct can be compressed or extended according
to the installation requirements, but it is best to keep
the duct length to a minimum.
DO NOT OVER BEND THE DUCT (SEE Fig.20)
!
CAUTION:
Make sure there are no obstacles around the air
outlet of the exhaust hose (in the range of 500mm) to
ensure the exhaust system works properly.
14
Install
