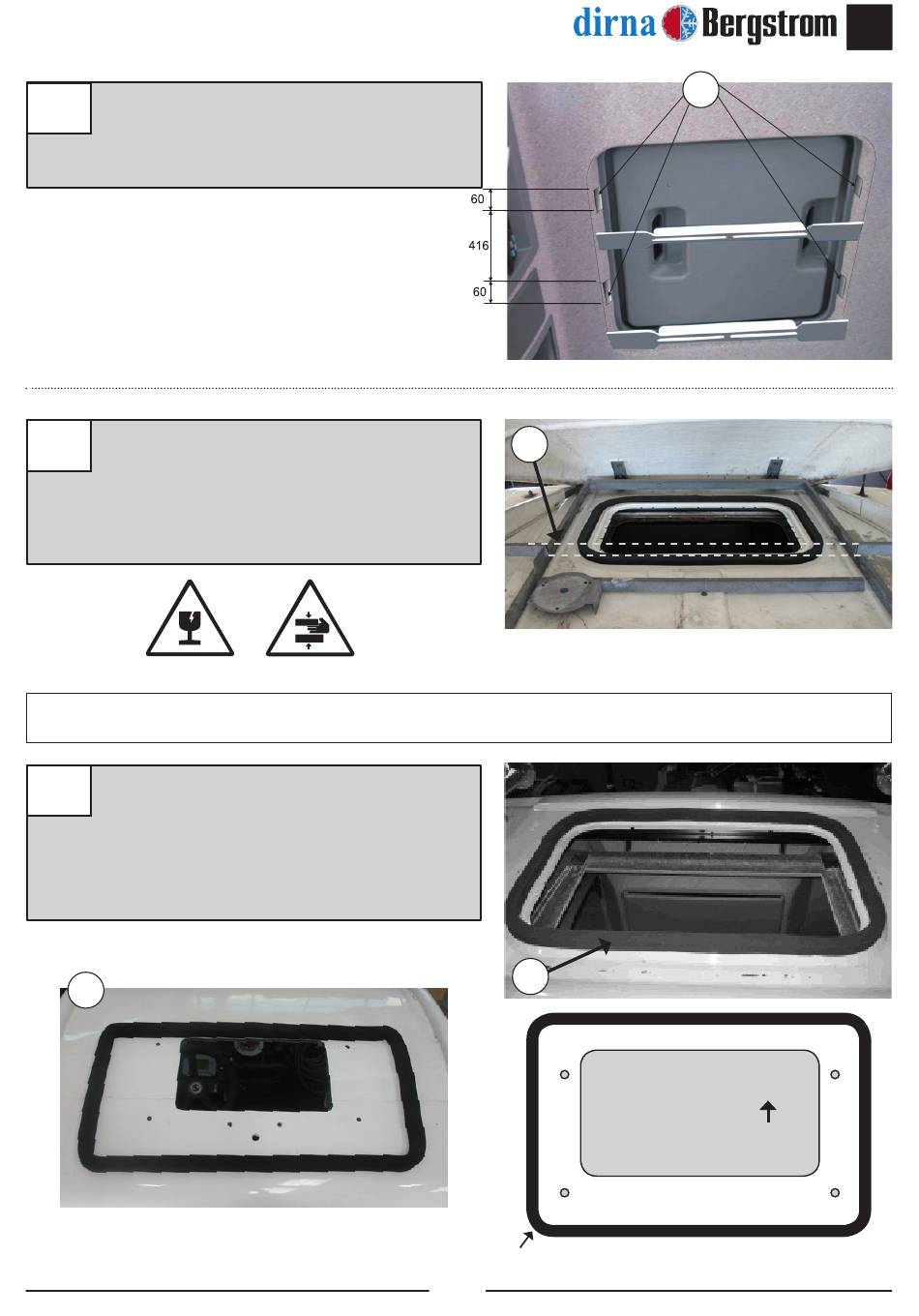

In some models, the attachment supports
3
cannot be inserted through a gap in the
upholstery, meaning it is necessary to cut at
the measurements shown in the photo.
If the vehicle is fitted with a spoiler with the
4
central bar, cut the bar shown along the dotted
line to install the unit.
This operation is always carried out with the
authorisation of the customer.
Attach the EPDM seal around the hatch gap or
4a
the cut made (see the details to cut the ends
of the seal joint).
Caution: Attach the seal around the boreholes
in the cut made.
4a
4

ALL MODELS

4a
EPDM seal
23
3
Direction of travel
