Attaching the Based Brackets to the Wall
4

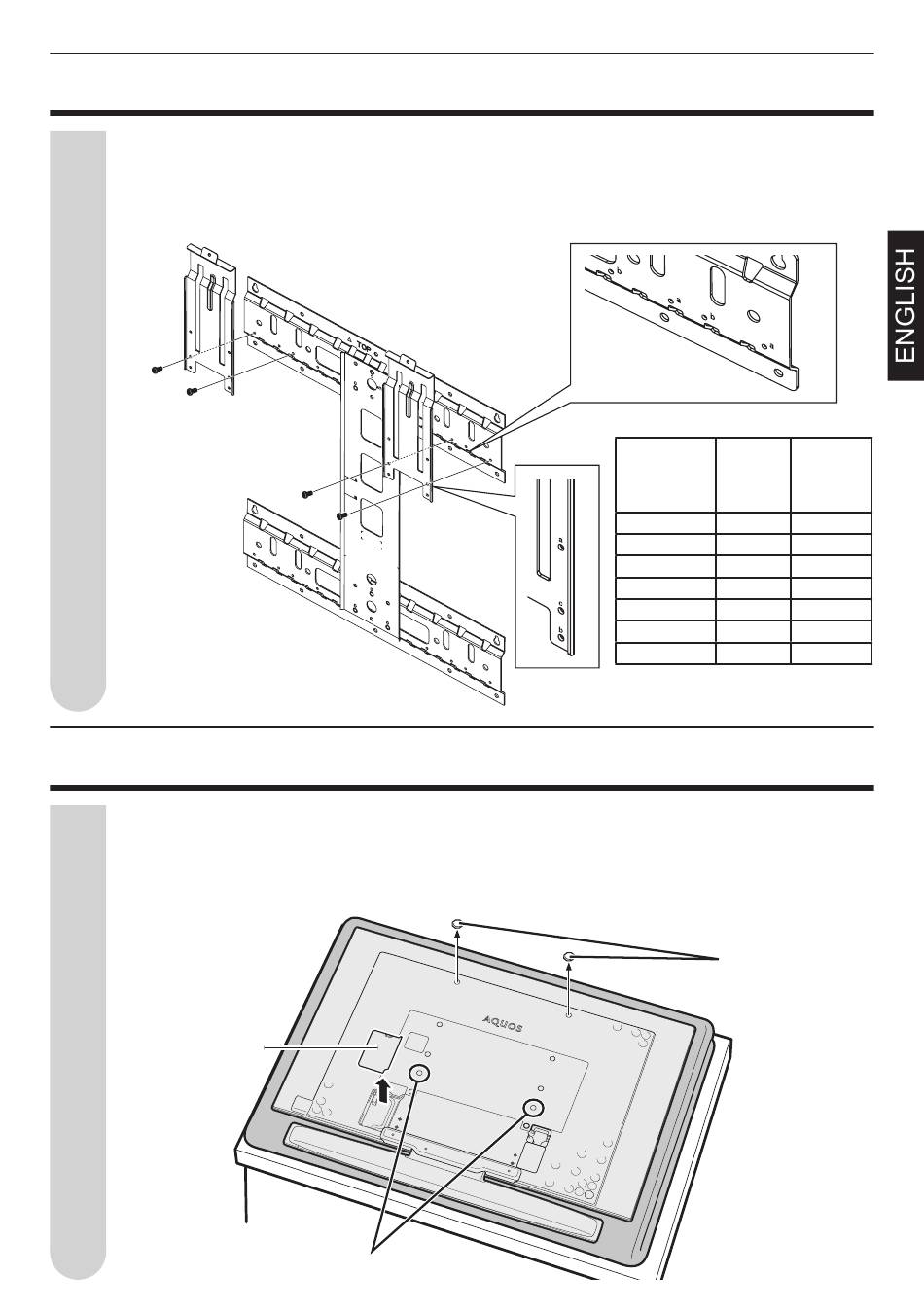

Attaching the mounting brackets (for wall) to the based brackets
Align the 4 attachment bracket screw holes on the based brackets and the mounting brackets
(for wall) and attach them together using 4 screws (D) (M4, 6 mm). Bracket mounting
positions differ according to LCD color TV model. (See table below.)

Attaching the Brackets to the LCD Color TV

1
Remove the caps and the terminal cover from the back of the LCD color TV
Place the LCD color TV on a blanket or other thick, soft cloth, and remove the 2 caps
indicated, 2 screws, and the terminal cover from the back. (Store the caps and screws in a
safe place after removing them.)
Terminal cover
Screws
Stamps on based bracket A
Model
LC-65XS1
LC-65XS1U
LC-65XS1E
LC-65XS1RU
LC-65XS1X
LC-65XS1M
LCD-65XS1A
Stamps on mounting bracket
(for wall)
(Continued)
Stamp on
Stamp
mounting
on based
bracket
bracket A
(for wall)
a b
a b
a b
a b
a b
a b
a b
Caps
E-5
