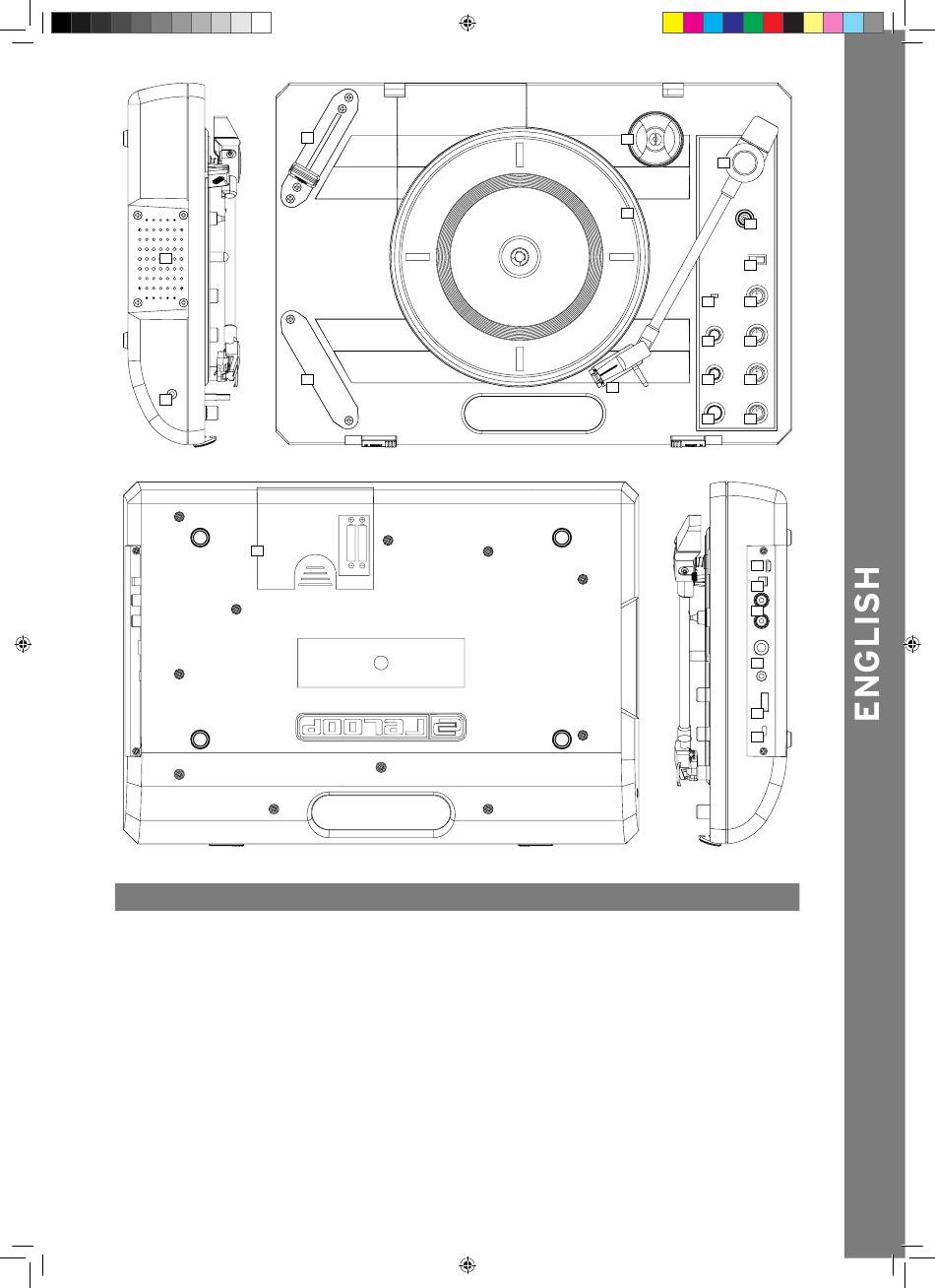

I. DESIGNATION
1. Play/Stop Button
2. Volume Dial
3. Bluetooth Pairing Button
4. Aux-In Volume Dial
5. USB Rec. Button
6. Tone Adjustment Dial
7. Power LED
8. Pitch Dial
9. Speed Switch (33/45/78)
10. Crossfader
11. 7'' Single Adaptor
12. Tone Arm with Cartridge
13. Platter
14. Tone Arm Rest
15. Tone Arm Holder
IM_SPiN_en.indd 9
10
10
22
11
13
15
16. Kensington Lock Slot
17. USB Rec. Port
18. Headphones Out (3.5 & 6.3 mm Jack)
19. Master Out (RCA)
20. On/Off Button
21. USB PSU Port
22. Battery Compartment
23. Aux In (3.5 mm Jack)
24. Speaker
25. Slipmat
26. Scratch Record
27. Dust Cover
28. Dust Cover Lock (transport protection)
29. Carrying Handle
