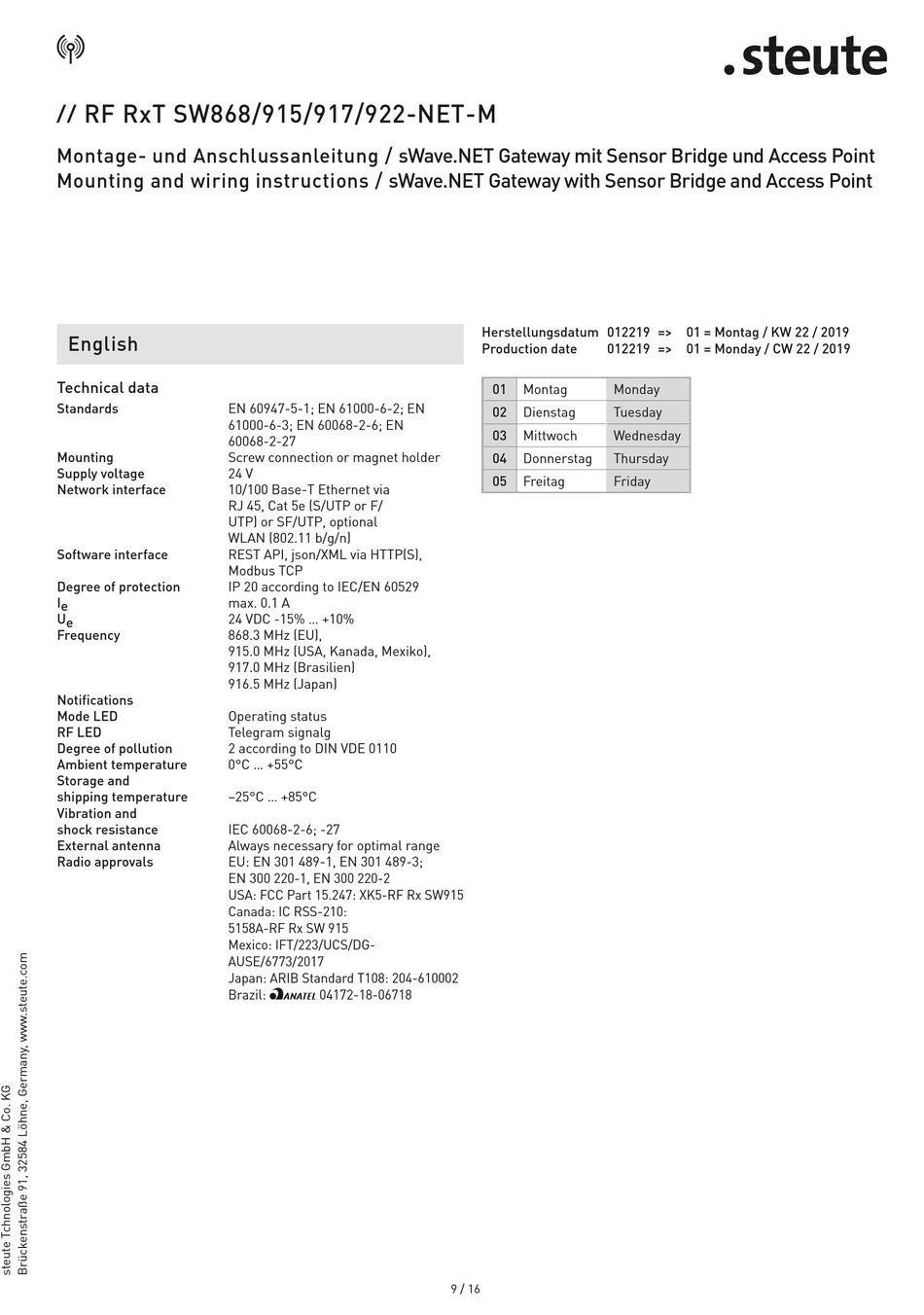

steute RF RxT SW868-NET-M Montage- Und Anschlussanleitung Seite 9

RF RxT SW868/915/917/922-NET-M
//
Montage- und Anschlussanleitung / sWave.NET Gateway mit Sensor Bridge und Access Point
Mounting and wiring instructions / sWave.NET Gateway with Sensor Bridge and Access Point
English
Technical data
Standards EN 60947-5-1; EN 61000-6-2; EN
61000-6-3; EN 60068-2-6; EN
60068-2-27
Mounting Screw connection or magnet holder
Supply voltage 24 V
Network interface 10/100 Base-T Ethernet via
RJ 45, Cat 5e (S/UTP or F/
UTP) or SF/UTP, optional
WLAN (802.11 b/g/n)
Software interface REST API, json/XML via HTTP(S),
Modbus TCP
Degree of protection IP 20 according to IEC/EN 60529
I e max. 0.1 A
U e 24 VDC -15% ... +10%
Frequency 868.3 MHz (EU),
915.0 MHz (USA, Kanada, Mexiko),
917.0 MHz (Brasilien)
916.5 MHz (Japan)
Notifications
Mode LED Operating status
RF LED Telegram signalg
Degree of pollution 2 according to DIN VDE 0110
Ambient temperature 0°C ... +55°C
Storage and
shipping temperature –25°C ... +85°C
Vibration and
shock resistance IEC 60068-2-6; -27
External antenna Always necessary for optimal range
Radio approvals EU: EN 301 489-1, EN 301 489-3;
EN 300 220-1, EN 300 220-2
USA: FCC Part 15.247: XK5-RF Rx SW915
Canada: IC RSS-210:
5158A-RF Rx SW 915
Mexico: IFT/223/UCS/DG-
AUSE/6773/2017
Japan: ARIB Standard T108: 204-610002
Brazil: 04172-18-06718
ö
Herstellungsdatum 012219 => 01 = Montag / KW 22 / 2019
Production date 012219 => 01 = Monday / CW 22 / 2019
01 Montag Monday
02 Dienstag Tuesday
03 Mittwoch Wednesday
04 Donnerstag Thursday
05 Freitag Friday
9 / 16
