3. Layout, Connections & Jumper Settings

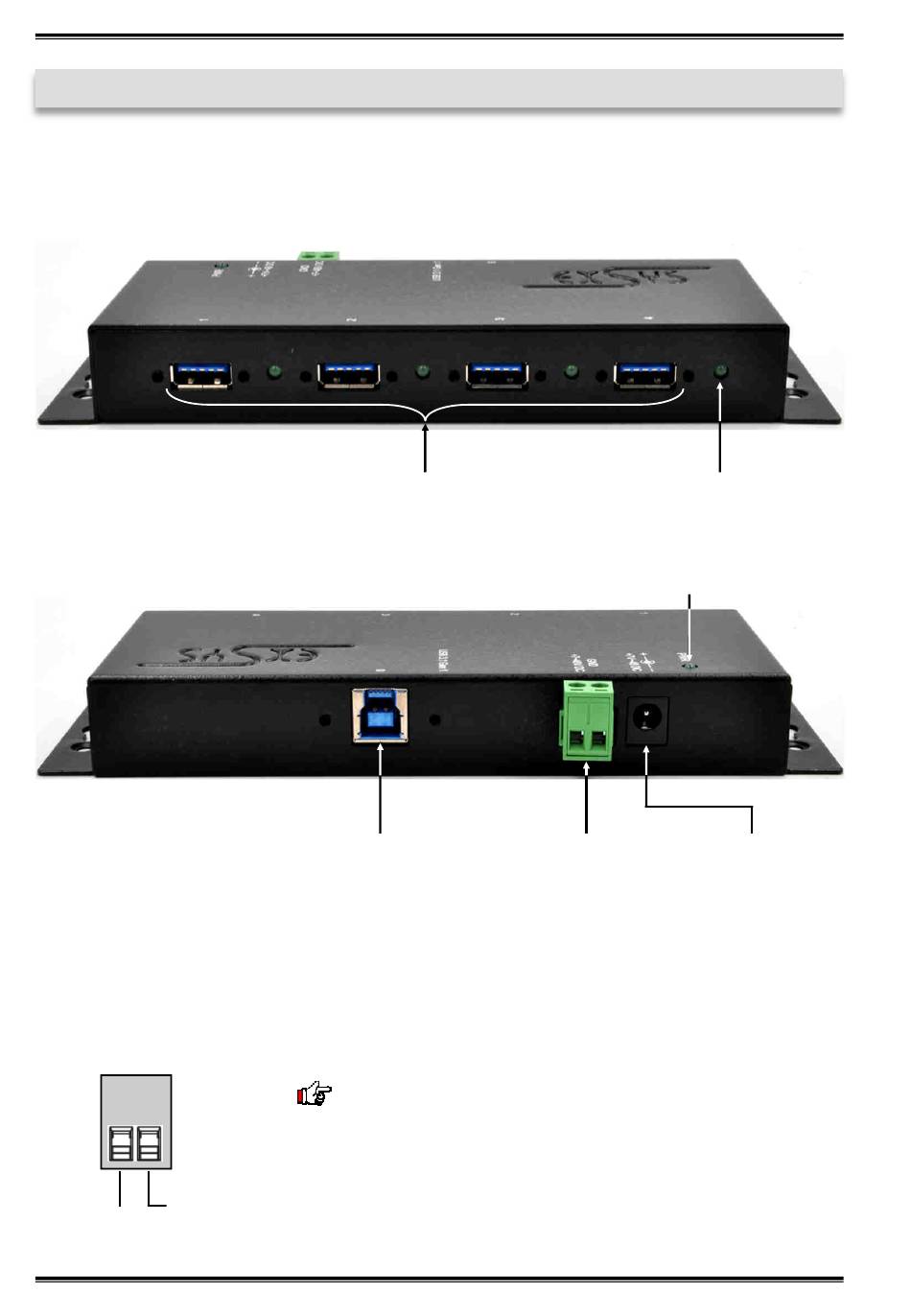

3.1 Layout
Front:
Back:
3.2 Connections
+7V - 48V T-Block:
GND (Ground)
+7V - 48V
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
4x USB 3.1 (Gen1)
Downstream A-Port
1x USB 3.1 (Gen1)
Upstream B-Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
10
for each Port
Power LED
7-48V T-Block
for optional external
Power Supply
EX-1183HMVS
Status LED
7-48V Connector
for included external
Power Supply
