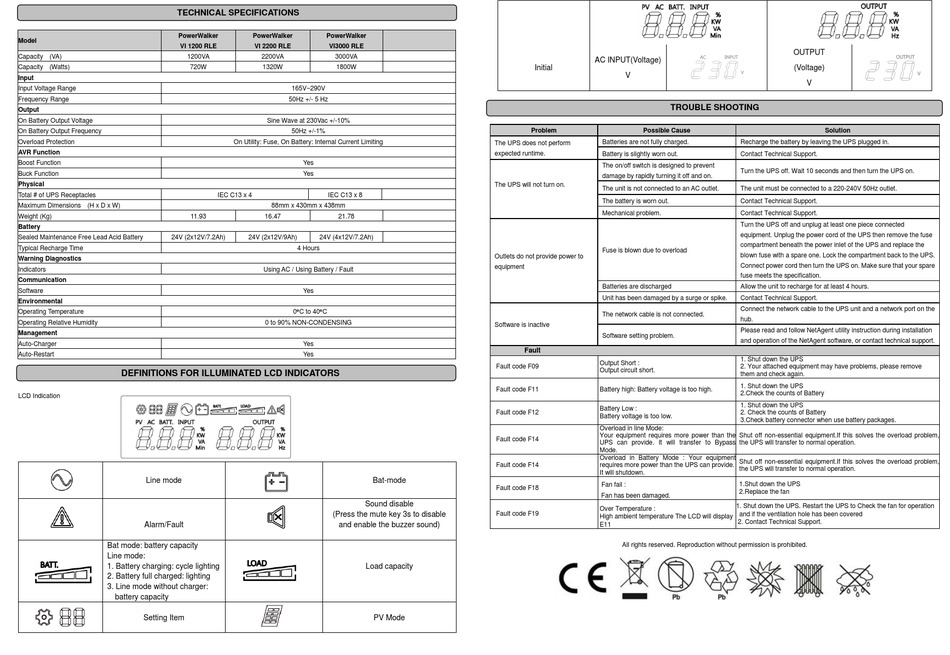

TECHNICAL SPECIFICATIONS
PowerWalker
Model
VI 1200 RLE
Capacity (VA) 1200VA
Capacity (Watts) 720W
Input
Input Voltage Range
Frequency Range
Output
On Battery Output Voltage
On Battery Output Frequency
Overload Protection
AVR Function
Boost Function
Buck Function
Physical
Total # of UPS Receptacles
Maximum Dimensions (H x D x W)
Weight (Kg) 11.93
Battery
Sealed Maintenance Free Lead Acid Battery 24V (2x12V/7.2Ah)
Typical Recharge Time
Warning Diagnostics
Indicators
Communication
Software
Environmental
Operating Temperature
Operating Relative Humidity
Management
Auto-Charger
Auto-Restart
DEFINITIONS FOR ILLUMINATED LCD INDICATORS
LCD Indication
Line mode
Alarm/Fault
Bat mode: battery capacity
Line mode:
1. Battery charging: cycle lighting
2. Battery full charged: lighting
3. Line mode without charger:
battery capacity
Setting Item
PowerWalker PowerWalker
VI 2200 RLE VI3000 RLE
2200VA 3000VA
1320W 1800W
165V~290V
50Hz +/- 5 Hz
Sine Wave at 230Vac +/-10%
50Hz +/-1%
On Utility: Fuse, On Battery: Internal Current Limiting
Yes
Yes
IEC C13 x 4 IEC C13 x 8
88mm x 430mm x 438mm
16.47 21.78
24V (2x12V/9Ah) 24V (4x12V/7.2Ah)
4 Hours
Using AC / Using Battery / Fault
Yes
0C to 40C
0 to 90% NON-CONDENSING
Yes
Yes
Bat-mode
Sound disable
(Press the mute key 3s to disable
and enable the buzzer sound)
Load capacity
PV Mode
AC INPUT(Voltage)
Initial
V
TROUBLE SHOOTING
Problem Possible Cause
Batteries are not fully charged.
The UPS does not perform
expected runtime. Battery is slightly worn out.
The on/off switch is designed to prevent
damage by rapidly turning it off and on.
The UPS will not turn on.
The unit is not connected to an AC outlet.
The battery is worn out.
Mechanical problem.
Fuse is blown due to overload
Outlets do not provide power to
equipment
Batteries are discharged
Unit has been damaged by a surge or spike.
The network cable is not connected.
Software is inactive
Software setting problem.
Fault
Output Short :
Fault code F09
Output circuit short.
Fault code F11 Battery high: Battery voltage is too high.
Battery Low :
Fault code F12
Battery voltage is too low.
Overload in line Mode:
Your equipment requires more power than the
Fault code F14
UPS can provide. It will transfer to Bypass
Mode.
Overload in Battery Mode : Your equipment
Fault code F14 requires more power than the UPS can provide.
It will shutdown.
Fan fail :
Fault code F18
Fan has been damaged.
Over Temperature :
Fault code F19
High ambient temperature The LCD will display
E11
All rights reserved. Reproduction without permission is prohibited.
OUTPUT
(Voltage)
V
Solution
Recharge the battery by leaving the UPS plugged in.
Contact Technical Support.
Turn the UPS off. Wait 10 seconds and then turn the UPS on.
The unit must be connected to a 220-240V 50Hz outlet.
Contact Technical Support.
Contact Technical Support.
Turn the UPS off and unplug at least one piece connected
equipment. Unplug the power cord of the UPS then remove the fuse
compartment beneath the power inlet of the UPS and replace the
blown fuse with a spare one. Lock the compartment back to the UPS.
Connect power cord then turn the UPS on. Make sure that your spare
fuse meets the specification.
Allow the unit to recharge for at least 4 hours.
Contact Technical Support.
Connect the network cable to the UPS unit and a network port on the
hub.
Please read and follow NetAgent utility instruction during installation
and operation of the NetAgent software, or contact technical support.
1. Shut down the UPS
2. Your attached equipment may have problems, please remove
them and check again.
1. Shut down the UPS
2.Check the counts of Battery
1. Shut down the UPS
2. Check the counts of Battery
3.Check battery connector when use battery packages.
Shut off non-essential equipment.If this solves the overload problem,
the UPS will transfer to normal operation.
Shut off non-essential equipment.If this solves the overload problem,
the UPS will transfer to normal operation.
1.Shut down the UPS
2.Replace the fan
1. Shut down the UPS. Restart the UPS to Check the fan for operation
and if the ventilation hole has been covered
2. Contact Technical Support.
