Classic Plus Series

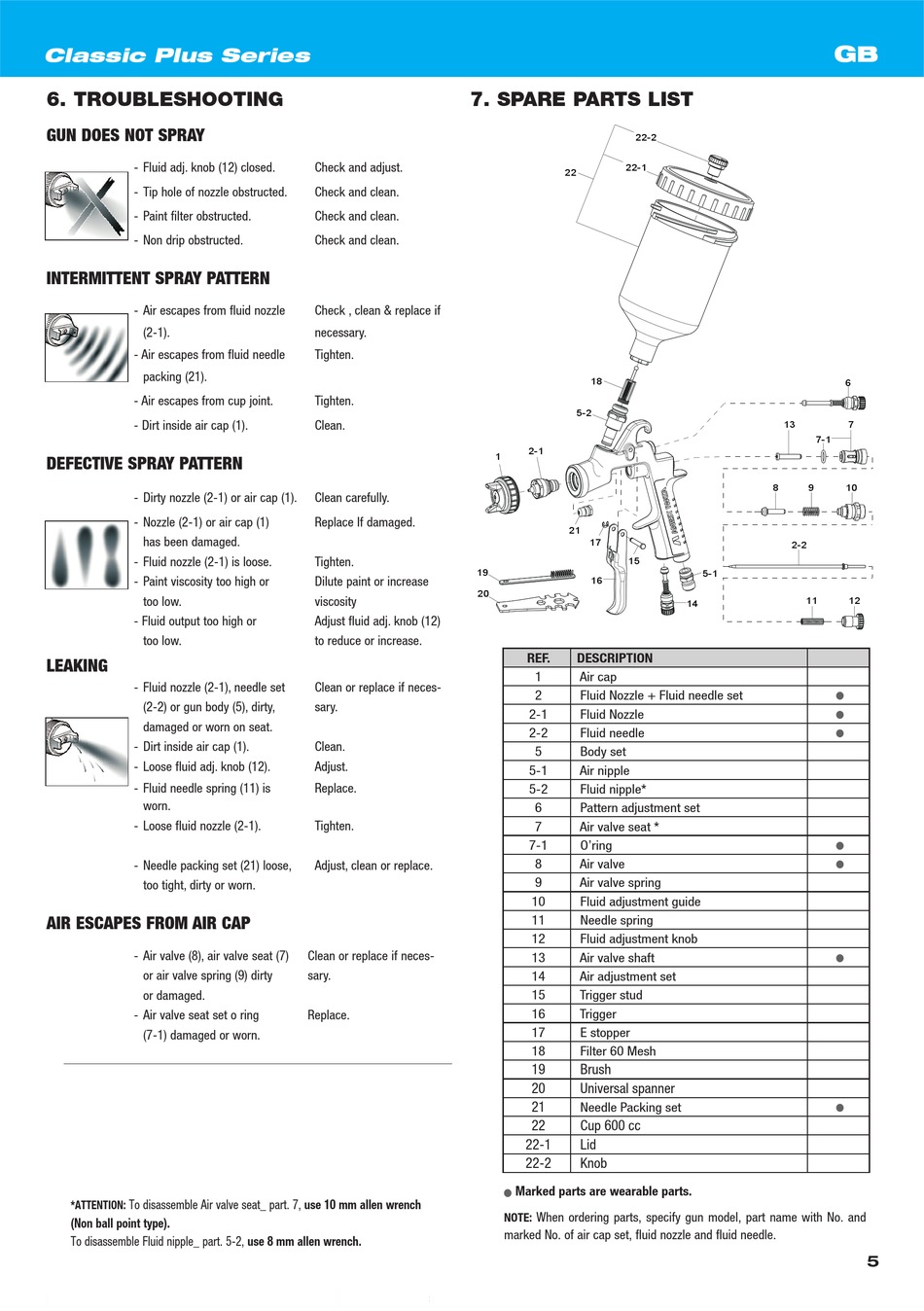

6. TROUBLESHOOTING

GUN DOES NOT SPRAY
- Fluid adj. knob (12) closed.
- Tip hole of nozzle obstructed.
- Paint filter obstructed.
- Non drip obstructed.
INTERMITTENT SPRAY PATTERN
- Air escapes from fluid nozzle
(2-1).
- Air escapes from fluid needle
packing (21).
- Air escapes from cup joint.
- Dirt inside air cap (1).
DEFECTIVE SPRAY PATTERN
- Dirty nozzle (2-1) or air cap (1).
- Nozzle (2-1) or air cap (1)
has been damaged.
- Fluid nozzle (2-1) is loose.
- Paint viscosity too high or
too low.
- Fluid output too high or
too low.
LEAKING
- Fluid nozzle (2-1), needle set
(2-2) or gun body (5), dirty,
damaged or worn on seat.
- Dirt inside air cap (1).
- Loose fluid adj. knob (12).
- Fluid needle spring (11) is
worn.
- Loose fluid nozzle (2-1).
- Needle packing set (21) loose,
too tight, dirty or worn.
AIR ESCAPES FROM AIR CAP
- Air valve (8), air valve seat (7)
or air valve spring (9) dirty
or damaged.
- Air valve seat set o ring
(7-1) damaged or worn.
To disassemble Air valve seat_ part. 7, use 10 mm allen wrench
*ATTENTION:
(Non ball point type).
To disassemble Fluid nipple_ part. 5-2, use 8 mm allen wrench.

7. SPARE PARTS LIST

Check and adjust.
Check and clean.
Check and clean.
Check and clean.
Check , clean & replace if
necessary.
Tighten.
Tighten.
Clean.
Clean carefully.
Replace If damaged.
Tighten.
19
Dilute paint or increase
20
viscosity
Adjust fluid adj. knob (12)
to reduce or increase.
Clean or replace if neces-
sary.
Clean.
Adjust.
Replace.
Tighten.
Adjust, clean or replace.
Clean or replace if neces-
sary.
Replace.
22-2
22-1
22
18
5-2
2-1
1
21
17
15
16
REF. DESCRIPTION
1 Air cap
2 Fluid Nozzle + Fluid needle set
2-1 Fluid Nozzle
2-2 Fluid needle
5 Body set
5-1 Air nipple
5-2 Fluid nipple*
6 Pattern adjustment set
7 Air valve seat *
7-1 O'ring
8 Air valve
9 Air valve spring
10 Fluid adjustment guide
11 Needle spring
12 Fluid adjustment knob
13 Air valve shaft
14 Air adjustment set
15 Trigger stud
16 Trigger
17 E stopper
18 Filter 60 Mesh
19 Brush
20 Universal spanner
21
Needle Packing set
22 Cup 600 cc
22-1 Lid
22-2 Knob
Marked parts are wearable parts.
n
NOTE: When ordering parts, specify gun model, part name with No. and
marked No. of air cap set, fluid nozzle and fluid needle.
GB
6
13 7
7-1
8 9 10
2-2
5-1
11 12
14
n
n
n
n
n
n
n
5
