- Mount set 2 in the same way as set 5 is mounted.

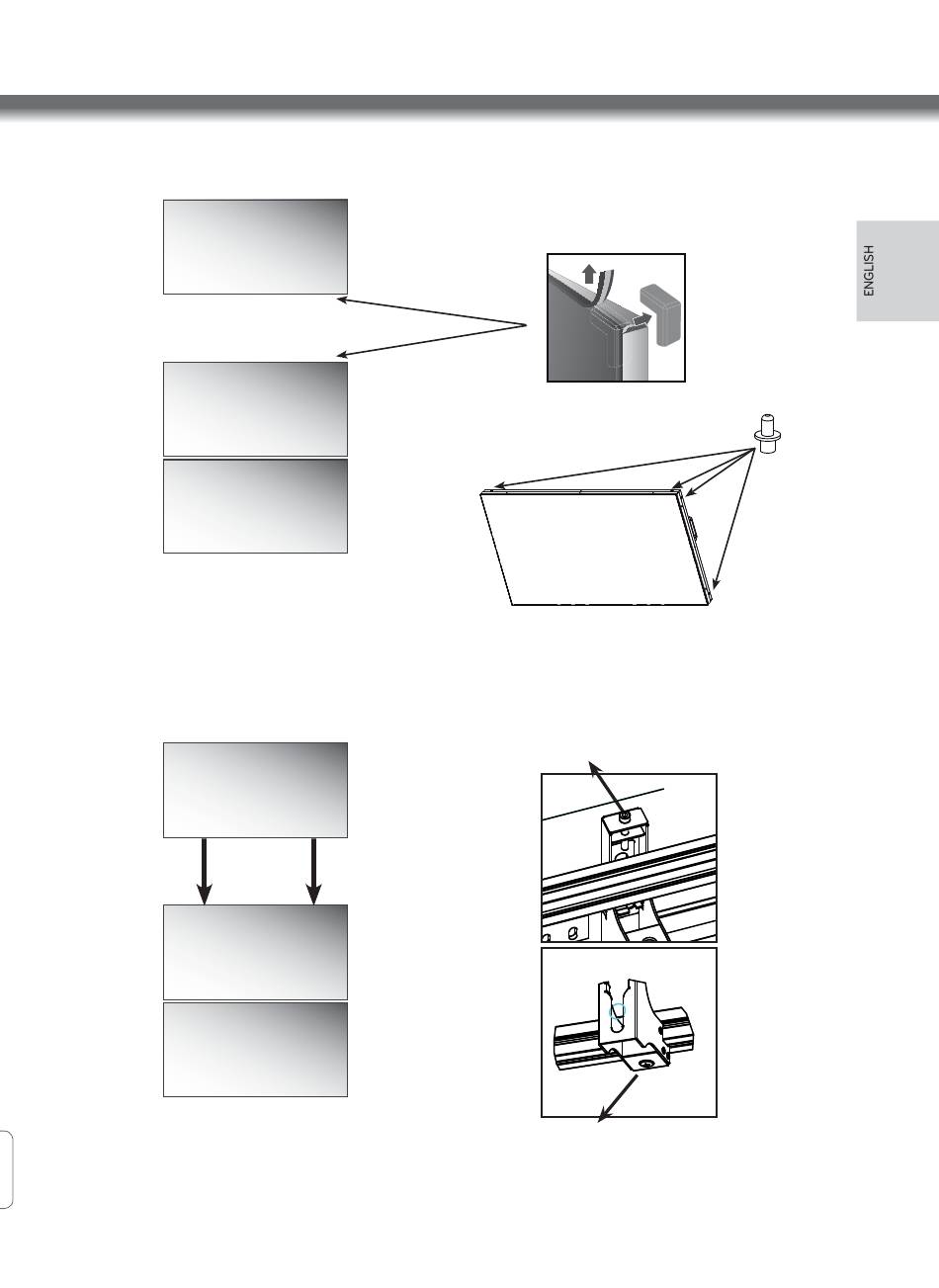

4. Mount set 2, then remove the module-protecting Cover attached between set 5 and 2.
2
5
8
5. Loosen the horizontal alignment screws on bracket 2, then attach set 2 to set 5.
(Caution: Loosen the right and left horizontal alignment screws gently in turn to prevent the set from tilting and
causing damage.)
Fix the right and left slides of set 2 using the right/left fi xing screws.
2
5
8
Remove the module-protecting Cover.
(The protective Cover is attached on all four sides; only
remove fi rst the Cover on the sides where the sets meet.)
Insert Guide pins as shown in the fi gure below.
<Horizontal Alignment Screw>
Loosen the screw to lower the set.
(Loosen the right and left screws gently in turn.)
<Right/Left Fixing Screw>
Tighten the screws to fix the left and right slides.
11
