Beim Auftreten eines Fehlers im BUS-2 Ring wird nur das defekte Teilstück abgetrennt, alle übrigen Teilnehmer bleiben voll funktionsfähig. Einsatz im Stich: Werden Trennmodule in einem BUS-2 Stich eingesetzt, bleibt der Bus bis zum Trennmodul vor der Fehlerstelle voll funktionsfähig.
Montage-Anschluss-Anleitung Trennmodul BUS-2 Funktion Das Trennmodul BUS-2 wird in Serie zu den anderen BUS-2 Teilnehmern in den Bus eingebaut. Dadurch ist es möglich, den Bus an dieser Stelle aufzutrennen. Werden mehrere Trennmodule in einen Ring eingebaut, können Teilstücke des Rings ausgeblendet werden.
Jedes Trennmodul ist ein eigenständiger BUS-2 Teilnehmer und belegt somit eine eigene Adresse. Insgesamt können am BUS-2 bis zu 64 Adressen vergeben werden. Die Adressreihenfolge ist beliebig. Es dürfen nicht mehr als 8 Trennmodule pro Ring oder Stich eingesetzt werden.
(Kapitel Leitungen) zu entnehmen. Weiterhin ist darauf hinzuweisen, dass der Schirmanschluss möglichst kurz ausgeführt wird, da sonst die Gefahr eines unbeabsichtigten Kurzschlusses besteht. Hinweis: Bei der BUS-2- Anschlusstechnik darf kein Abschlusswiderstand angebracht werden. BUS-2-Modul für Trennmodul BUS-2 Ringverdrahtung BUS-2...
Montage-Anschluss-Anleitung Trennmodul BUS-2 Anschlussplan Deckelkontakt BUS-2 Adresse Die beiden BUS-2 Anschlüsse sind gleichberechtigt, so dass nicht auf Ein- und Ausgang geachtet werden muss. BUS-2 BUS-2 Schirm Anschluss 1 Anschluss 2 Technische Daten Betriebsnennspannung U_b 12 V DC Betriebsspannungsbereich 10 V bis 15 V DC Stromaufnahme bei U_b = 12 V DC <...
Seite 7
Montage-Anschluss-Anleitung Trennmodul BUS-2 Notizen...
Seite 9

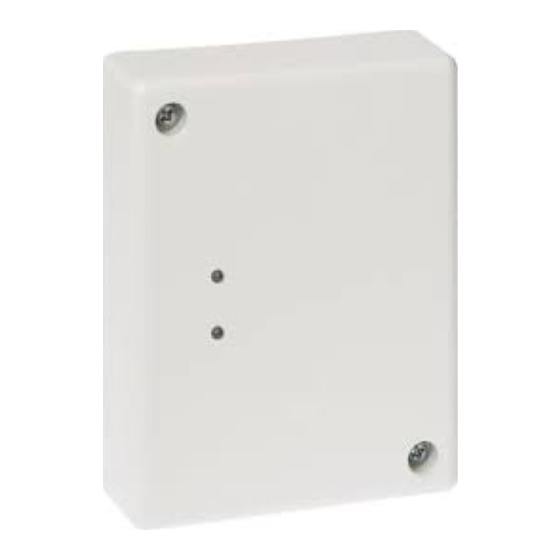

Mounting and Connection Instructions Separating Module BUS-2 Item no. 013128 P00166-10-002-03 Subject to change G106006 without notice 2009-11-09...
If an error occurs in the BUS-2 loop, the defective part is disconnected and all remaining users continue to function fully. Use in the stub: If separating modules are used in a BUS-2 stub, the bus continues to function fully up to the separating module before the point where the fault occurred.
BUS-2 Function The separating module BUS-2 is installed between the other BUS-2 users in the bus so that the bus can be disconnected at this point. If several separating modules are installed in one loop, parts of the loop can be disconnected.
Every separating module is an independent BUS-2 user and thus has its own address. A total of 64 addresses can be allocated at BUS-2. The address sequence is random. Max. 8 separating modules may be used per loop or stub.
Addresss switch S1 BUS-2 address The DIP switches (address switch S1) in the separating module are for setting the BUS-2 user address. The individual codes can be found in the programming protocol of the intrusion detection central control unit. Possible address range: 0 to 63 Ensure that addresses are not allocated twice in the bus.
Mounting and Connection Instructions - Separating Module BUS-2 Connection diagram Cover contact BUS-2 address As both BUS-2 connections are equal, attention must not be paid to the input and output. Shield BUS-2 BUS-2 Connection 1 Connection 2 Technical data Rated operating voltage U_b...
Seite 15
Mounting and Connection Instructions - Separating Module BUS-2 Notes...
