PULSAR 1.3
1 PL 110 FA / PL 112 FA / PL 115 FA
Every powered PULSAR mid/ high unit features three input channels (A, B,
C). They may be operated in parallel and adjusted separately.

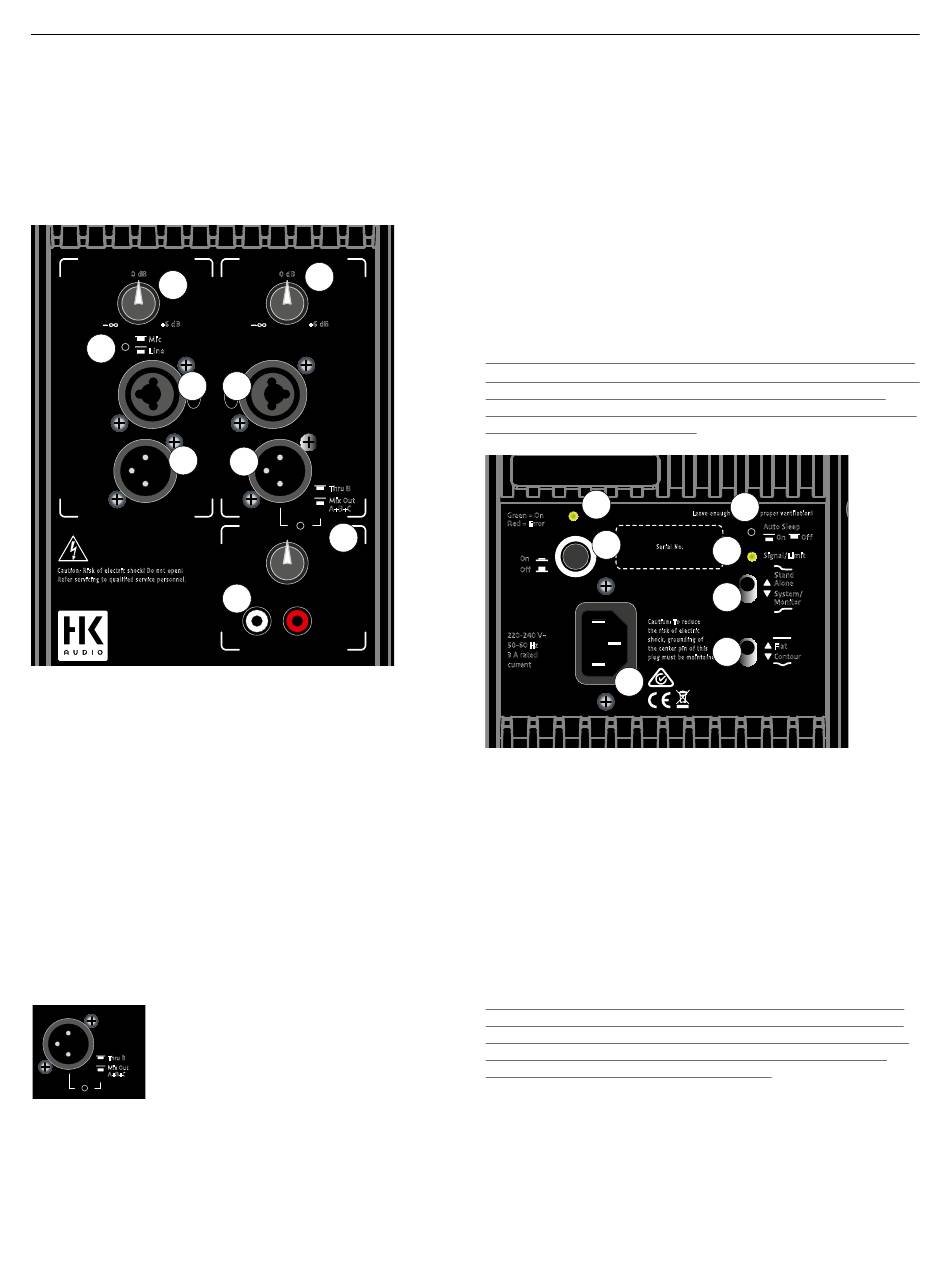

1.1 Control Features

A
1
0 dB
Gain
+6 dB
2
Mic
Line
3
Input
4
Thru A
Caution: Risk of electric shock! Do not open!
Refer servicing to qualified service personnel.
1 Gain
Use these controls to adjust the input levels of Inputs A, B and C.
2 Mic/Line switch (Channel A only)
Set this button to Mic when connecting a microphone. This boosts the gain
level 30 dB to adjust the input for microphones.
3 Input A/B
This electronically balanced, combo XLR/ ¼" (6.3 mm) jack accepts the
input signal.
4 Thru A
Thru A is a parallel, balanced XLR output that routes input signals from
Input A through to another destination, for example, a powered monitor.
5 Out (Thru B / Mix Out)
Channel B Out is a balanced XLR output that serves
the following two purposes:
Out
Thru B
Mix Out
A+B+C
Button set to Thru B:
Out is confi gured as a parallel output used exclusively to route input signals
from Input B, for instance, to a powered monitor.
Button set to Mix Out A+B+C:
In Mix Out mode, this output routes out a summed composite of input
signals A, B and C. You can adjust individual signals within this mix using
the respective Gain knobs.
4
1
B
0 dB
Gain
+6 dB
3
Input
5
Out
Thru B
Mix Out
A+B+C
1
C
Gain
6
Input
L R
6 Input (Channel C)
These RCA jacks accept a stereo input signal. The left and right channels
are summed to mono.
7 Status LED
The dual-color LED indicates the status of the powered PULSAR speaker
(green = power on, red = error).
8 Power
This on/off button powers the PULSAR speaker up and down. The status
LED lights up green when power is on.
9 Mains
Use the factory-included IEC power cord to connect this socket to a wall
outlet.
Heads up! Around 0.5 watts of power are consumed when the unit is off .
Note: A powered PULSAR mid/ high unit is equipped with a V-Lock mains
socket. If you use a VOLEX locking power cord or another optionally
available brand with the same design, you can fi x the power cord in place
to prevent accidental disconnection
7
Green = On
Red = Error
8
Power
Serial No.
On
Off
Mains
Caution: To reduce
the risk of electric
220-240 V~
shock, grounding of
50-60 Hz
the center pin of this
3 A rated
plug must be maintained.
current
9
10 Auto Sleep
PULSAR mid/ high units' Auto Sleep is defeatable; that is, it may
be switched on and off . The built-in amp switches to standby mode
(Consumption around 0.5 watts) when the button is set to On and the unit
does not receive a signal for 180 minutes. To power the PULSAR enclosure
back up again, simply set its Power button to Off for fi ve seconds and then
back to On. The mid/ high units will remain up and running if you disable
Auto Sleep by setting this button to Off .
11 Signal / Limit
This dual-color LED remains off until the unit gets a signal. It lights up
green to indicate incoming signals and red to indicate signal peaks.
Heads up! This is not a clip LED. It's okay if it lights up red briefl y every
now and then. This tells you that the limiters have engaged. If the LED
always lights up red at peaks but no signal is audible, check the signal's
input level and reduce the volume (gain) on your cabinet. If this LED
lights up red continuously, an error has occurred.
10
Leave enough space for proper ventilation!
Auto Sleep
11 On Off
Signal/Limit
Stand
Alone
12
System/
Monitor
13
Flat
Contour
