HK Audio PULSAR PL 115 FA Montageanleitung

Installation Instructions 1.0
• Please read these instructions before installation and keep them for later reference.
Converting the cabinet into
a floor wedge
• First remove the two M8 hex-head screws
from one of the two side panels.
• Use these screws to attach the two threaded
sleeves (2) to the side panel.
• Now the cabinet is ready to accept the
two monitor poles.

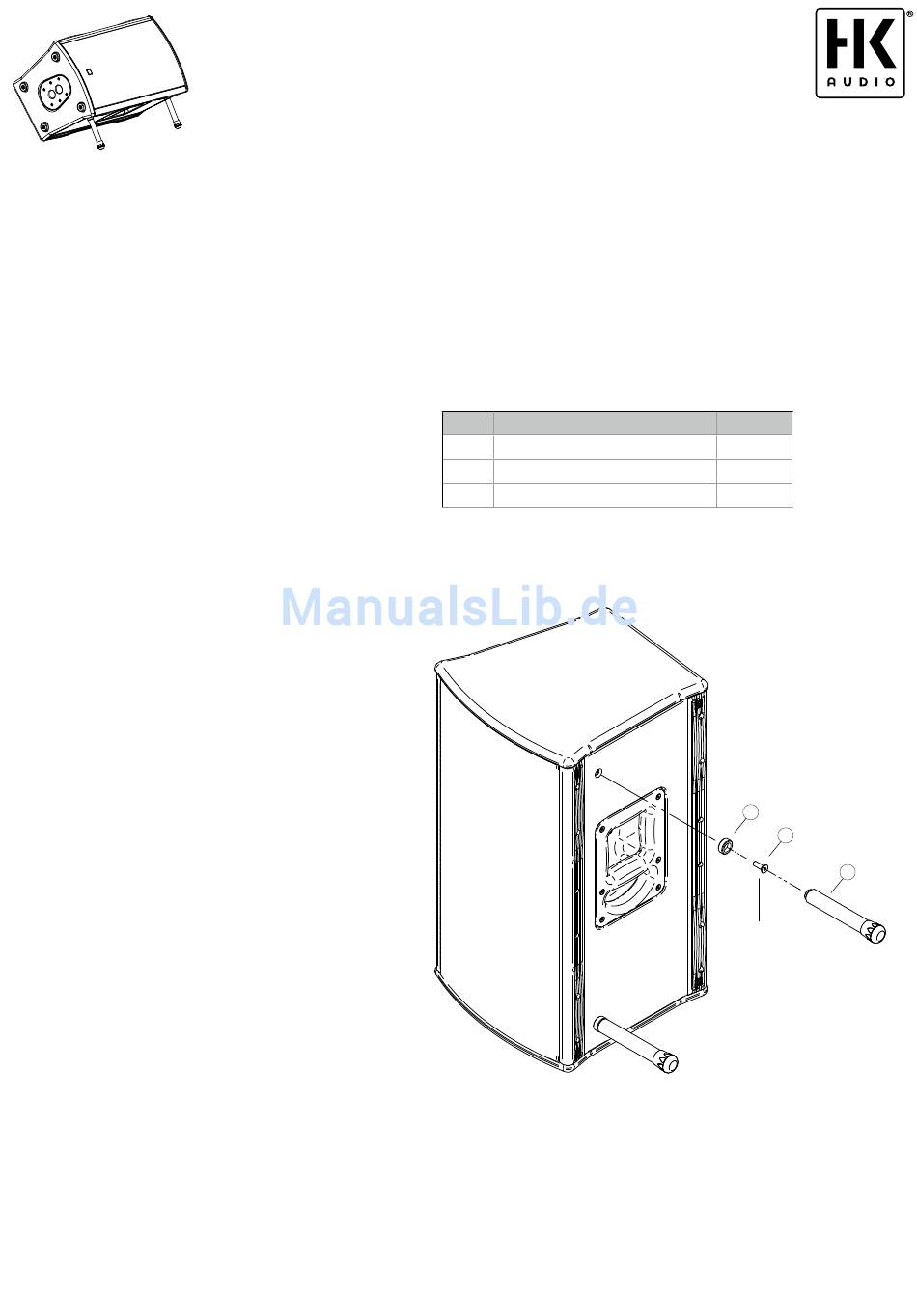

Installing the monitor poles
• Turn the tilters' M20 male threads into the two
female sleeves.
• Make sure all parts are tightly secured.
• The speaker now rests on the rear edge of its
housing for use as a floor wedge.
• The monitor poles are easily unscrewed for
transport.
• We recommend removing the monitor poles
to prevent damage in transit.
Designed and engineered in Germany • Made in PRC
HK Audio • Postfach 1509 • 66595 St. Wendel • Germany • info@hkaudio.com • www.hkaudio.com
®
International Inquiries: fax +49-68 51-905 215 • international@hkaudio.com
Monitor Poles
1 pair of tilters
for monitoring applications
• for PULSAR: PL 112 FA / PL 115 FA
Art.-No. 1007442
Pos. Description
1* Countersunk M8 hex-head screw
2 M20 threaded sleeve, female
3 M20 threaded monitor pole, male
Quantity
2
2
2
2
1*
3
*Part of the cabinet
