Model Description
CODITEL 2 GSM communication interface with backup battery

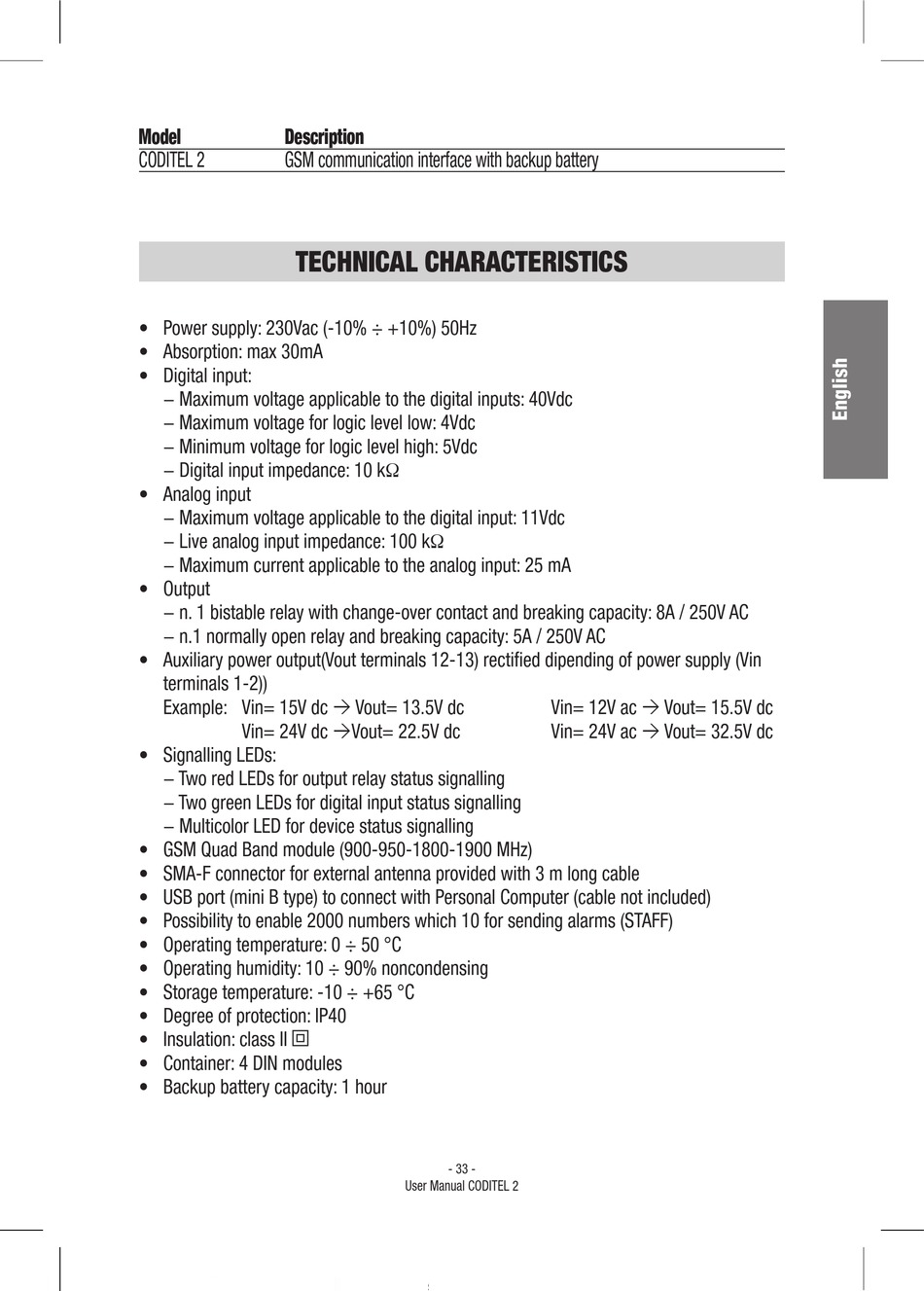

TECHNICAL CHARACTERISTICS

• Power supply: 230Vac (-10% ÷ +10%) 50Hz
• Absorption: max 30mA
• Digital input:
− Maximum voltage applicable to the digital inputs: 40Vdc
− Maximum voltage for logic level low: 4Vdc
− Minimum voltage for logic level high: 5Vdc
− Digital input impedance: 10 kΩ
• Analog input
− Maximum voltage applicable to the digital input: 11Vdc
− Live analog input impedance: 100 kΩ
− Maximum current applicable to the analog input: 25 mA
• Output
− n. 1 bistable relay with change-over contact and breaking capacity: 8A / 250V AC
− n.1 normally open relay and breaking capacity: 5A / 250V AC
• Auxiliary power output(Vout terminals 12-13) rectified dipending of power supply (Vin
terminals 1-2))
Example: Vin= 15V dc  Vout= 13.5V dc
Vin= 24V dc Vout= 22.5V dc
• Signalling LEDs:
− Two red LEDs for output relay status signalling
− Two green LEDs for digital input status signalling
− Multicolor LED for device status signalling
• GSM Quad Band module (900-950-1800-1900 MHz)
• SMA-F connector for external antenna provided with 3 m long cable
• USB port (mini B type) to connect with Personal Computer (cable not included)
• Possibility to enable 2000 numbers which 10 for sending alarms (STAFF)
• Operating temperature: 0 ÷ 50 °C
• Operating humidity: 10 ÷ 90% noncondensing
• Storage temperature: -10 ÷ +65 °C
• Degree of protection: IP40
• Insulation: class II
• Container: 4 DIN modules
• Backup battery capacity: 1 hour
Vin= 12V ac  Vout= 15.5V dc
Vin= 24V ac  Vout= 32.5V dc
- 33 -
User Manual CODITEL 2
