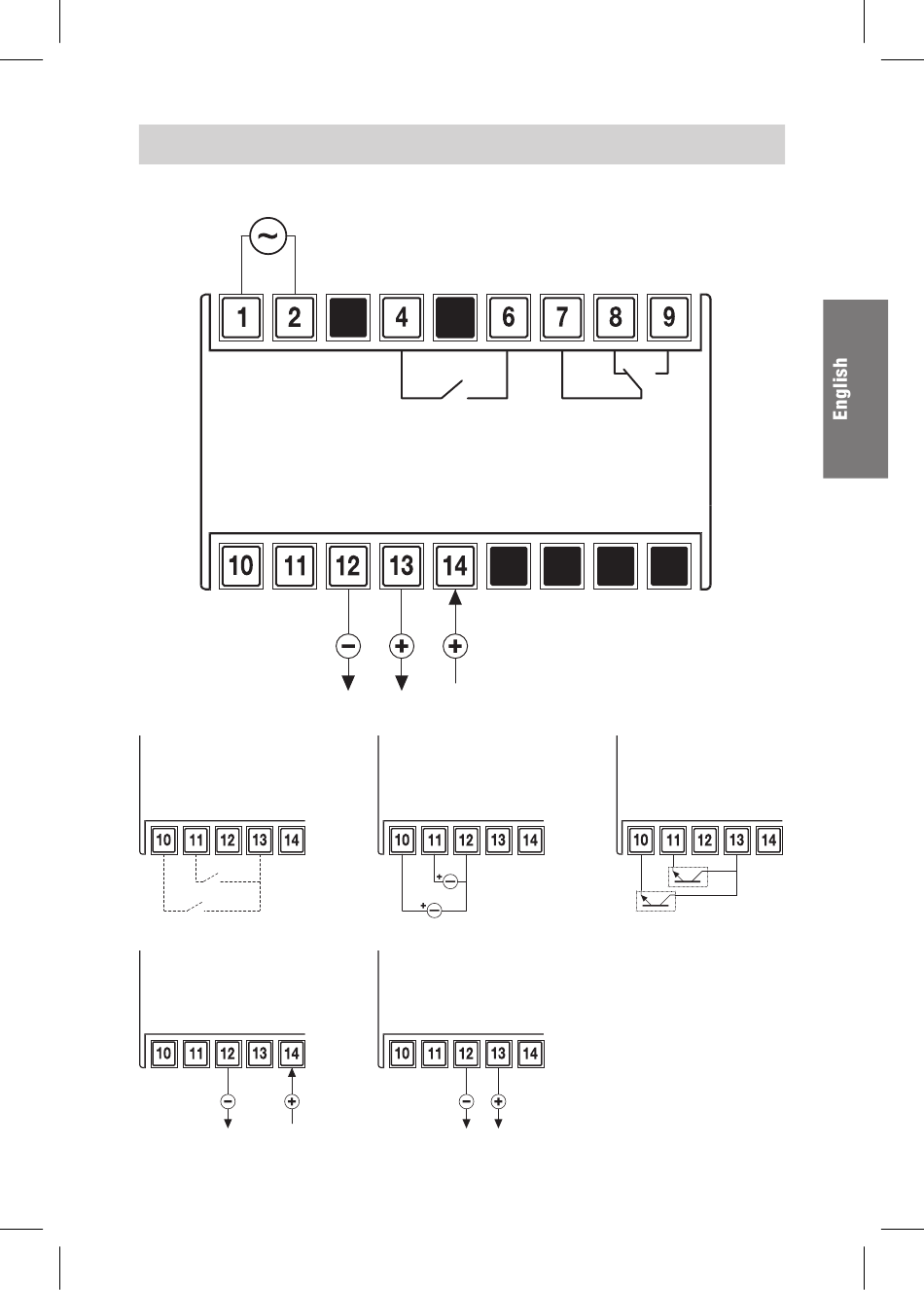

CONNECTION DIAGRAMS

Power supply
In 1 In 2
Digital inputs
(free of voltage)
In 1 In 2
Digital inputs
(free of voltage)
In 1 In 2
Analog input
0-10 V / 0-20 mA -
Analog input
0-10 V / 0-20 mA -
Out 2
5 A / 250 V ~
Digital inputs
voltage (40 V CC max)
In 1 In 2
Digital inputs
voltage (40 V CC max)
In 1 In 2
Power output
max 25 mA
Power output
max 25 mA
- 31 -
User Manual CODITEL 2
Out 1
8 A / 250 V ~
Digital inputs
open-collector
In 1 In 2
Digital inputs
open-collector
In 1 In 2
