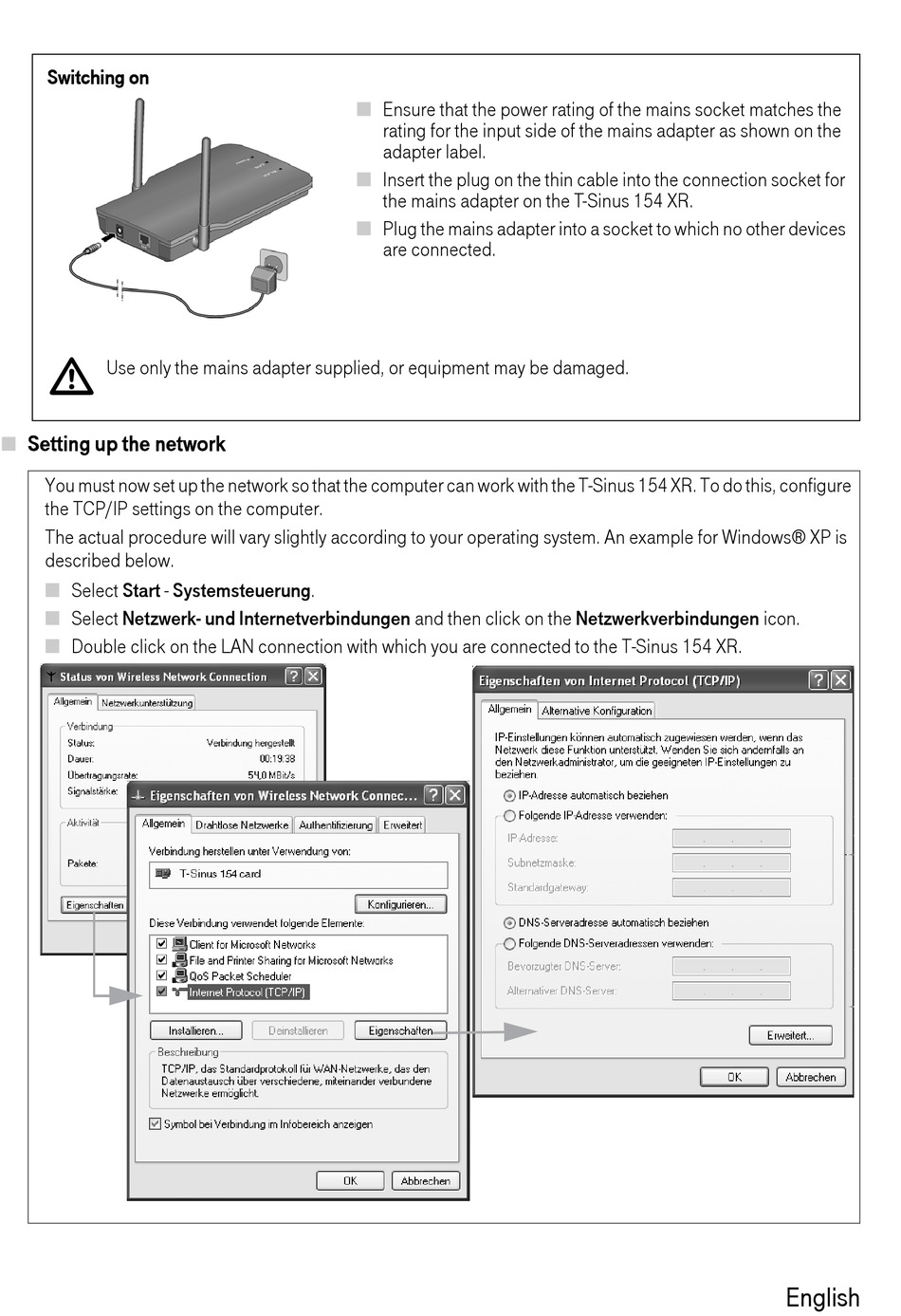

Switching on
W
Use only the mains adapter supplied, or equipment may be damaged.
Setting up the network
■
You must now set up the network so that the computer can work with the T-Sinus 154 XR. To do this, configure
the TCP/IP settings on the computer.
The actual procedure will vary slightly according to your operating system. An example for Windows® XP is
described below.
Select Start - Systemsteuerung.
■
Select Netzwerk- und Internetverbindungen and then click on the Netzwerkverbindungen icon.
■
Double click on the LAN connection with which you are connected to the T-Sinus 154 XR.
■
Ensure that the power rating of the mains socket matches the
■
rating for the input side of the mains adapter as shown on the
adapter label.
Insert the plug on the thin cable into the connection socket for
■
the mains adapter on the T-Sinus 154 XR.
Plug the mains adapter into a socket to which no other devices
■
are connected.
