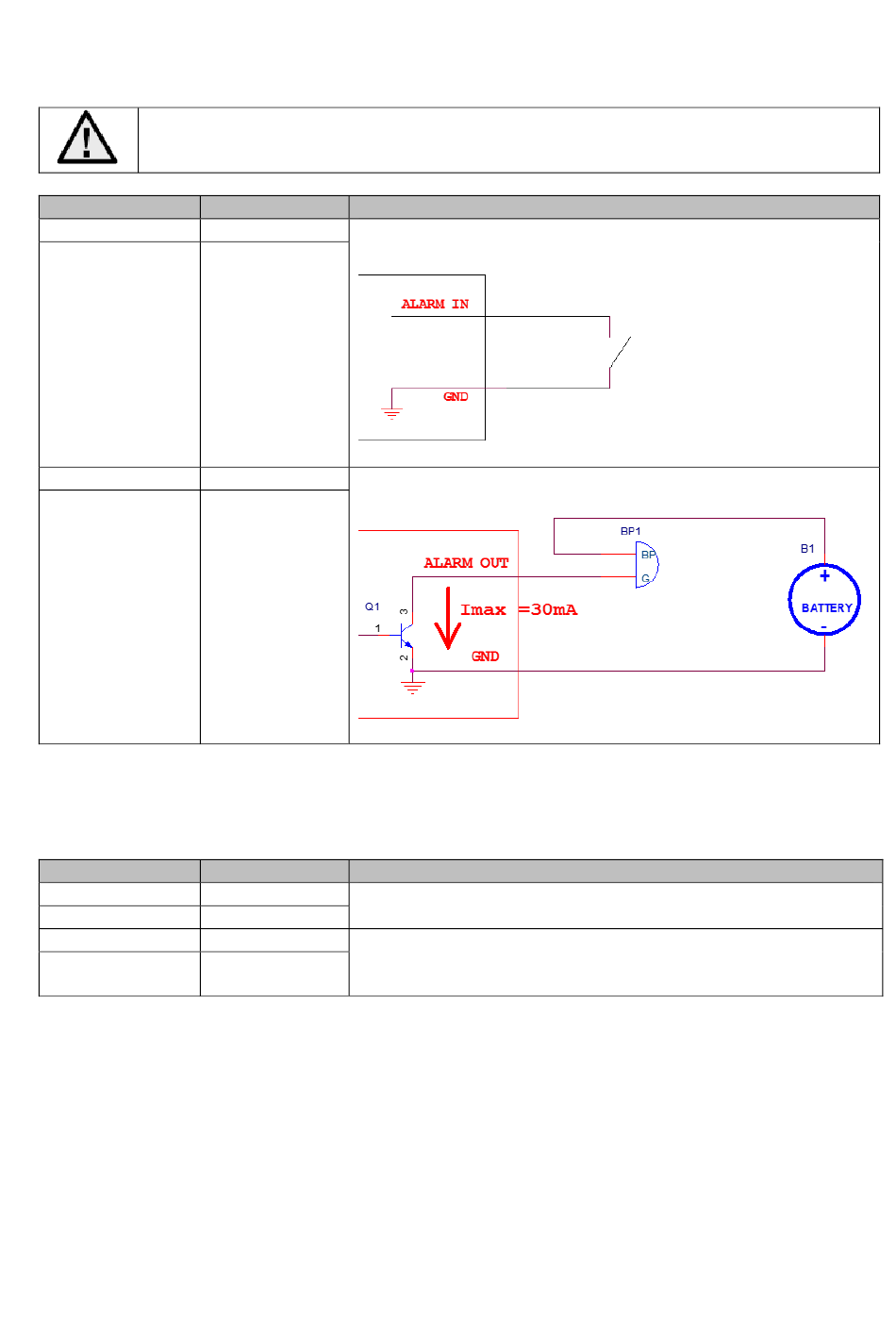

3.5 Switching input/output

The maximum load values must be observed, otherwise, the camera may be
irreparably damaged.
Switching input
Switching output „OUT"

3.6 Audio input / audio output

Audio input
Audio output
Description Connection information
„IN" Bridge between „IN" and „G "
„G" (GND)
12 V DC, max. 30 mA, please note the connection polarity
„G" (GND)
Description Connection information
„IN" MIC / LINE Interface
LINE: 2-2.4Vss, 1KΩ
„G" (GND)
„OUT" Impedance: 600 Ω
Frequency range: 20 Hz – 20 kHz
„G" (GND)
Output power: 20 mW @ 16Ω
