EN
The FuelServe™ has been thoroughly tested before shipping. This guarantee covers all manufacturing and
material defects for 1 year from the delivery date and only covers all parts and labour costs. Shipping costs
will be extra to the customer. This guarantee is not valid if the FuelServe™ has been tampered with prior to
returning it to Wynn's for inspection or when the Instructions for Use have not been followed. Damages due
to overloading, improper use, application of unauthorised products, shocks, accidents, use of the machine
for other purposes than cleaning and treating are all excluded from the guarantee. The FuelServe™ can be
locally repaired following written consent by Wynn's Belgium. This consent will be given after examination
of the specific case by Wynn's Belgium. In case of complaint please also send a copy of the purchase invoice.
It is also important to indicate the serial number of the apparatus on the invoice.

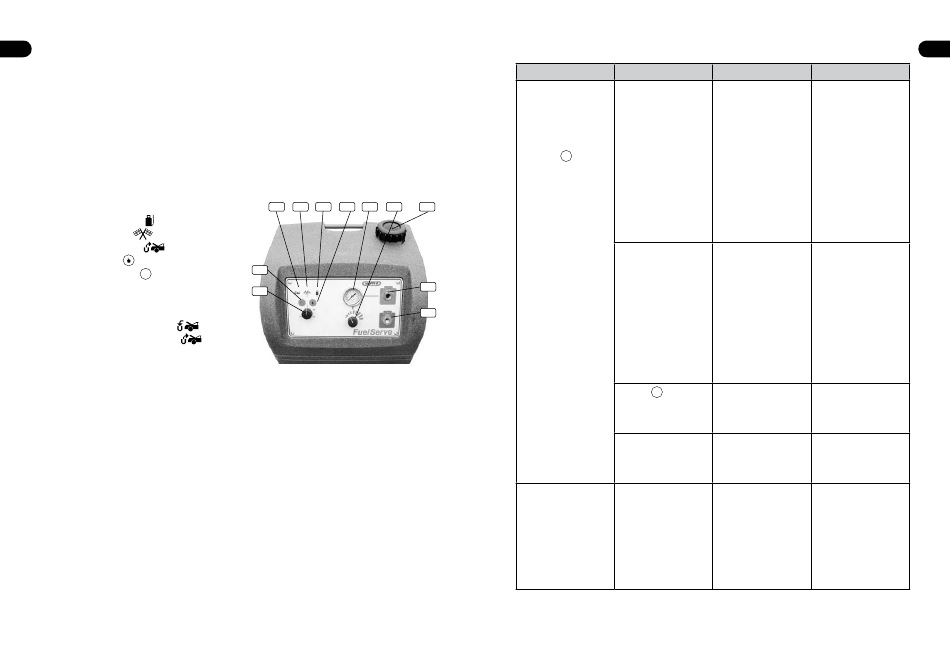

1 Pressure gauge to check operating pressure
2 'Low level' indicator
3 'Ready' indicator
4 'Cleaning' indicator
5 'Purge' button
6 'Start /Stop' button
0 / 1
7 Switch to set timer
8 Sliding drawer (see picture page 32)
9 Pressure regulator to set pressure
10 Connection blue return hose
11 Connection red pressure hose
12 Screw cap tank
Cleaning & maintenance :
Cleaning of the housing:
This can be done with non-aggressive and non-abrasive cleaning products, e.g. Wynn's Cleen Green.
Fast coupling maintenance:
The O-ring in the fast coupling will age due to the influence of the cleaning liquids and mechanical stress
by the coupling action.
The Machine contains one spare set of O-rings for replacement. O-rings can easily be replaced by
unscrewing the two coupling parts.
Guarantee
Technical Data
4
3
2
5
1
6
7
6
Action
- Connect the return hose to
the engine.
- Fill the tank with liquid.
- Open the pressure regulator
completely (turn counter-
clockwise)
- Push 'START
0 / 1
9
12
11
10
Slowly close the pressure
regulator to increase the
pressure.
Failures
Failure
Possible cause
Pump does not start to run
- The floating device does not
operate.
- Loose contacts at:
- floating device
- pump
' button.
- The fuse has blown.
- Pump is out of order.
- Failure in electronic receiving
unit.
Tank is empty, pump starts
- Contacts loose at the
to work
electronic receiving unit.
- Floating device gives no
contact.
- Failure in electronic receiving
unit.
- Over voltage
The 'START
' button has
Failure in the electronic
0 / 1
been pushed. When liquid
receiving unit.
is poured into the tank, the
pump starts to work.
Pump starts, but switches off.
Overpressure in system
- The pressure irregularly
- Pump is damaged.
increases.
- Pressure gauge is damaged.
- The pressure insufficiently
increases or not at all.
- The pressure regulator is
damaged.
- The pressure regulator leaks.
7
EN
Solution
- Replace floating device with
a new one from Wynn's.
- Fasten them.
- Repair fuse.
- Replace pump with a new
one from Wynn's.
- Check by Wynn's.
- Tighten them.
- Replace floating device with
a new one from Wynn's.
- Check by Wynn's
- Disconnect clamps of power
source and connect to a 12
volt source.
Check by Wynn's
Switch off machine. Remove
obstruction in hose. Turn
pressure regulator completely
open. Start Machine again.
- Replace the pump.
- Replace the pressure gauge.
- Replace.
- Dismantle it and replace
the seals.
