AXIS M3014 Network Camera

Install the Hardware

Note
If the camera module holder is mounted onto a hard ceiling such as metal or wood, the
metal camera module holder can be screwed onto the ceiling, and the springs can be
removed.
1. Drill a hole (70–76 mm, 2.75–3 inches) in the ceiling to fit the camera's metal camera
module holder.
2. Remove the camera from the metal camera module holder.

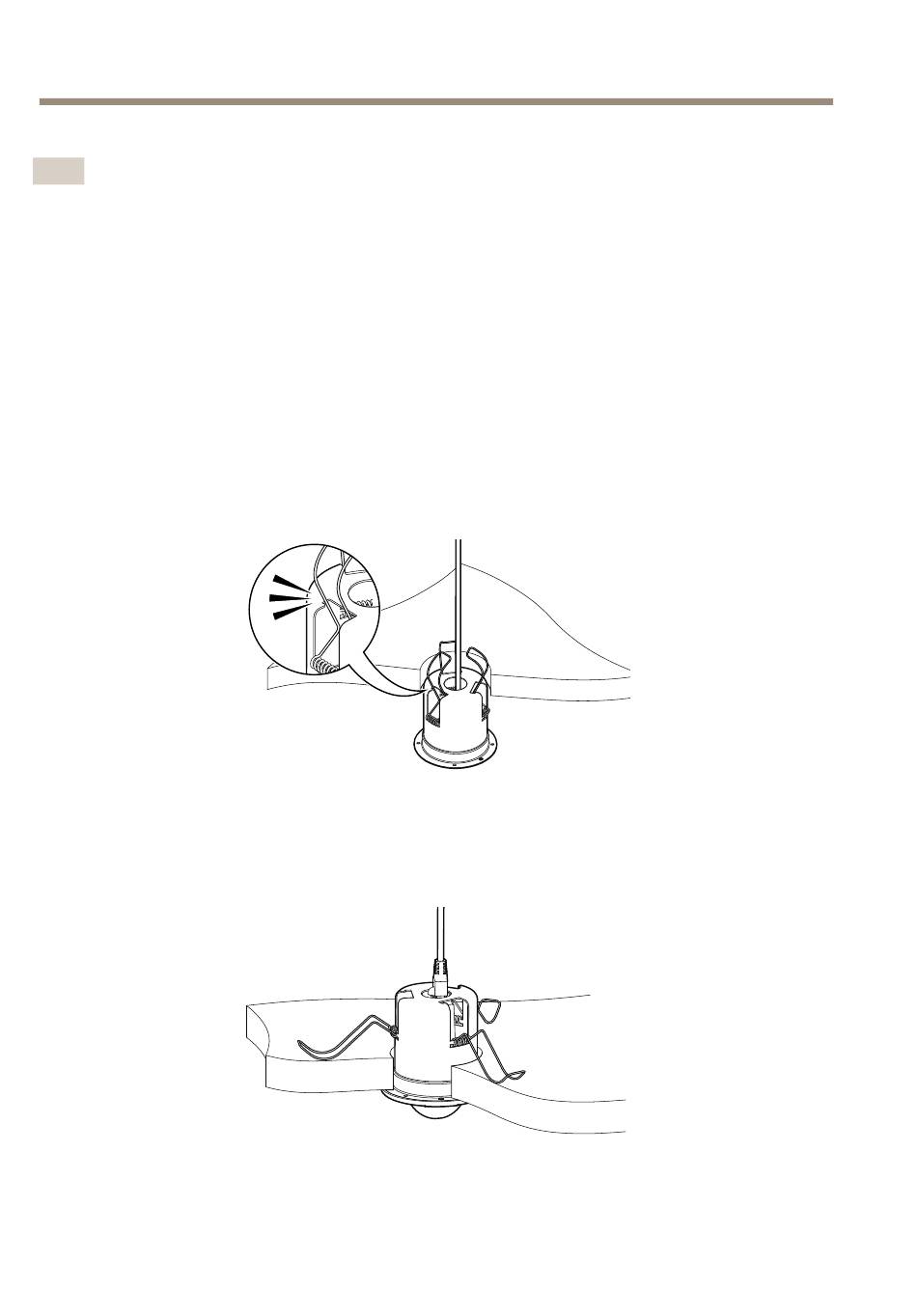

3. Carefully push and set the three springs on the metal camera module holder back into
their slots.
4. Pull the network cable through the ceiling and through the camera's metal camera
module holder.
5. Insert the metal camera module holder through the ceiling. Ensure that Viewing area
marked on the rim of the cup faces the area that is to be monitored.
6. Fix the metal camera module holder into the ceiling. Insert an instrument such as a
screw driver into the metal camera module holder and release the springs so they clamp
down on the ceiling and hold the cup in place.
