AXIS M3014 Network Camera
Adjust the Lens
To adjust the position of the lens, follow these steps:
1. Open the Live View page in your web browser.
2. While checking the image in the Live View page, move the lens to the desired position.
Adjust the Focus
The focus of the AXIS M3014 Network Camera is set at the factory from 0.5 m to infinity. It does
not normally need adjustment. To focus on objects closer than 0.5 m, or if for some reason the
lens has lost focus, this can be adjusted in the following way:
1. Loosen the lens lock screw.
2. Manually rotate the lens to adjust the focus until the image on the Live View page
is satisfactory.
3. Gently retighten the lens lock screw.

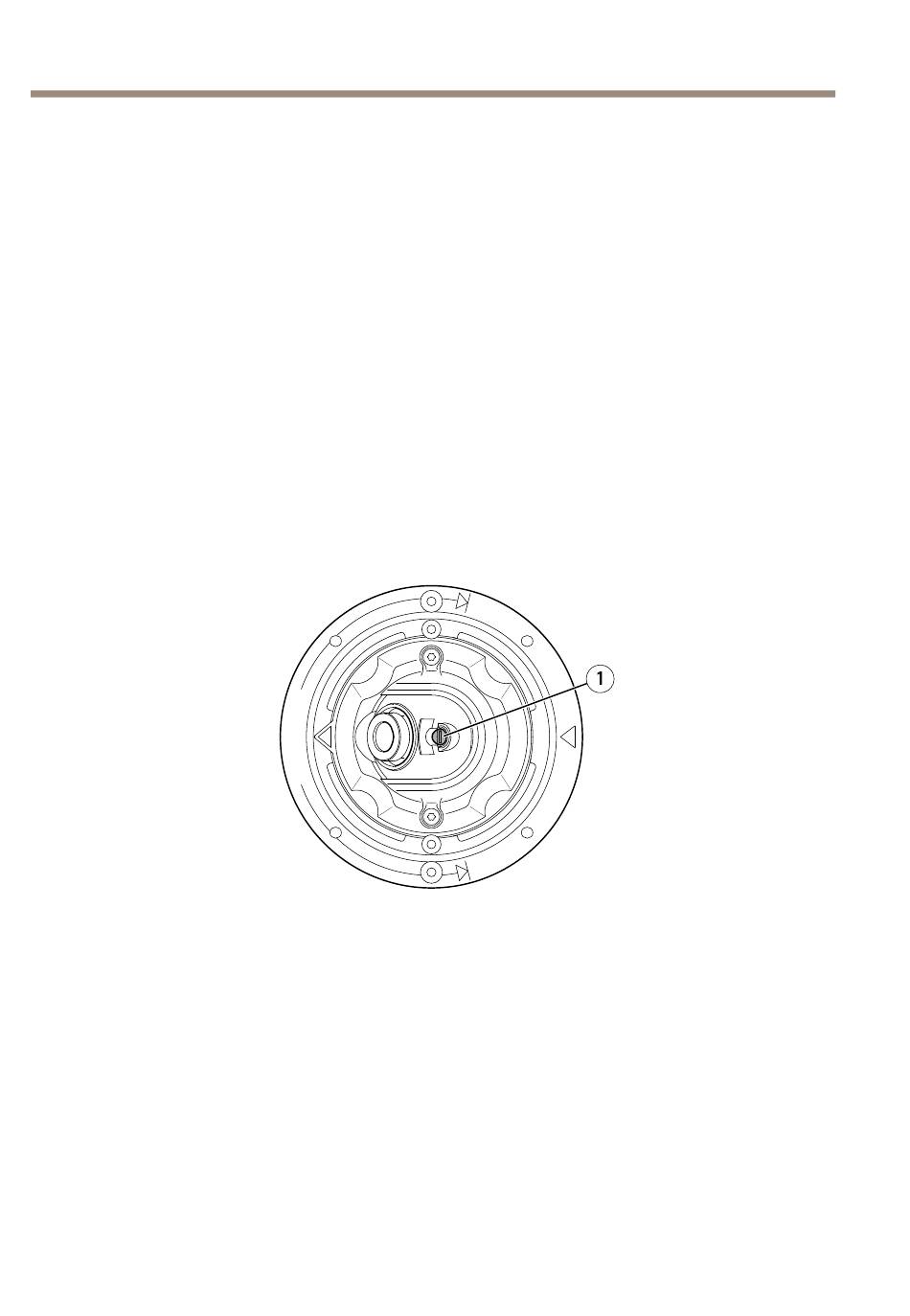

1
Lens lock screw
Complete the Installation
• Place the magnetic dome cover over the camera. Align the rivet holes.
• The rivet holes can be covered with the plastic plugs provided.
• If the dome needs to be secured, use the tamper-proof screws provided and screw the
dome on.
The installation is now complete.
