Spectral SMART CONTROL IR-LINK-SYSTEM Schnellstartanleitung Seite 8

ENGLISH

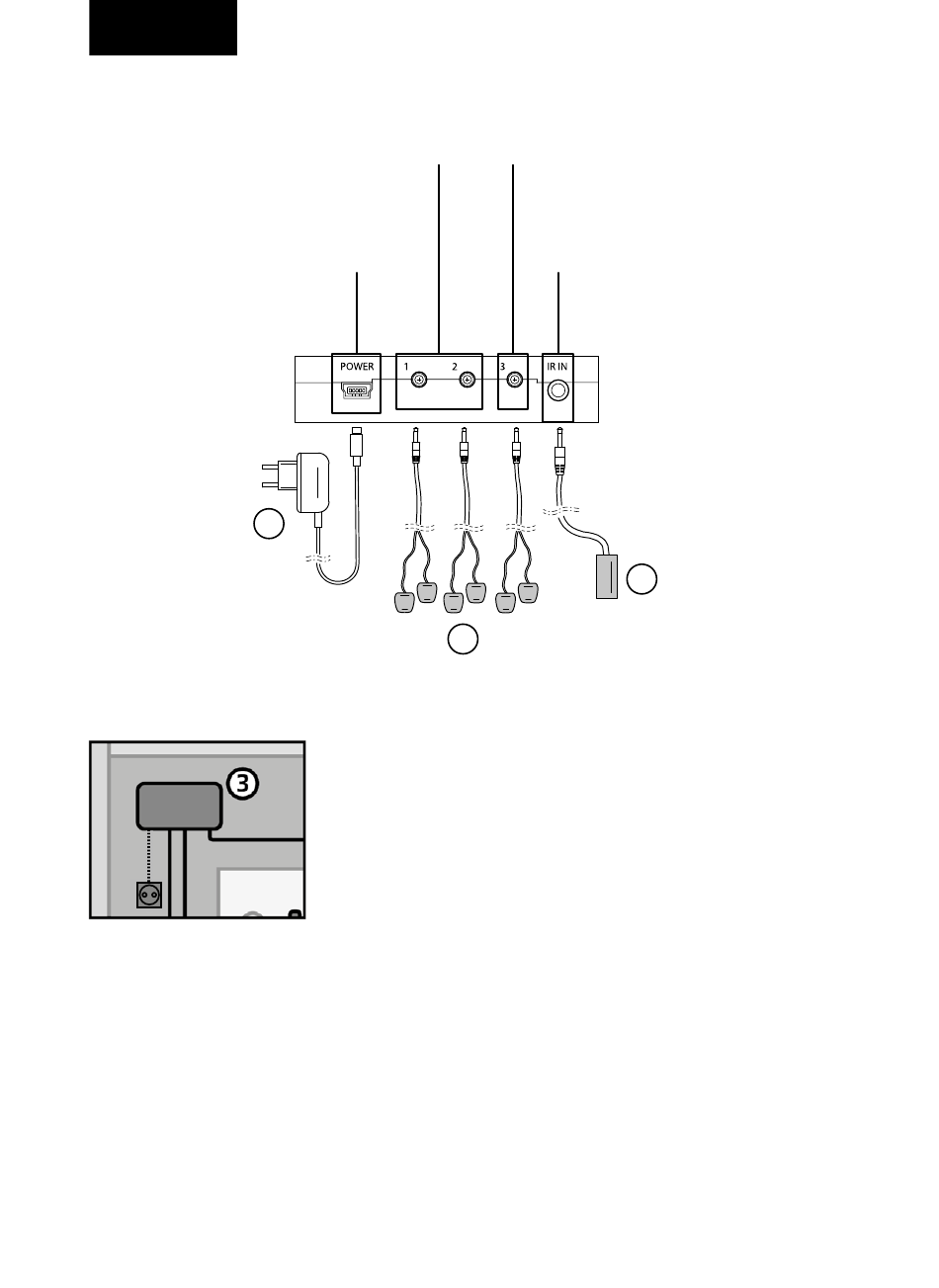

1.3 MOUNTING AND SETTING UP THE IR MODULE
IR OUT ports for devices
behind closed furniture flaps
power supply
4
1. Conncet the IR cable with the IR Blaster LEDs (2) to the IR OUT ports of the
IR module. To avoid operation problems, use the IR OUT 1 and IR OUT 2
ports for devices behind closed furniture flaps only, the IR OUT 3 (TV) port
for devices within sight (TV, soundsystem).
2. Connect the IR receiver (1) to the IR IN port of the IR module.
3. Connect the USB power adapter (4) to the POWER supply of the IR module
and plug in the USB power adapter.
8
IR OUT port for devices within
sight (TV, soundsystem)
2
Install the IR module (3) in an accessible place
behind or next to your audio/video devices and
within reach of a power outlet.
In order to monitor the operation ability, the ports
must be accessible and the indicator lights must
remain visible.
IR IN port for IR receiver
1
