PC and keypad must only be connected when the units are switched off!
Step
1 Plug download cable EPZ-H110
2 Connect the download cable EPZ-H110

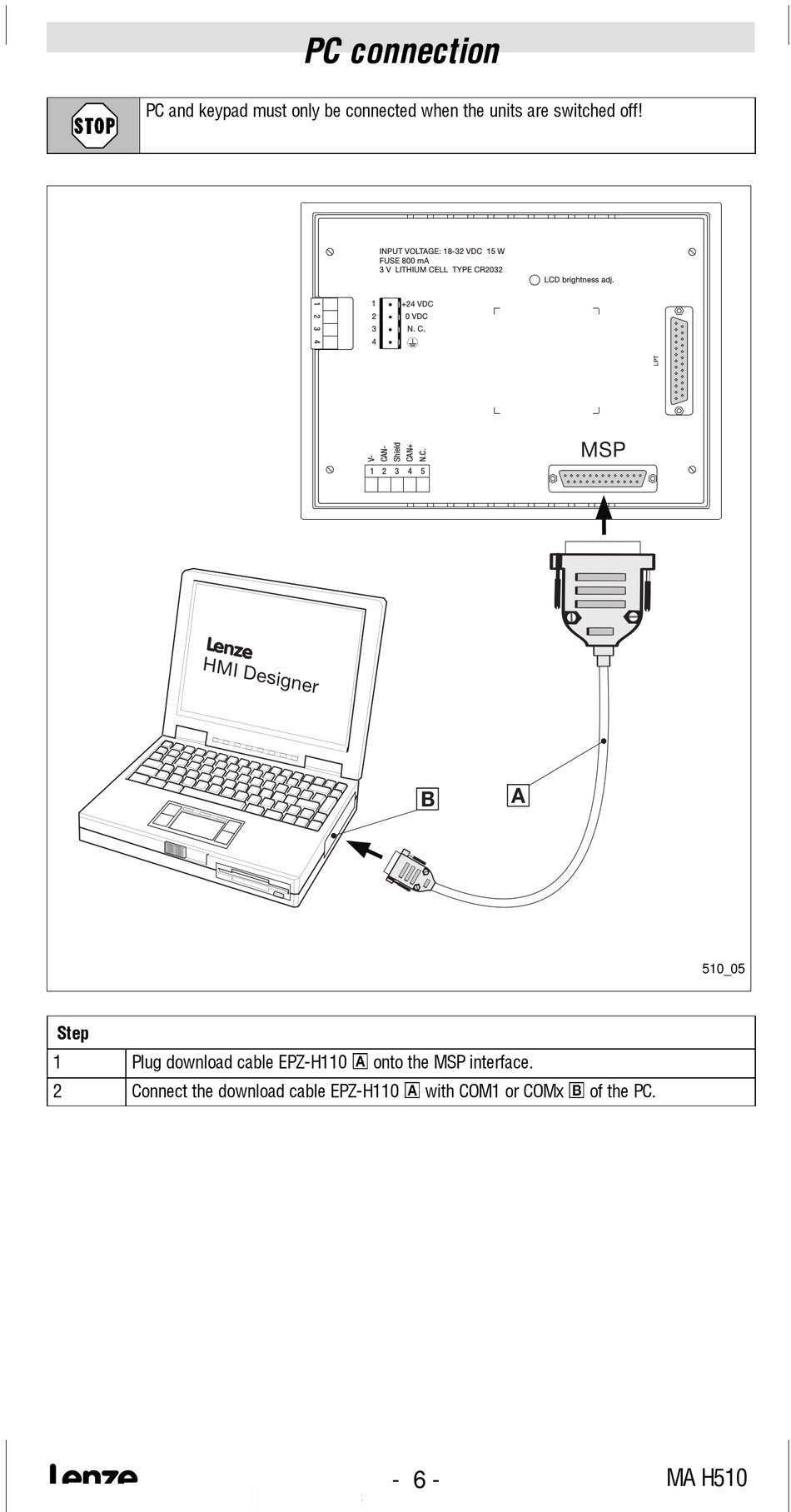

PC connection
INPUT VOLTAGE: 18-32 VDC 15 W
FUSE 800 mA
3 V LITHIUM CELL TYPE CR2032
1
+24 VDC
2
0 VDC
3 N. C.
4
1 2 3 4 5
1
0
onto the MSP interface.
0
with COM1 or COMx
- 6 -
LCD brightness adj.
MSP
0
1
of the PC.
510_05
MA H510
