Installation and Connections

4.1

DVR Installation

During installation of the DVR:
1. Use brackets for rack mounting.
2. Ensure ample room for audio and video cables.
3. When routing cables, ensure that the bend radius of the cables is no less than five times than its diameter.
4. Connect the alarm cable.
5. Allow at least 2cm (≈0.75 inch) of space between racks mounted devices.
6. Ensure the DVR is grounded.
7. Environmental temperature should be within the range of -10ºC to 55ºC, 14ºF to 131ºF.
8. Environmental humidity should be within the range of 10% to 90%.
4.2

Hard Disk Installation

Before you start:
Disconnect the power from the DVR before installing a hard disk drive (HDD). A factory recommended HDD
should be used for this installation.
Up to 2 SATA hard disks can be installed on your Eventys AX DVR series.
Tools Required: Screwdriver.
1. Remove the cover from the DVR by unfastening the screws on the back and side.
© Vanderbilt 2017

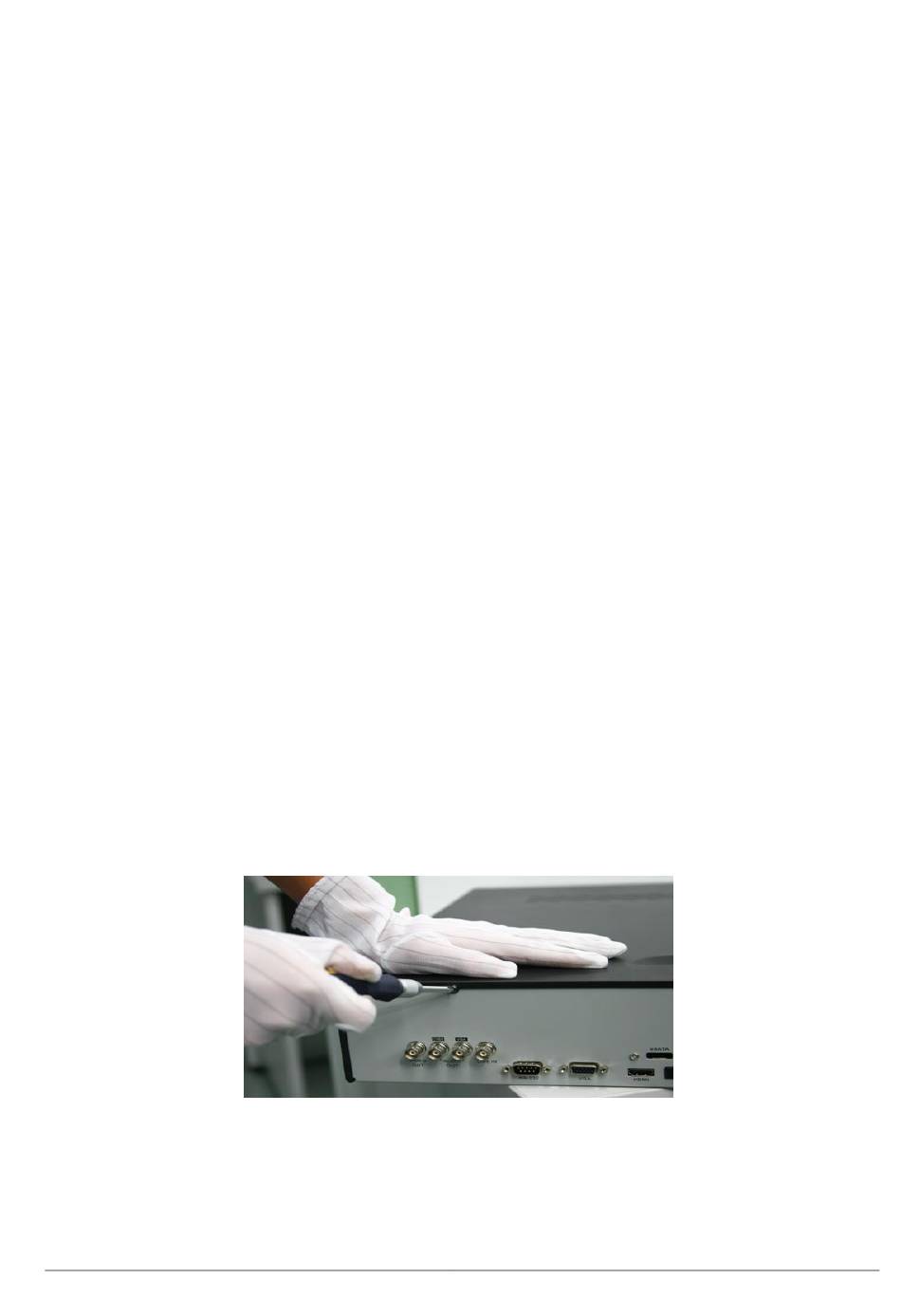

Figure 4-1 Remove the Cover
