Housing and Lever
When selecting the place where the housing and lever will be mounted, account for the maximum swing that the lever can make.
Also account for the total height of the mechanism. See drawing 'Principal dimensions'.

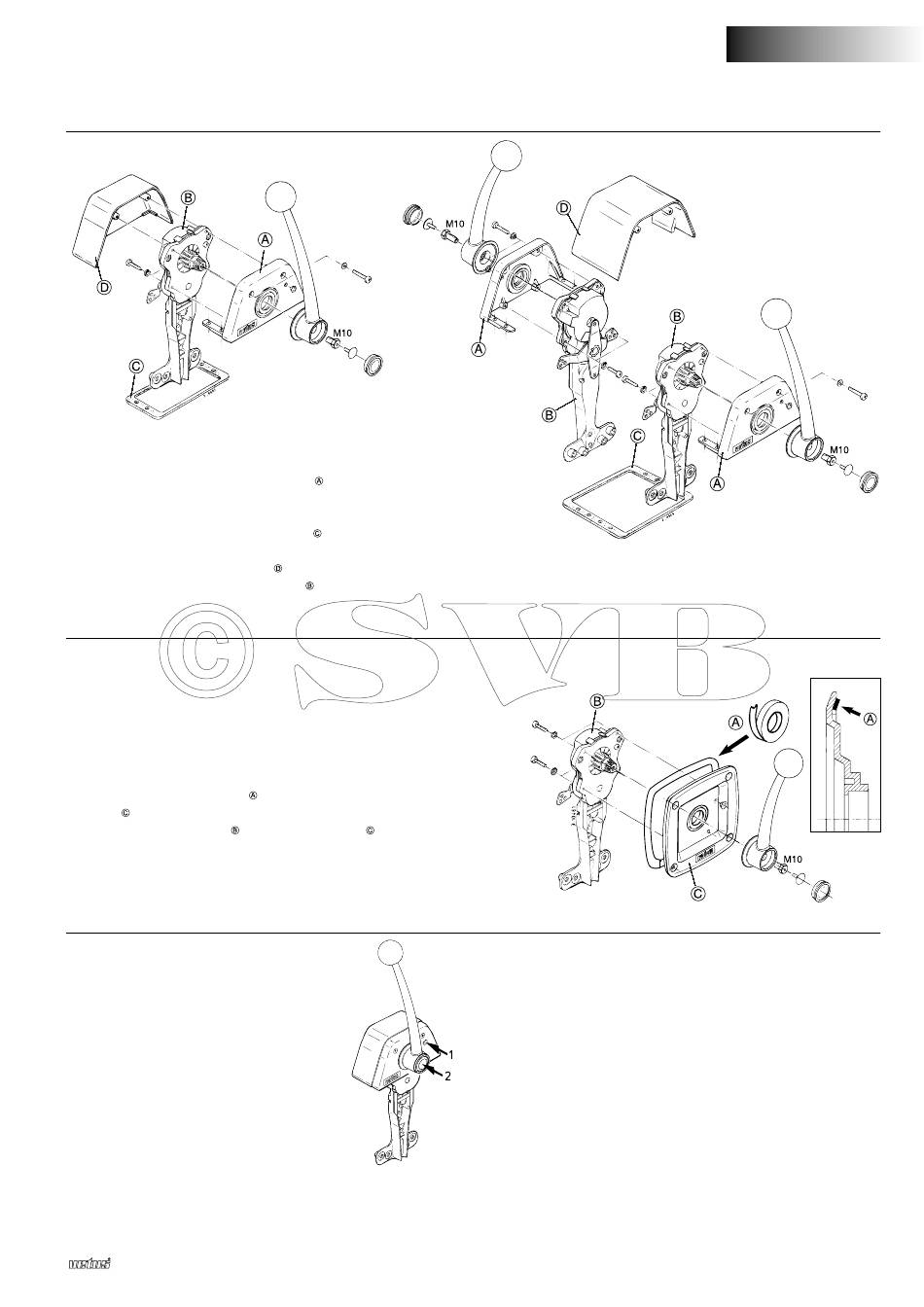

Top mounting:
• With the help of the supplied drill pattern, sketch the mounting holes to be
drilled and the opening to be sawed out.
• The two brackets on the silvery part
Make sure that the mounting holes line up with the sketched holes.
• Drill the holes and saw out the opening.
• Apply the supplied self-stick spacer
• Assemble the remote control with M5 bolts of the correct length.
• Now assemble the black part
• Grease the axle of the mechanism
Provide the bolt M10 with a screwlock (Loctite
• Check the path of the cables.
Side mounting:
The remote control for side mounting requires a space of at least 180 mm
(7") behind the shot in order to assemble the entire mechanism.
• With the help of the supplied drill pattern, sketch the mounting holes
to be drilled and the opening to be sawed out.
• Drill the holes and saw out the opening.
• Apply the supplied inseal
plate . See inset.
• Attach the mechanism
• Then attach the entire mechanism to the shot with bolts.
• Grease the axle of the mechanism, and mount the lever in the desired
position (usually vertical).
Provide the bolt M10 with a screwlock (Loctite
• Check the path of the cables.
Adjustments
Screw 1 can be adjusted to set the friction
for the gas mechanism, depending on the
counter pressure of the throttle.
Control
Button 2 can be used to turn off the control
of the gearbox, so that gas can only be
given. (For example, for starting and warm-
ing up the engine.)
When the lever is returned to the neutral
position, the button will pop back out, and the remote control is
ready for normal use.
Mechanical remote engine control
should serve as mounting brackets.
in the correct manner.
of the housing.
, and mount the lever in the desired position (usually vertical).
® 243).
correctly on the back of the plastic
to the plastic plate .
® 243).

Maintenance

Clean, as necessary, the lever and the housing with freshwater.
Check the mechanism for loose components and for wear of
the moving parts on a regular basis.
Apply a water-resistant lubricant to the moving parts routinely.
Check the cables and the cable connections for wear and cor-
rosion on a regular basis.
