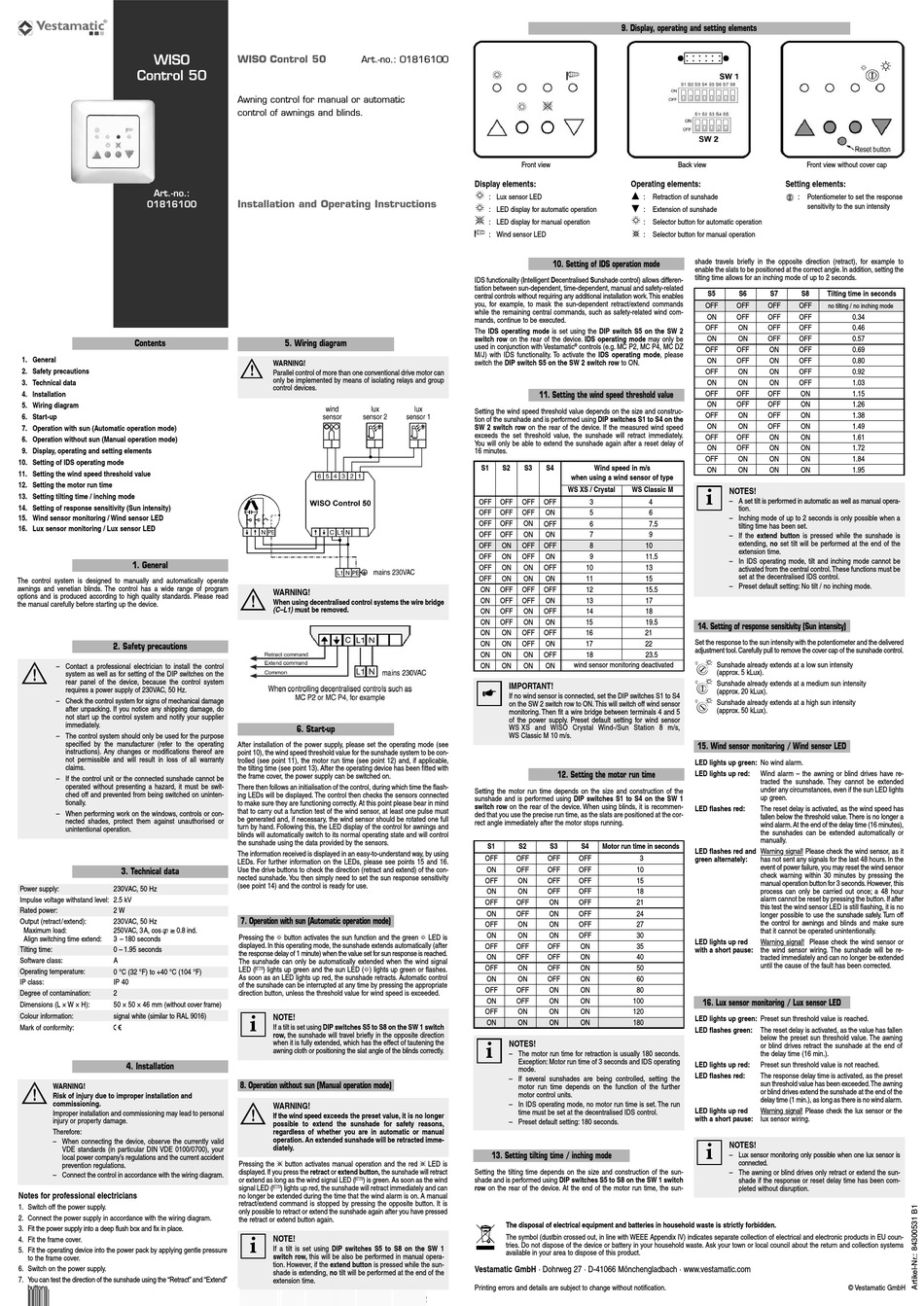

Contents
1. General
2. Safety precautions
3. Technical data
4. Installation
5. Wiring diagram
6. Start-up
7. Operation with sun (Automatic operation mode)
6. Operation without sun (Manual operation mode)
9. Display, operating and setting elements
10. Setting of IDS operating mode
11. Setting the wind speed threshold value
12. Setting the motor run time
13. Setting tilting time / inching mode
14. Setting of response sensitivity (Sun intensity)
15. Wind sensor monitoring / Wind sensor LED
16. Lux sensor monitoring / Lux sensor LED
1. General
The control system is designed to manually and automatically operate
awnings and venetian blinds. The control has a wide range of program
options and is produced according to high quality standards. Please read
the manual carefully before starting up the device.
2. Safety precautions
– Contact a professional electrician to install the control
Ä
system as well as for setting of the DIP switches on the
rear panel of the device, because the control system
requires a power supply of 230VAC, 50 Hz.
– Check the control system for signs of mechanical damage
after unpacking. If you notice any shipping damage, do
not start up the control system and notify your supplier
immediately.
– The control system should only be used for the purpose
specified by the manufacturer (refer to the operating
instructions). Any changes or modifications thereof are
not permissible and will result in loss of all warranty
claims.
– If the control unit or the connected sunshade cannot be
operated without presenting a hazard, it must be swit-
ched off and prevented from being switched on uninten-
tionally.
– When performing work on the windows, controls or con-
nected shades, protect them against unauthorised or
unintentional operation.
3. Technical data
Power supply:
230VAC, 50 Hz
Impulse voltage withstand level: 2.5 kV
Rated power:
2 W
Output (retract/extend):
230VAC, 50 Hz
Maximum load:
250VAC, 3A, cos f > 0.8 ind.
Align switching time extend:
3 – 180 seconds
Tilting time:
0 – 1.95 seconds
Software class:
A
Operating temperature:
0 °C (32 °F) to +40 °C (104 °F)
IP class:
IP 40
Degree of contamination:
2
Dimensions (L × W × H):
50 × 50 × 46 mm (without cover frame)
Colour information:
signal white (similar to RAL 9016)
Mark of conformity:
p
4. Installation
WARNING!
Ä
Risk of injury due to improper installation and
commissioning.
Improper installation and commissioning may lead to personal
injury or property damage.
Therefore:
– When connecting the device, observe the currently valid
VDE standards (in particular DIN VDE 0100/0700), your
local power company's regulations and the current accident
prevention regulations.
– Connect the control in accordance with the wiring diagram.
Notes for professional electricians
1. Switch off the power supply.
2. Connect the power supply in accordance with the wiring diagram.
3. Fit the power supply into a deep flush box and fix in place.
4. Fit the frame cover.
5. Fit the operating device into the power pack by applying gentle pressure
to the frame cover.
6. Switch on the power supply.
7. You can test the direction of the sunshade using the "Retract" and "Extend"
buttons.
WISO Control 50
Art.-no.: 01816100
Awning control for manual or automatic
control of awnings and blinds.
Installation and Operating Instructions
5. Wiring diagram
WARNING!
Ä
Parallel control of more than one conventional drive motor can
only be implemented by means of isolating relays and group
control devices.
WARNING!
Ä
When using decentralised control systems the wire bridge
(C–L1) must be removed.
6. Start-up
After installation of the power supply, please set the operating mode (see
point 10), the wind speed threshold value for the sunshade system to be con-
trolled (see point 11), the motor run time (see point 12) and, if applicable,
the tilting time (see point 13). After the operating device has been fitted with
the frame cover, the power supply can be switched on.
There then follows an initialisation of the control, during which time the flash-
ing LEDs will be displayed. The control then checks the sensors connected
to make sure they are functioning correctly. At this point please bear in mind
that to carry out a function test of the wind sensor, at least one pulse must
be generated and, if necessary, the wind sensor should be rotated one full
turn by hand. Following this, the LED display of the control for awnings and
blinds will automatically switch to its normal operating state and will control
the sunshade using the data provided by the sensors.
The information received is displayed in an easy-to-understand way, by using
LEDs. For further information on the LEDs, please see points 15 and 16.
Use the drive buttons to check the direction (retract and extend) of the con-
nected sunshade. You then simply need to set the sun response sensitivity
(see point 14) and the control is ready for use.
7. Operation with sun (Automatic operation mode)
Pressing the S button activates the sun function and the green S LED is
displayed. In this operating mode, the sunshade extends automatically (after
the response delay of 1 minute) when the value set for sun response is reached.
The sunshade can only be automatically extended when the wind signal
LED (w) lights up green and the sun LED (S) lights up green or flashes.
As soon as an LED lights up red, the sunshade retracts. Automatic control
of the sunshade can be interrupted at any time by pressing the appropriate
direction button, unless the threshold value for wind speed is exceeded.
i
NOTE!
If a tilt is set using DIP switches S5 to S8 on the SW 1 switch
row, the sunshade will travel briefly in the opposite direction
when it is fully extended, which has the effect of tautening the
awning cloth or positioning the slat angle of the blinds correctly.
8. Operation without sun (Manual operation mode)
WARNING!
Ä
If the wind speed exceeds the preset value, it is no longer
possible to extend the sunshade for safety reasons,
regardless of whether you are in automatic or manual
operation. An extended sunshade will be retracted imme-
diately.
Pressing the # S button activates manual operation and the red # S LED is
displayed. If you press the retract or extend button, the sunshade will retract
or extend as long as the wind signal LED (w) is green. As soon as the wind
signal LED (w) lights up red, the sunshade will retract immediately and can
no longer be extended during the time that the wind alarm is on. A manual
retract/extend command is stopped by pressing the opposite button. It is
only possible to retract or extend the sunshade again after you have pressed
the retract or extend button again.
i
NOTE!
If a tilt is set using DIP switches S5 to S8 on the SW 1
switch row, this will be also be performed in manual opera-
tion. However, if the extend button is pressed while the sun-
shade is extending, no tilt will be performed at the end of the
extension time.
9. Display, operating and setting elements
Front view
Display elements:
Operating elements:
S
Q
: Lux sensor LED
: Retraction of sunshade
S
q
: LED display for automatic operation
: Extension of sunshade
T
S
: LED display for manual operation
: Selector button for automatic operation
w
: Wind sensor LED
T : Selector button for manual operation
10. Setting of IDS operation mode
IDS functionality (Intelligent Decentralised Sunshade control) allows differen-
tiation between sun-dependent, time-dependent, manual and safety-related
central controls without requiring any additional installation work.This enables
you, for example, to mask the sun-dependent retract/extend commands
while the remaining central commands, such as safety-related wind com-
mands, continue to be executed.
The IDS operating mode is set using the DIP switch S5 on the SW 2
switch row on the rear of the device. IDS operating mode may only be
®
used in conjunction with Vestamatic
controls (e.g. MC P2, MC P4, MC DZ
M/J) with IDS functionality. To activate the IDS operating mode, please
switch the DIP switch S5 on the SW 2 switch row to ON.
11. Setting the wind speed threshold value
Setting the wind speed threshold value depends on the size and construc-
tion of the sunshade and is performed using DIP switches S1 to S4 on the
SW 2 switch row on the rear of the device. If the measured wind speed
exceeds the set threshold value, the sunshade will retract immediately.
You will only be able to extend the sunshade again after a reset delay of
16 minutes.
S1
S2
S3
S4
Wind speed in m/s
when using a wind sensor of type
WS XS / Crystal
WS Classic M
OFF
OFF
OFF
OFF
3
4
OFF
OFF
OFF
ON
5
6,00
OFF
OFF
ON
OFF
6
7.5
OFF
OFF
ON
ON
7
9,0
OFF
ON
OFF
OFF
8
10,0
OFF
ON
OFF
ON
9
11.5
OFF
ON
ON
OFF
10
13,0
OFF
ON
ON
ON
11
15,0
ON
OFF
OFF
OFF
12
15.5
ON
OFF
OFF
ON
13
17,0
ON
OFF
ON
OFF
14
18,00
ON
OFF
ON
ON
15
19.5
ON
ON
OFF
OFF
16
21,0
ON
ON
OFF
ON
17
22,0
ON
ON
ON
OFF
18
23.5
wind sensor monitoring deactivated
ON
ON
ON
ON
IMPORTANT!
x
If no wind sensor is connected, set the DIP switches S1 to S4
on the SW 2 switch row to ON. This will switch off wind sensor
monitoring. Then fit a wire bridge between terminals 4 and 5
of the power supply. Preset default setting for wind sensor
WS XS and WISO Crystal Wind-/Sun Station 8 m/s,
WS Classic M 10 m/s.
12. Setting the motor run time
Setting the motor run time depends on the size and construction of the
sunshade and is performed using DIP switches S1 to S4 on the SW 1
switch row on the rear of the device. When using blinds, it is recommen-
ded that you use the precise run time, as the slats are positioned at the cor-
rect angle immediately after the motor stops running.
S1
S2
S3
S4
Motor run time in seconds
OFF
OFF
OFF
OFF
3
ON
OFF
OFF
OFF
10
OFF
ON
OFF
OFF
15
ON
ON
OFF
OFF
18
OFF
OFF
ON
OFF
21
ON
OFF
ON
OFF
24
OFF
ON
ON
OFF
27
ON
ON
ON
OFF
30
OFF
OFF
OFF
ON
35
ON
OFF
OFF
ON
40
OFF
ON
OFF
ON
50
ON
ON
OFF
ON
60
OFF
OFF
ON
ON
80
ON
OFF
ON
ON
100
OFF
ON
ON
ON
120
ON
ON
ON
ON
180
i
NOTES!
– The motor run time for retraction is usually 180 seconds.
Exception: Motor run time of 3 seconds and IDS operating
mode.
– If several sunshades are being controlled, setting the
motor run time depends on the function of the further
motor control units.
– In IDS operating mode, no motor run time is set. The run
time must be set at the decentralised IDS control.
– Preset default setting: 180 seconds.
13. Setting tilting time / inching mode
Setting the tilting time depends on the size and construction of the sun-
shade and is performed using DIP switches S5 to S8 on the SW 1 switch
row on the rear of the device. At the end of the motor run time, the sun-
The disposal of electrical equipment and batteries in household waste is strictly forbidden.
É
The symbol (dustbin crossed out, in line with WEEE Appendix IV) indicates separate collection of electrical and electronic products in EU coun-
tries. Do not dispose of the device or battery in your household waste. Ask your town or local council about the return and collection systems
available in your area to dispose of this product.
Vestamatic GmbH · Dohrweg 27 · D-41066 Mönchengladbach · www.vestamatic.com
Printing errors and details are subject to change without notification.
Back view
Front view without cover cap
Setting elements:
\
: Potentiometer to set the response
sensitivity to the sun intensity
shade travels briefly in the opposite direction (retract), for example to
enable the slats to be positioned at the correct angle. In addition, setting the
tilting time allows for an inching mode of up to 2 seconds.
S5
S6
S7
S8
Tilting time in seconds
OFF
OFF
OFF
OFF
no tilting / no inching mode
ON
OFF
OFF
OFF
OFF
ON
OFF
OFF
ON
ON
OFF
OFF
OFF
OFF
ON
OFF
ON
OFF
ON
OFF
OFF
ON
ON
OFF
ON
ON
ON
OFF
OFF
OFF
OFF
ON
ON
OFF
OFF
ON
OFF
ON
OFF
ON
ON
ON
OFF
ON
OFF
OFF
ON
ON
ON
OFF
ON
ON
OFF
ON
ON
ON
ON
ON
ON
ON
i
NOTES!
– A set tilt is performed in automatic as well as manual opera-
,0,0
tion.
– Inching mode of up to 2 seconds is only possible when a
tilting time has been set.
– If the extend button is pressed while the sunshade is
extending, no set tilt will be performed at the end of the
extension time.
– In IDS operating mode, tilt and inching mode cannot be
activated from the central control.These functions must be
set at the decentralised IDS control.
– Preset default setting: No tilt / no inching mode.
14. Setting of response sensitivity (Sun intensity)
Set the response to the sun intensity with the potentiometer and the delivered
adjustment tool. Carefully pull to remove the cover cap of the sunshade control.
Sunshade already extends at a low sun intensity
{
(approx. 5 kLux).
Sunshade already extends at a medium sun intensity
|
(approx. 20 kLux).
Sunshade already extends at a high sun intensity
}
(approx. 50 kLux).
15. Wind sensor monitoring / Wind sensor LED
LED lights up green: No wind alarm.
LED lights up red:
Wind alarm – the awning or blind drives have re-
tracted the sunshade. They cannot be extended
under any circumstances, even if the sun LED lights
up green.
LED flashes red:
The reset delay is activated, as the wind speed has
fallen below the threshold value. There is no longer a
wind alarm. At the end of the delay time (16 minutes),
the sunshades can be extended automatically or
manually.
LED flashes red and Warning signal! Please check the wind sensor, as it
green alternately:
has not sent any signals for the last 48 hours. In the
event of power failure, you may reset the wind sensor
check warning within 30 minutes by pressing the
manual operation button for 3 seconds. However, this
process can only be carried out once; a 48 hour
alarm cannot be reset by pressing the button. If after
this test the wind sensor LED is still flashing, it is no
longer possible to use the sunshade safely. Turn off
the control for awnings and blinds and make sure
that it cannot be operated unintentionally.
LED lights up red
Warning signal! Please check the wind sensor or
with a short pause: the wind sensor wiring. The sunshade will be re-
tracted immediately and can no longer be extended
until the cause of the fault has been corrected.
16. Lux sensor monitoring / Lux sensor LED
LED lights up green: Preset sun threshold value is reached.
LED flashes green: The reset delay is activated, as the value has fallen
below the preset sun threshold value. The awning
or blind drives retract the sunshade at the end of
the delay time (16 min.).
LED lights up red:
Preset sun threshold value is not reached.
LED flashes red:
The response delay time is activated, as the preset
sun threshold value has been exceeded.The awning
or blind drives extend the sunshade at the end of the
delay time (1 min.), as long as there is no wind alarm.
LED lights up red
Warning signal! Please check the lux sensor or the
with a short pause: lux sensor wiring.
i
NOTES!
– Lux sensor monitoring only possible when one lux sensor is
connected.
– The awning or blind drives only retract or extend the sun-
shade if the response or reset delay time has been com-
pleted without disruption.
0.34
0.46
0.57
0.69
0.80
0.92
1.03
1.15
1.26
1.38
1.49
1.61
1.72
1.84
1.95
© Vestamatic GmbH

Werbung

loading
