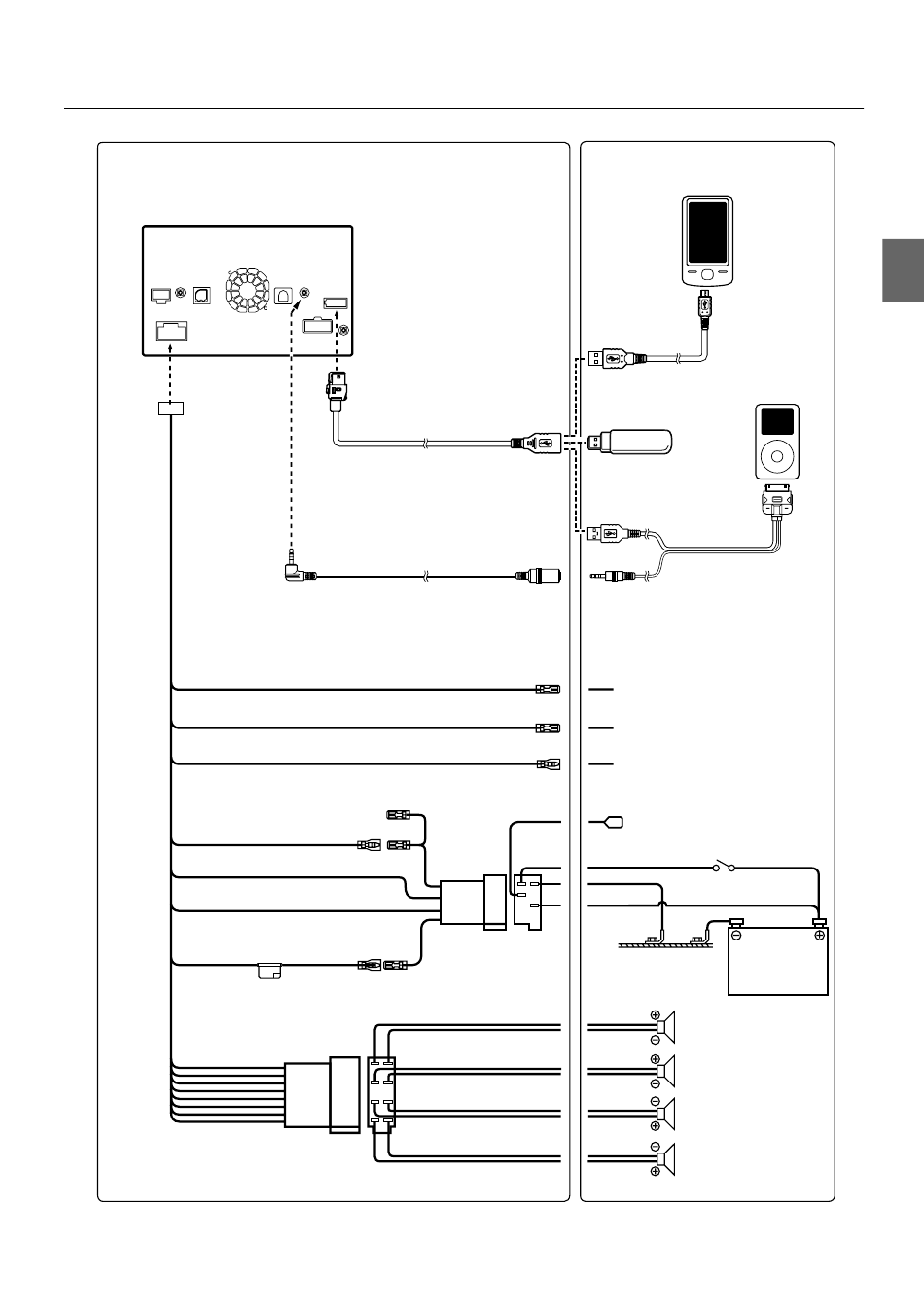

Connections 2/2
POWER ANT
USB extension cable (Included)
iPod VIDEO AV extension cable (Included with KCU-461iV)
REMOTE TURN-ON
(Blue/White)
AUDIO INTERRUPT IN
(Pink/Black)
PARKING BRAKE
(Yellow/Blue)
IGNITION
(Red)
GND
(Black)
(Blue)
BATTERY
(Yellow)
10A
Mobile Phone cable
(Sold separately)
USB Memory
(Sold separately)
To amplifier or equalizer
Not used
To the parking brake
signal lead
(Green)
(Green/Black)
(White)
(White/Black)
(Grey/Black)
(Grey)
(Violet/Black)
(Violet)
Mobile Phone
(Sold separately)
iPod/iPhone
(Sold separately)
Connection kit KCU-461iV
(Sold separately)
To power antenna
Ignition key
Battery
Rear left
Front left
Speakers
Front right
Rear right
