D-Link DFE-1005D Kurzanleitung Seite 2

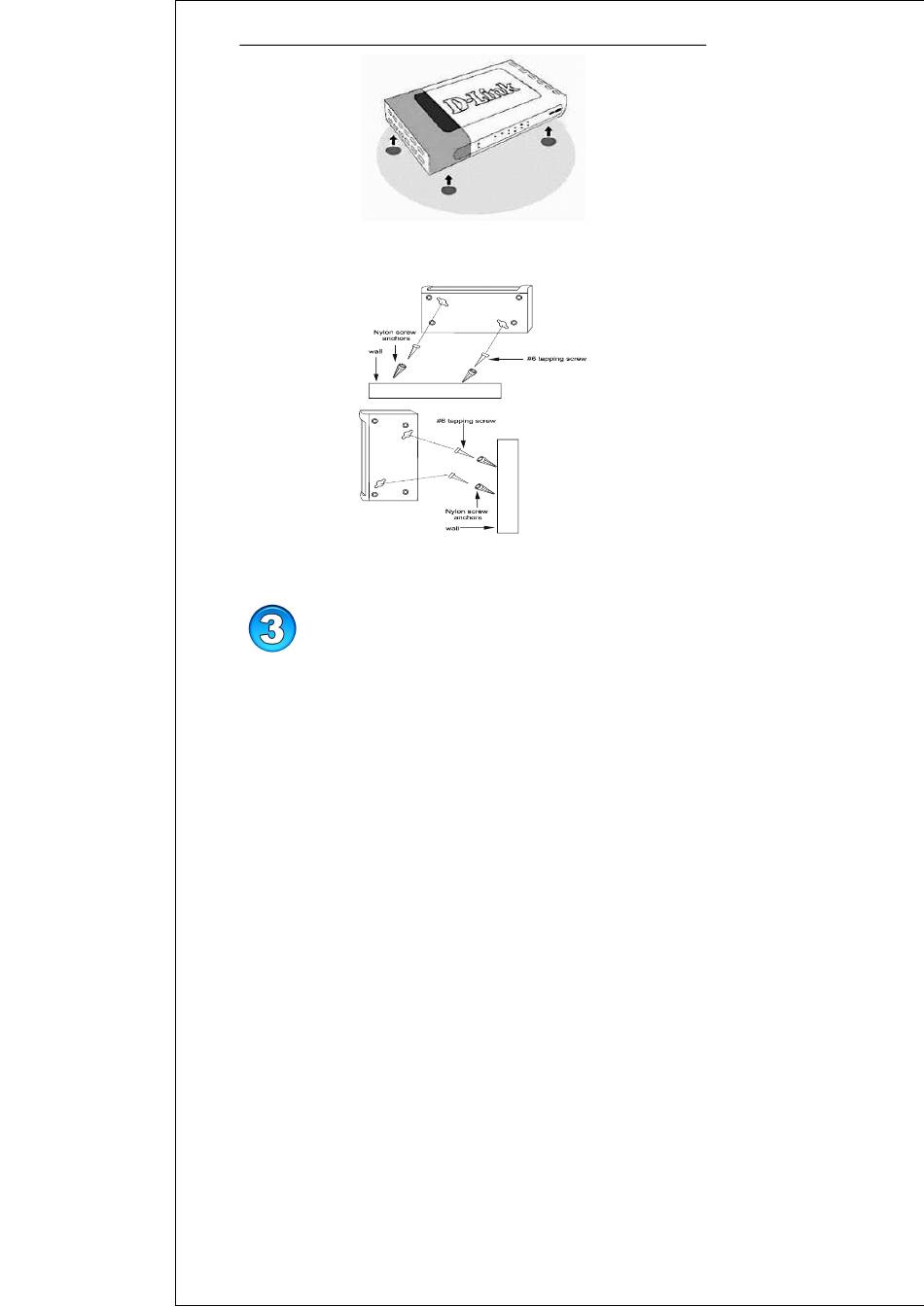

Mounting Switch on Wall
The DES-1005D can be mounted on a wall.
Two mounting slots are provided on the bottom side of the hub for this purpose.
Make sure that the front panel is exposed to allow you to view the LEDs while the
unit is on.
PC to DES- - - - 1005D PC to DES
PC to DES PC to DES
A PC can be connected to the Switch via a two-pair Category 3,4, or5 UTP/STP
straight-through cable. For 100Mbps operation Category 5 must be used. The PC
(equipped with a RJ-45 10Mb Ethernet or 100Mb Fast Ethernet NIC) should be
connected to any of the 5 ports (1 - 5) for the DES-1005D.
