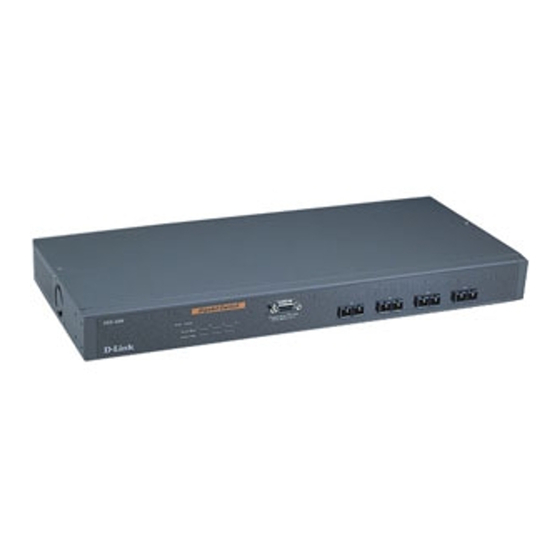

D-Link DGS-3204 Anleitung

Gigabit ethernet switch
Vorschau ausblenden
Inhaltsverzeichnis

Werbung

Quicklinks

Diese Anleitung herunterladen
DGS-3204
Gigabit Ethernet Switch
User's Guide
First Edition (October, 1999)
6DGS3204..01
Printed In Taiwan
RECYCLABLE

Werbung

Inhaltsverzeichnis
loading

Verwandte Anleitungen für D-Link DGS-3204

Inhaltszusammenfassung für D-Link DGS-3204

  • Seite 1 DGS-3204 Gigabit Ethernet Switch User’s Guide First Edition (October, 1999) 6DGS3204..01 Printed In Taiwan RECYCLABLE...
  • Seite 2 Wichtige Sicherheitshinweise Bitte lesen Sie sich diese Hinweise sorgfältig durch. Heben Sie diese Anleitung für den spätern Gebrauch auf. Vor jedem Reinigen ist das Gerät vom Stromnetz zu trennen. Vervenden Sie keine Flüssig- oder Aerosolreiniger. Am besten dient ein angefeuchtetes Tuch zur Reinigung.
  • Seite 3 Wenden Sie sich mit allen Fragen die Service und Repartur betreffen an Ihren Servicepartner. Somit stellen Sie die Betriebssicherheit des Gerätes sicher. Zum Netzanschluß dieses Gerätes ist eine geprüfte Leitung zu verwenden, Für einen Nennstrom bis 6A und einem Gerätegewicht gr• ßer 3kg ist eine Leitung nicht leichter als H05VV-F, 3G, 0.75mm2 einzusetzen.
  • Seite 4 INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING OR OTHER HAZARD. LIMITATION OF LIABILITY IN NO EVENT WILL D-LINK BE LIABLE FOR ANY DAMAGES, INCLUDING LOSS OF DATA, LOSS OF PROFITS, COST OF COVER OR OTHER INCIDENTAL, CONSEQUENTIAL OR INDIRECT DAMAGES ARISING OUT THE INSTALLATION, MAINTENANCE, USE, PERFORMANCE, FAILURE OR INTERRUPTION OF A D- LINK PRODUCT, HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY.

  • Seite 5: Limited Warranty

    This Warranty applies on the condition that the product Registration Card is filled out and returned to a D-Link office within ninety (90) days of purchase. A list of D-Link offices is provided at the back of this manual, together with a copy of the Registration Card.
  • Seite 6 D-Link office, then a proof of purchase (such as a copy of the dated purchase invoice) must be provided when requesting warranty service. The term "purchase" in this software warranty refers to the purchase transaction and resulting license to use such software.
  • Seite 7 Trademarks Copyright ©1999 D-Link Corporation. Contents subject to change without prior notice. D-Link is a registered trademark of D-Link Corporation/D- Link Systems, Inc. All other trademarks belong to their respective proprietors. Copyright Statement No part of this publication may be reproduced in any form...
  • Seite 8 VCCI Warning BSMI Warning...
  • Seite 9 ABLE OF ONTENTS                                                         ...
  • Seite 10                !           !"#  % &'' ' (   ) (  $ * + %,   -  '    &  *       * &.   *&...
  • Seite 11 (-     "#          )  #"  )   !  7   #" 0  ##  "       !#                      ,'  +  ...

  • Seite 13: About This Guide

    Gigabit Ethernet Switch User’s Guide BOUT UIDE This User’s guide tells you how to install your DGS-3204 stand-alone Switch, how to connect it to your Gigabit Ethernet network, and how to set its configuration using either built-in console interface Web-based management.
  • Seite 14 Gigabit Ethernet Switch User’s Guide ♦ Chapter 4, Connecting the Switch. Tells how you can connect the DGS-3204 to your Gigabit Ethernet network. ♦ Chapter 5, Switch Management. Talks about Local Console Management via the RS-232 DCE console port and other aspects about how to manage the Switch.
  • Seite 15 Gigabit Ethernet Switch User’s Guide NTRODUCTION This section describes the features of the DGS-3204, as well as giving some background information about Gigabit Ethernet and switching technology. Gigabit Ethernet Technolog Gigabit Ethernet is an extension of IEEE 802.3 Ethernet utilizing the same packet structure, format, and support for...
  • Seite 16 Gigabit Ethernet Switch User’s Guide improve network response times as well as significantly speed up the traffic between your subnets. Gigabit Ethernet enables fast optical fiber connections to support video conferencing, complex imaging, and similar data-intensive applications. Likewise, since data transfers occur 10 times faster than Fast Ethernet, servers outfitted with Gigabit Ethernet NIC’s are able to perform 10 times the number of operations in the same amount of time.
  • Seite 17 Gigabit Ethernet Switch User’s Guide into different segments which don’t compete with each other network transmission capacity, giving decreased load on each. The switch acts as a high-speed selective bridge between the individual segments. Traffic that needs to go from one segment to another is automatically forwarded by the switch, without interfering with any other segments.

  • Seite 18: Performance Features

    Gigabit Ethernet Switch User’s Guide Features The DGS-3204 Gigabit Ethernet Switch was designed for easy installation and high performance in an environment where traffic on the network and the number of users increase continuously. Switch features include: Ports ♦ Four Gigabit Ethernet ports of fixed 1000BASE-SX multi-mode fiber interface.
  • Seite 19 Gigabit Ethernet Switch User’s Guide ♦ 12K active MAC address entry table per device with automatic learning and aging. ♦ 8 MB packet buffer per device. ♦ Supports broadcast storm rate filtering. Management ♦ RS-232 console port out-of-band network management via a PC. ♦...
  • Seite 20 Open the shipping carton of the Switch and carefully unpack its contents. The carton should contain the following items: ♦ One DGS-3204 Gigabit Ethernet Switch ♦ Accessory pack: 2 mounting brackets and screws ♦ Four rubber feet with adhesive backing ♦ One AC power cord ♦...

  • Seite 21: Desktop Or Shelf Installation

    Gigabit Ethernet Switch User’s Guide If any item is found missing or damaged, please contact your local D-Link reseller for replacement. Setup The setup of the Switch can be performed using the following steps: ♦ The surface must support at least 3 kg.

  • Seite 22: Rack Installation

    Gigabit Ethernet Switch installed on a Desktop o Shelf Rack Installation The DGS-3204 can be mounted in an EIA standard size, 19- inch rack, which can be placed in a wiring closet with other equipment. To install, attach the mounting brackets on the switch’s front panel (one on each side) and secure them...
  • Seite 23 Installing the Gigabit Ethernet Switch in an equipment rack Power on The DGS-3204 Switch can be used with AC power sources 100 - 240 VAC, 50 - 60 Hz. The Switch ’s power supply will adjust to the local power source automatically and may be...

  • Seite 24: Power Failure

    Gigabit Ethernet Switch User’s Guide turned on without having any or all LAN segment cables connected. After the device is powered on, the LED indicators should respond as follows: ♦ The Power LED indicator will light while the Switch loads onboard software and blinks when performing a self-test.

  • Seite 25: Front Panel

    This chapter describes the front panel, rear panel and LED indicators of the Switch Front Panel The front panel of the Switch consists of 4 1000BASE-SX multi-mode fiber ports, an RS-232 communication port, and LED indicators. Figure 3-1. Front panel view of the DGS-3204 Switch Identifying External Components...

  • Seite 26: Rear Panel

    Gigabit Ethernet Switch User’s Guide ♦ Four Gigabit Ethernet ports of fixed 1000BASE-SX multi-mode fiber interface. ♦ RS-232 DCE console port for diagnosing the Switch via a connection to a PC and Local Console Management. ♦ Comprehensive LED indicators that display the conditions of the Switch and status of the network.

  • Seite 27: Right Side Panel

    Gigabit Ethernet Switch User’s Guide Right Side Panel The right side panel of the Switch contains two system fans. The following shows the right side panel of the Switch. Figure 3-3. Right side panel view of the DGS- ♦ System Fans These fans are used to dissipate heat. The sides of the system also provide heat vents to serve the same purpose.
  • Seite 28 Gigabit Ethernet Switch User’s Guide Figure 3-3. The DGS-3204 Switch LED indicators ♦ Power After turning on the power, the Power indicator on the front panel should light to indicate the Switch is loading onboard software and then begins to blink when performing a self-test. After approximately 2 seconds, the LED light again to indicate the ready state of the switch.

  • Seite 29: Connecting The Switch

    Gigabit Ethernet Switch User’s Guide ONNECTING WITCH This chapter describes how to connect the DGS-3204 to your Gigabit Ethernet network. PC to Switch A PC can be connected to the Switch via a fiber optic cable. The PC should be connected to any of the four ports (1x - 4x) of the DGS-3204.
  • Seite 30 ♦ The Link/Act LED indicator lights up upon hookup. Switch to Switch (other devices) The Switch can be connected to another switch or other devices (routers, bridges, etc.) via a fiber optic cable. Figure 4-2. DGS-3204 Switch to switch connection. Connecting The Switch...

  • Seite 31: Local Console Management

    ANAGEMENT Local Console Management Local console management involves the administration of the DGS-3204 Switch via a direct connection to the RS-232 DCE console port. From the Main Menu screen of the console program, an Administrator or Normal User (defined in the next chapter) has privilege and access to manage, control and monitor the many functions of the Switch.
  • Seite 32 Gigabit Ethernet Switch User’s Guide SNMP network supporting the STA. Using the STA, the network will prevent network loop, and automatically establish and activate a backup path in the event of a path failure. Console port (RS-232 DCE) Out-of-band management requires connecting a PC (with a SNMP management platform) to the RS-232 DCE console port of the Switch.

  • Seite 33: Operation

    Gigabit Ethernet Switch User’s Guide the Switch, making it necessary for the Switch to go through a gateway or router to reach the network manager. For security, you can set in the Switch a list of IP Addresses of the network managers that you allow to manage the Switch.

  • Seite 34: Cold Start

    Gigabit Ethernet Switch User’s Guide You can also specify which network managers may receive traps from the Switch by setting a list of IP Addresses of the authorized network managers. The following are trap types a trap manager will receive: ♦...
  • Seite 35 Gigabit Ethernet Switch User’s Guide MIBs The information stored in the Switch is known as the Management Information Base (MIB). The Switch uses the standard MIB-II Management Information Base module. Consequently, MIB values inside the Switch can be retrieved from any SNMP-based network manager. In addition to the standard MIB-II, the Switch also supports its own proprietary enterprise MIB as an extended Management Information Base.

  • Seite 36: Packet Forwarding

    Gigabit Ethernet Switch User’s Guide Packet Forwarding The Switch looks at the network configuration to forward packets. This reduces the traffic congestion on the network, because packets, instead of being transmitted to all segments, transmitted destination only. Example: if Port 1 receives a packet destined for Port 2, the Switch transmits that packet through Port 2 only, and transmits nothing through Port 1.
  • Seite 37 Gigabit Ethernet Switch User’s Guide Aging Time The Aging Time is a parameter that affects the auto-learn process of the Switch in terms of the network configuration. Dynamic Entries, which make up the auto-learned-node address, are aged out of the address table according to the Aging Time that you set.
  • Seite 38 Gigabit Ethernet Switch User’s Guide there is more than one path, forwarded packets will loop indefinitely. STA detects any looped path and selects the path with the lowest path cost as the active path, while blocking the other path and using it as the backup path.
  • Seite 39 Gigabit Ethernet Switch User’s Guide ♦ Designated Bridge From each LAN segment, the attached Bridge that has the lowest Root Path Cost to the Root Bridge is the Designated Bridge. It forwards data packets for that LAN segment. In cases where all Switches have the same Root Path Cost, the switch with the lowest Bridge Identifier becomes the Designated Bridge.
  • Seite 40 Gigabit Ethernet Switch User’s Guide ♦ Path Cost This is a changeable parameter and may be modified according to the STA specification. User-Changeable Parameters The factory default setting should cover the majority of installations. However, it is advisable to keep the default settings as set at the factory;...
  • Seite 41 Gigabit Ethernet Switch User’s Guide ♦ Bridge Forward Delay The Forward Delay can be from 4 to 30 seconds. This is the time any port on the Switch spends in the listening state while moving from the blocking state to the forwarding state. Observe the following formulas when you set the above parameters: 1.
  • Seite 42 Gigabit Ethernet Switch User’s Guide STA setup can be somewhat complex. Therefore, you are advised to keep the default factory settings and STA will automatically assign root bridges/ports and block loop connections. However, if you need to customize the STA parameters, refer to Table 5-1.
  • Seite 43 Gigabit Ethernet Switch User’s Guide Figure 5-2. After Applying the STA Rule Switch Management...
  • Seite 44 Gigabit Ethernet Switch User’s Guide STA parameters Settings Effects Comment Bridge Priority lower the #, Increases chance of Avoid, if the switch is higher the becoming the Root used in workgroup priorit Bridg level of a large network 1 - 10 sec. No effect, if not Never set greater than Hello Time...
  • Seite 45 Gigabit Ethernet Switch User’s Guide SING THE ONSOLE NTERFACE Your Gigabit Ethernet Switch supports console management interface that allows you to set up and control your Switch, either with an ordinary terminal (or terminal emulator), or over the network using the TCP/IP TELNET protocol.
  • Seite 46 Gigabit Ethernet Switch User’s Guide ♦ VT-100/ANSI compatible ♦ Arrow keys enabled ♦ 9,600 baud ♦ 8 data bits ♦ No parity ♦ One stop bit You can also access the same functions over a TELNET interface. Once you have set an IP address for your Switch, you can use a TELNET program (in a VT-100 compatible terminal mode) to access and control the Switch.
  • Seite 47 Gigabit Ethernet Switch User’s Guide to move between selected items. It is recommended that you use the tab key and backspace key for moving around console. 4. Items in UPPERCASE are commands. Moving the selection to a command and pressing Enter will execute that command, e.g.
  • Seite 48 Gigabit Ethernet Switch User’s Guide Figure 6-1. Initial Screen, first time connecting to the Switch Press Enter (Note: Leave the Username and Password fields blank). You will see the main menu shown below: Using the Console Interface...
  • Seite 49 Gigabit Ethernet Switch User’s Guide Figure 6-2. Main Menu The first user automatically gets Administrator privileges (See Table 6-1). It is recommended to create at least one Administrator-level user for the Switch. Steps to Create Administrator or Normal User Access From the screen above, move the cursor to User Account Management press...
  • Seite 50 Gigabit Ethernet Switch User’s Guide Administrator and Normal User Privileges. There are two levels of user privileges: Administrator and Normal User. Some menu selections available to users with Administrator privileges may not be available to Normal Users. The main menus shown are the menus for the two types of users: The following table summarizes Administrator and Normal User privileges:...

  • Seite 51: Save Configuration

    Gigabit Ethernet Switch User’s Guide menu (seen below). Pressing any key will return to the main menu. You are now ready to operate the Switch. Save Configuration In order to retain any modifications made in the current session, it is necessary to choose Save Configuration from the main menu.
  • Seite 52 Gigabit Ethernet Switch User’s Guide 1. Type in your Username and press Enter. 2. Type in your Password and press Enter. 3. The main menu screen will be displayed based on your Administrator or Normal User access level privilege. Add/Modify User Account To add or change your user password: 1.
  • Seite 53 Gigabit Ethernet Switch User’s Guide Figure 6-5. Add/Modify User Account screen 3. Type in your Username and press Enter. 4. If you are a new user, type in the Old Password and press Enter. 5. Type in the New Password you have chosen, and press Enter.
  • Seite 54 Gigabit Ethernet Switch User’s Guide View/Delete User Account Access to the console, whether using the console port or via TELNET, is controlled using a user name and password. Up to three user names can be defined. The console interface will not let you delete the current logged-in user, however, in order to prevent accidentally deleting all of the users with Administrator privilege.

  • Seite 55: System Configuration

    System Configuration, Firmware and Configuration Update, System Utilities, and SNMP Configuration menus and their respective sub-menus. System Configuration Choose System Configuration to access the first item on the DGS-3204 main menu. The following menu appears: Using the Console Interface...
  • Seite 56 Gigabit Ethernet Switch User’s Guide Figure 6-7. System Configuration menu You will need to change some settings to allow you to be able to manage the Switch from an SNMP-based Network Management System such as SNMP v1 or to be able to access the Switch using the TELNET protocol.

  • Seite 57: Subnet Mask

    Gigabit Ethernet Switch User’s Guide Figure 6-8. IP Configuration screen Each of the fields on this screen takes effect the next time the system is restarted. Fields that can be set include: ♦ BOOTP Service Determines whether the Switch should send out a BOOTP broadcast request when it is powered up.
  • Seite 58 Gigabit Ethernet Switch User’s Guide Switch to be accessible outside your local network, you can leave this field blank. Configure Console You can use the Console Configuration screen to choose whether to use the Switch’s RS-232C serial port for console management or for out-of-band TCP/IP communications using SLIP, and to set the bit rate used for SLIP communications.

  • Seite 59: Serial Port

    Gigabit Ethernet Switch User’s Guide ♦ Console Timeout This setting for the restart of the console is 15 mins, 30 mins, 45 mins, 60 mins, or Never. ♦ Serial Port Determines whether the serial port should be used for out-of-band (SLIP) management or for console management, starting from the next time the Switch is restarted.

  • Seite 60: System Name

    Gigabit Ethernet Switch User’s Guide Figure 6-10. Switch Configuration screen The fields you can set are: ♦ System Name Corresponds to the SNMP MIB II variable , and is used to give a name system.sysName to the Switch for administrative purposes. The Switch’s fully qualified domain name is often used, provided a name has been assigned.
  • Seite 61 Gigabit Ethernet Switch User’s Guide The Configure Advanced Switch Features screen allows you to enable or disable auto-partitioning on all ports as well as to enable or disable head of line blocking prevention. Press ADVANCE SETTINGS on the System Configuration window to access the Configure Advanced Switch Features screen: Figure 6-11.
  • Seite 62 Gigabit Ethernet Switch User’s Guide Configure Ports The port configuration screen allows you to change the port state in the case when you would like to partition a port, or for observation, device repair, or security reasons. Great caution, however, must be observed when partitioning a port;...
  • Seite 63 Gigabit Ethernet Switch User’s Guide 4. In the Flow Ctrl field, toggle Off or On. 5. In the Priority field, select Normal, High or Low. 6. In the Broadcast Storm Rising Action and Broadcast Storm Falling Action fields, set the desired setting. 7.
  • Seite 64 Gigabit Ethernet Switch User’s Guide Do Nothing, Blocking or Blocking-Trap. The Do Nothing setting causes the switch to operate normally, in other words, ignore the broadcast storm condition. The Blocking setting causes the port to drop all broadcast frames, thus isolating the broadcast storm. Blocking-Trap performs the same action as Blocking, except it also sends a trap to the designated Trap Recipient informing them of the situation.
  • Seite 65 Gigabit Ethernet Switch User’s Guide Choose Configure Port Mirroring System Configuration menu access Port Mirroring Configuration screen: Figure 6-13. Port Mirroring Configuration screen To configure a mirror port, select the port from where you want to copy frames in the Source Port field. Then select the port which receives the copies from the source port in the Target Port field.
  • Seite 66 Gigabit Ethernet Switch User’s Guide explained in Chapter 5’s Switch Management, see Operation Levels: On the Bridge level, and User-Changeable Parameters. It is recommended that you read these sections, as well as the introductory section in the same chapter entitled Spanning Tree Algorithm before changing any of the parameters.
  • Seite 67 Gigabit Ethernet Switch User’s Guide Figure 6-15. STP Parameters Setting screen 3. Change the Disabled setting to Enabled in the Spanning Tree Protocol field. 4. Enter the Bridge Max Age in the Max Age(6-40 sec) field. 5. Enter the Bridge Hello Time in the Hello Time(1-10 sec) field.
  • Seite 68 Gigabit Ethernet Switch User’s Guide ♦ Time Since Topology Changes(sec) Read-only object displays the last time changes were made to the network topology. These changes usually occur when backup paths are activated due to primary path failures. ♦ Topology Change Count Read-only object displays the number of times (since the current management session with the device was started) changes were...
  • Seite 69 Gigabit Ethernet Switch User’s Guide ♦ Hold Time(Sec) Read-only object displays the time interval during which no more than two configuration BPDUs shall be transmitted by the bridge. ♦ Root Priority Read-only object displays the priority number of the root bridge of the Spanning Tree.
  • Seite 70 Gigabit Ethernet Switch User’s Guide This is the time any port on the Switch spends in the listening state while moving from the blocking state to the forwarding state. ♦ Bridge Priority(0-65535 Sec) A Bridge Priority is a read-write object that can be set from 0 to 65535. This is the priority number of the bridge.
  • Seite 71 Gigabit Ethernet Switch User’s Guide Figure 6-16. STP Custom Setting screen 3. Change the Disabled setting of the STP State field to Enabled. 4. Set the path cost for the port between 1 and 65535 in the Cost field. 5. Set the priority for the port between 0 and 255 in the Priority field.
  • Seite 72 Gigabit Ethernet Switch User’s Guide you to stop or start address learning as well as to select an age-out time of the MAC address in the selected address table. This screen also permits you to access two additional configuration screens from the menu at the bottom of the window.
  • Seite 73 Gigabit Ethernet Switch User’s Guide your network since any packet coming from an unknown source address will be dropped by the Switch. ♦ MAC Address Age-out Time Enter the desired MAC address age-out time in this field (1 to 9999 minutes) . The Custom Forwarding Table displays a list of manually defined static MAC address entries.
  • Seite 74 Gigabit Ethernet Switch User’s Guide ♦ Under the Destination MAC Address heading a total of ten destination addresses will be seen per page. The Switch can hold up to 256 entries. ♦ Under the Destination Port heading a port number will be displayed for each corresponding destination address.
  • Seite 75 Gigabit Ethernet Switch User’s Guide defined here briefly as follows. Dynamic Filtering is defined when a dynamic entry is created by the Learning Process as a result of observation of network traffic in the Filtering Database. Static Filtering is defined as static entries that may be added and removed from the Filtering Database by the user.
  • Seite 76 Gigabit Ethernet Switch User’s Guide Firmware and Configuration Update Switch capable obtaining boot-time configuration information, as well as updated versions of its internal firmware, using TFTP (the Trivial File Transfer Protocol) and BOOTP (the BOOTstrap Protocol). You can use the Firmware and Configuration Update screen to control this feature.

  • Seite 77: System Utilities

    Gigabit Ethernet Switch User’s Guide ♦ TFTP Server Address The IP address of the TFTP server where the configuration file is located. This entry is used only if the Firmware Update is set to Enabled. If BOOTP Service (see the IP Configuration screen under Configure IP Address on the System Configuration menu) is set to Enabled, the address will be obtained from the BOOTP server.
  • Seite 78 Gigabit Ethernet Switch User’s Guide Figure 6-21. System Utilities menu Choose Ping Test to access the following screen: Figure 6-22. Ping Test screen Using the Console Interface...

  • Seite 79: Snmp Configuration

    Gigabit Ethernet Switch User’s Guide The fields you can set are: ♦ Destination IP Address The IP address to be Pinged. ♦ Repetition Amount of times the Switch should send the Ping (1-255). If zero is chosen, the Switch will continue Pinging indefinitely.
  • Seite 80 Gigabit Ethernet Switch User’s Guide community name settings you use in your network management system. Choose SNMP Configuration from the main menu to access the following screen: Figure 6-23. SNMP Configuration screen The following parameters can be set: ♦ Community String/SNMP Community String...
  • Seite 81 Gigabit Ethernet Switch User’s Guide ♦ IP Address The IP address of network management station to receive the trap. Switch Monitoring The Switch allows you to keep statistics on the operation of each port. The statistics obtained can be used to monitor the conditions and general efficiency of the Switch.
  • Seite 82 Gigabit Ethernet Switch User’s Guide Figure 6-24. Port Utilization screen The information displayed above includes: ♦ Update Interval Select the desired update increment setting from: 1 sec, 5 sec, 15 sec, 30 sec, 1 min, or Suspend. ♦ TX/sec The number of good bytes sent from the respective port per second.
  • Seite 83 Gigabit Ethernet Switch User’s Guide 1. Choose Network Monitoring from the main menu. 2. Choose Traffic Statistics from Network Monitoring menu. 3. Choose Port Traffic Statistics from the Traffic Statistics menu. Figure 6-25. Port Traffic Statistics screen The information displayed above includes: ♦...
  • Seite 84 Gigabit Ethernet Switch User’s Guide ♦ % Utilization This shows the percentage of available bandwidth each port is using over the amount of time specified by the update interval. ♦ Bytes Recv. The number of good bytes received. This also includes local and dropped packets. ♦...
  • Seite 85 Gigabit Ethernet Switch User’s Guide Figure 6-26. Port Error Packet Statistics tabl The information displayed above includes: ♦ Ports This field always displays “1 to 4 ” in this 4-port Switch version. ♦ Update Interval Select the desired update increment setting from: 1 sec, 5 sec, 15 sec, 30 sec, 1 min, or Suspend.
  • Seite 86 Gigabit Ethernet Switch User’s Guide ♦ Jabbers The number of frames with length more than 1518 bytes and with CRC error or misalignment (bad framing). ♦ Late Collisions The number of collisions that occur at or after the 64 byte (octet) in the frame. ♦...
  • Seite 87 Gigabit Ethernet Switch User’s Guide Figure 6-27. Port Packet Analysis Statistics tabl The information displayed above includes: ♦ Port Enter the desired port in this field. ♦ Update Interval Select the desired update increment setting from: 1 sec, 5 sec, 15 sec, 30 sec, 1 min, or Suspend. ♦...
  • Seite 88 Gigabit Ethernet Switch User’s Guide ♦ TX Octets The number of good bytes sent from the respective port. ♦ RX Octets The number of good bytes received. This also includes local and dropped packets. ♦ Total RX The number of bytes received, good and bad.
  • Seite 89 Gigabit Ethernet Switch User’s Guide Figure 6-28. Forwarding Tabl To browse by MAC address, select MAC address in the Search by field, enter the desired MAC address in the next field, and then press FIND. To browse by port number, select Port in the Search by field, enter the desired port in the next field, and then press FIND.

  • Seite 90: Restart System

    Gigabit Ethernet Switch User’s Guide Factory Reset to Default Value (which sets all of the Switch’s parameters to what they were when the Switch was delivered from the factory). Restart System To perform a system reset, choose Restart System from the main menu.
  • Seite 91 Gigabit Ethernet Switch User’s Guide enabled/disabled settings of ports, security settings, etc.) will be erased and restored to their factory default settings. 1. Choose Factory Reset to Default Value from the main menu. The following screen appears: Figure 6-30. Factory Reset to Default Value screen 2.
  • Seite 93 Gigabit Ethernet Switch User’s Guide ASED ETWORK ANAGEMENT Introduction DGS-3204 offers embedded Web-based (hypertext) interface allowing users to manage the Switch from anywhere on the network through a standard browser such Netscape Navigator/Communicator or Microsoft Internet Explorer. The Web browser acts as a universal access tool and can communicate directly with the Switch using HTTP protocol.

  • Seite 94: Getting Started

    Gigabit Ethernet Switch User’s Guide Getting Started The first step in getting started in using Web -based management for your Switch is to secure a browser. A Web browser is a program which allows a person to read hypertext, for example, Netscape Navigator or Microsoft Internet Explorer.
  • Seite 95 Gigabit Ethernet Switch User’s Guide categories for Switch management. Clicking on the black button on the far left side of each category (except Help, which directly connects you to a help program) causes a list of options to appear underneath the major category.

  • Seite 96: System Description

    Gigabit Ethernet Switch User’s Guide questions with the system in the System Contact field, a name for the system in the System Name field, and the physical location of the Switch in the System Location field. Then click Apply. The remaining information in the screen includes: ♦...
  • Seite 97 Gigabit Ethernet Switch User’s Guide TCP/IP Setup You can change the IP Address, Subnet Mask, and Default Gateway on the Switch. If you are not using BOOTP, enter the IP Address, Subnet Mask, and Default Gateway of the Switch. If you enable BOOTP, you do not need to configure any IP parameters because a BOOTP server automatically assigns IP configuration parameters to the Switch.
  • Seite 98 Gigabit Ethernet Switch User’s Guide ♦ Send Bootp Request Upon Power Up Toggle between Enable and Disable to determine whether the IP address, subnet mask, and default gateway settings are automatically assigned by the BOOTP server or manually. Advanced The Switch features head of line (HOL) blocking prevention, a function designed to prevent forwarding a packet to a “blocking”...
  • Seite 99 Gigabit Ethernet Switch User’s Guide Ports Setup Select the port you want to configure by clicking on the port in the Switch front panel display at the top of the screen or by using the screen displayed above. Follow these steps: 1.
  • Seite 100 Gigabit Ethernet Switch User’s Guide 3. Configure the Flow Control setting for the port. Select On for the switch to automatically negotiate the correct flow control setting for this port. Select Off for no flow control. 4. Configure the Priority setting for packets passing through this port, using IEEE 802.1 tagging.
  • Seite 101 Gigabit Ethernet Switch User’s Guide view details about the packets passing through the first port. To configure a mirror port, select Enabled from the Status pull-down list. In the first field, select the source port from where you want to copy frames. In the second field, select the port which receives the copies from the source port.
  • Seite 102 Gigabit Ethernet Switch User’s Guide The information is described as follows: ♦ IP Address The IP address of the trap receiving station. ♦ Community A user-defined community name. SNMP Manager To use the functions on this screen, enter the desired community string for SNMP management on the Switch in the Community String field and the desired...
  • Seite 103 Gigabit Ethernet Switch User’s Guide ♦ Community String A user-defined SNMP community name. ♦ Access Right The permitted access of Read Only or Read/Write using the SNMP community name. Download Firmware and configuration updating can be done from the screen above. The information is described as follows: ♦...
  • Seite 104 Gigabit Ethernet Switch User’s Guide ♦ Firmware Update Determines whether or not the Switch should download its new firmware code the next time it is booted. ♦ File Name The path and the name of the file which holds the new firmware code on the TFTP server. ♦...
  • Seite 105 Gigabit Ethernet Switch User’s Guide This screen allows you to select the protocol for communicating through the console port, Console or SLIP, in the Serial Port field. Use SLIP for out-of-band management. You can also specify the refresh rate in the Console Timeout field and the desired setting in the Baud Rate field.
  • Seite 106 Gigabit Ethernet Switch User’s Guide Save To save all changes made in the current session to the Switch’s flash memory, click the Apply button on this screen. Web-Based Network Management...
  • Seite 107 Gigabit Ethernet Switch User’s Guide Reset Doing a remote reset is equivalent to turning the Switch off and on again. All parameters are returned to the values stored in EEPROM. Bridge This is the second category of the Web-based management program. The Bridge options are listed below along with explanations for each one.
  • Seite 108 Gigabit Ethernet Switch User’s Guide Switch STP The Switch supports 801.2d Spanning Tree Protocol, which allows you to create alternative paths (with multiple switches or other types of bridges) in your network. See the Spanning Tree Algorithm section of the “Switch Management” chapter for a detailed explanation.
  • Seite 109 Gigabit Ethernet Switch User’s Guide ♦ Time Since Topology Changes(sec) Read-only object displays the last time changes were made to the network topology. These changes usually occur when backup paths are activated due to primary path failures. ♦ Topology Change Count Read-only object displays the number of times (since the current management session with the device was started) changes were...
  • Seite 110 Gigabit Ethernet Switch User’s Guide ♦ Hold Time(Sec) Read-only object displays the time interval during which no more than two configuration BPDUs shall be transmitted by the bridge. ♦ Root Priority(Sec) Read-only object displays the priority number of the root bridge of the Spanning Tree.
  • Seite 111 Gigabit Ethernet Switch User’s Guide seconds. This is the time any port on the Switch spends in the listening state while moving from the blocking state to the forwarding state. ♦ Bridge Priority (0-65535 Sec) The Bridge Priority is a read-write object that can be from 0 to 65535. This is the priority number of the bridge.
  • Seite 112 Gigabit Ethernet Switch User’s Guide ♦ STP State The Spanning Tree Protocol state for a selected port can either be Enabled or Disabled. ♦ Cost The Path Cost is a changeable parameter and may be modified according to the Spanning Tree Algorithm specification.
  • Seite 113 Gigabit Ethernet Switch User’s Guide MAC forwarding allows the Switch to permanently forward outbound traffic to specific destination MAC addresses over a specified port. You can also use this feature to restrict inbound traffic based on source MAC addresses. Custom FDB To use the MAC forwarding function, enter the MAC address of the device to which the specified port permanently forwards traffic in the Destination...

  • Seite 114: Mac Address

    Gigabit Ethernet Switch User’s Guide ♦ Destination Port port number that permanently forwards traffic from the specified device, regardless of the device's network activity or current network congestion. Filter Table MAC filtering allows the Switch to block inbound traffic from unknown or unwanted devices by mapping a port to a source MAC address.
  • Seite 115 Gigabit Ethernet Switch User’s Guide ♦ Filter Status One filter status option is available, Source/Destination. Monitor This third category Web-based management program. The Monitor options are listed below along with explanations for each one. Overview The information on the Switch Statistics table is described as follows: ♦...
  • Seite 116 Gigabit Ethernet Switch User’s Guide ♦ RX frames/sec Counts all valid frames received on the port per second since the Switch was last rebooted. ♦ % of Utilization This shows the percentage of available bandwidth each port is using over the amount of time specified by the update interval.
  • Seite 117 Gigabit Ethernet Switch User’s Guide ♦ Utilization Current utilization for the port, as a percentage of total available bandwidth. ♦ Last Screen MAC The MAC address of the most recent screen. Traffic in Bytes: ♦ Bytes Sent Counts number bytes successfully sent from the port.
  • Seite 118 Gigabit Ethernet Switch User’s Guide Utilization The information is described as follows: ♦ Last Detected Source Address MAC address of the last source accessed. Web-Based Network Management...
  • Seite 119 Gigabit Ethernet Switch User’s Guide Errors The information is described as follows: ♦ Link Status Indicates whether the port is online working (1000/Full/Flow control 1000/Full/Flow control on) or not (Link Down).. ♦ Jabber Counts frames longer than the maximum 1518 bytes (octets) with either bad framing or an invalid CRC.
  • Seite 120 Gigabit Ethernet Switch User’s Guide ♦ Late Collision Counts collisions that occur at or after the 64 byte (octet) in the frame. This may indicate that delays on your Ethernet are too long, and you have either exceeded the repeater count or cable length specified in the Ethernet standard.
  • Seite 121 Gigabit Ethernet Switch User’s Guide Analysis The information is described as follows: ♦ Update Interval The polling time interval can be set from 5 to 60 seconds, in 5 second increments. Click the Submit button once the update interval has been selected. ♦...
  • Seite 122 Gigabit Ethernet Switch User’s Guide 255 octets in length inclusive (excluding framing bits but including FCS octets). ♦ 256-511 The total number of packets (including bad packets) received that were between 256 and 511 octets in length inclusive (excluding framing bits but including FCS octets).
  • Seite 123 Gigabit Ethernet Switch User’s Guide ♦ Unicast The total number of good packets that were directed to a unicast address. Note that this does not include dropped unicast packets ♦ Multicast The total number of good packets received that were directed to a multicast address. Note that this number does not include packets directed to the broadcast address ♦...
  • Seite 124 Gigabit Ethernet Switch User’s Guide To add or change a User Account, fill in the appropriate information in the User Name, Old Password, New Password, and Confirm New Password fields. Then select General User or Administrator in the Access Level control and click Apply. To delete a User Account, click the “X”...

  • Seite 125: Technical Specifications

    Gigabit Ethernet Switch User’s Guide ECHNICAL PECIFICATIONS General Standards: IEEE 802.3z on each port IEEE 802.3 Frame types: Transparent IEEE 802.3 MAC layer frame size: 64– 1518 bytes Protocol: CSMA/CD Data Transfer Gigabit Ethernet: Rate: 2000Mbps (full duplex) Topology: Star Network 525 m 50/125-mm, 275 m 62.5/125-mm multimode Cables:...
  • Seite 126 Gigabit Ethernet Switch User’s Guide Physical and Environmental AC inputs: 100 – 240 VAC, 50/60 Hz (internal universal power supply) Power 30 watts maximum Consumption DC fans: 2 built-in 40 x 40 mm fans Operating 0 ~ 50 degrees Celsius Temperature: Storage -20 ~ 60 degree Celsius...
  • Seite 127 Gigabit Ethernet Switch User’s Guide Performance Rate: MAC Address Learning: Self-learning, auto-aging Technical Specifications...
  • Seite 128 Gigabit Ethernet Switch User’s Guide INDEX    0$(6 *3'(%       !2+#2 +8$ /$7+#+%+'# '7  !  " #$%&'()*  !2+#2 +8$ (4#2$ '7       !11$0+4%+#2 #$%&'() 1'',     ,(':1$8*      !#416*+* ...
  • Seite 129 Gigabit Ethernet Switch User’s Guide (+/2$ '(&4(/ $146   $.  34#2+#2 %3$ ('%'.'1 (+/2$ ;$11' +8$   4(48$%$(*   (+/2$ ;$11' +8$   $. '1/ %4(%  '11+*+'#*   (+/2$ $0$1 ! ,$(4%+'# '88-#+%6  $0$1 '88-#+%6 #48$ /$7+#+%+'# ''% (+/2$...
  • Seite 130 Gigabit Ethernet Switch User’s Guide = .'8,4%+:1$ %$(8+#41 $*%+#4%+'# ! !//($** '#*'1$  $*%+#4%+'# '(%    '#*'1$ '#7+2-(4%+'#  +8$#*+'#*  '#*'1$  +#/+.4%'(  '&#1'4/  '#*'1$ ,'(%    (',,$/ (48$*   6#48+. 7+1%$(+#2  '#*'1$ ,'(% *$%%+#2*  6#48+.
  • Seite 131 Gigabit Ethernet Switch User’s Guide 1'& %(1  11-*%(4%+'# '7 !  #%('/-.%+'# ?  ' '(&4(/ $146  4//($**  '(&4(/ $146  *$.   !//($**     '(&4(/ $146  $.   !//($**$* 4#/ 9 '(&4(/ $146*$.   '88-#+%6 948$*  '(&4(/+#2 4:1$  ...
