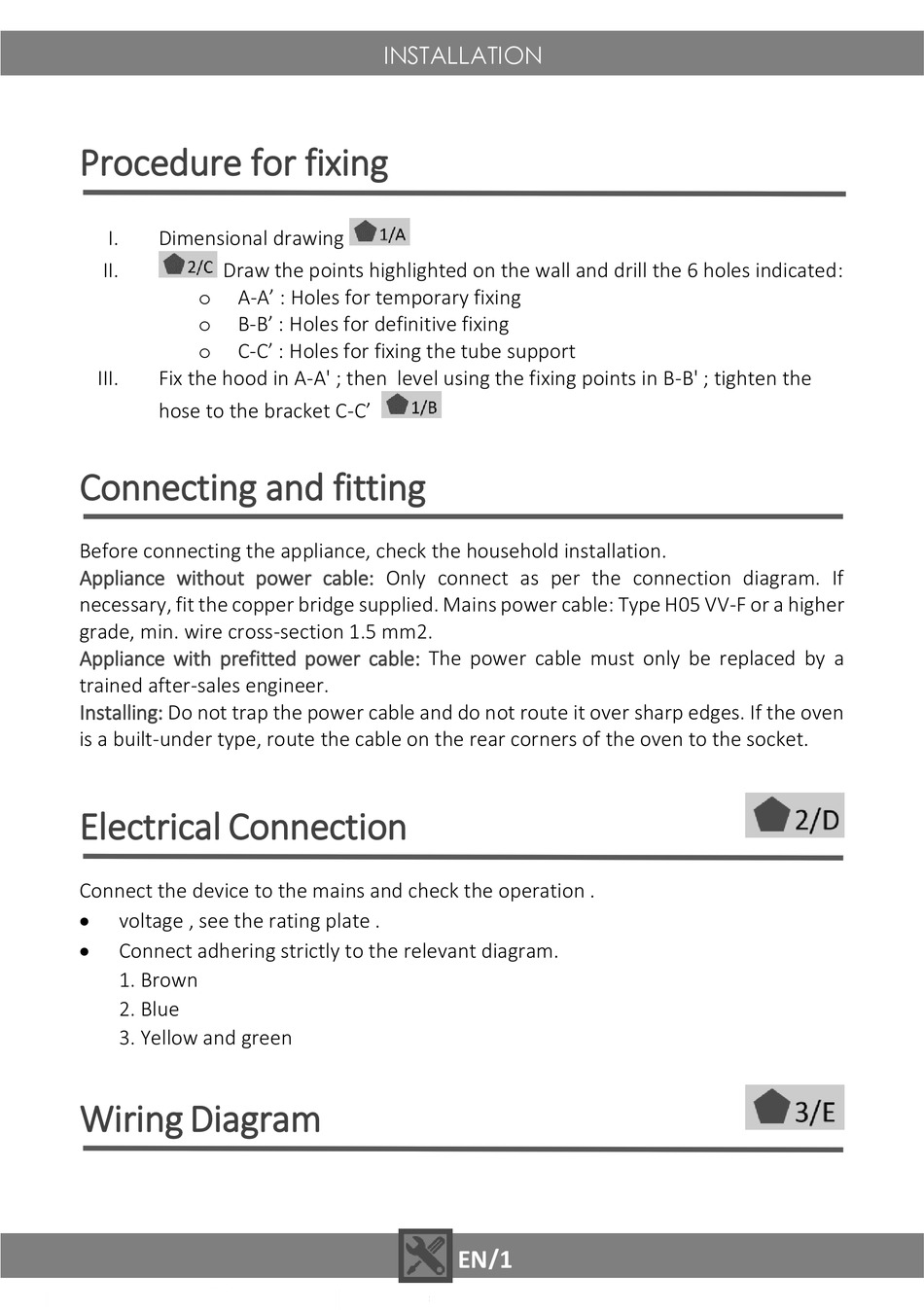

Procedure for fixing
I. Dimensional drawing
II. Draw the points highlighted on the wall and drill the 6 holes indicated:
o
A-A' : Holes for temporary fixing
o
B-B' : Holes for definitive fixing
o
C-C' : Holes for fixing the tube support
III. Fix the hood in A-A' ; then level using the fixing points in B-B' ; tighten the
hose to the bracket C-C'
Connecting and fitting
Before connecting the appliance, check the household installation.
Appliance without power cable:
necessary, fit the copper bridge supplied. Mains power cable: Type H05 VV-F or a higher
grade, min. wire cross-section 1.5 mm2.
Appliance with prefitted power cable:
trained after-sales engineer.
Installing: Do not trap the power cable and do not route it over sharp edges. If the oven
is a built-under type, route the cable on the rear corners of the oven to the socket.
Electrical Connection
Connect the device to the mains and check the operation .

voltage , see the rating plate .

Connect adhering strictly to the relevant diagram.
1. Brown
2. Blue
3. Yellow and green

Wiring Diagram

INSTALLATION
Only connect as per the connection diagram. If
The power cable must only be replaced by a
EN/1
