6
9. Push the lamp wires gently into the connectors and turn the
unit ON. It does not matter which wire goes into which socket.
CAUTION: Keep your hands away from the drill while the unit is on.
Do not stare into the laser beam.
10. Move the laser-arm so that laser beam is pointing into the
hole in the white paper on the work table.
11. Turn the unit OFF and tighten the screws underneath the
platform to secure the arm into position.
12. Re-align the work table housing and the motor housing and
push in the work table lock-pin. Slowly push the platform
down until the work table lock-pin clicks into place. Turn the
unit ON and check if the laser beam aligns with the hole in
the paper. If the laser beam does not align with the hole,
repeat steps 8 through 11.
13. Remove the paper from the work table. Adhere the two
labels provided to the back of the unit, directly above the
serial number label. The laser light should illuminate the tip of
the drill when turned on.
VII. Accessories
PX102 100 Medium Pins and Sleeves
PX116 100 Long Pins and Sleeves
PX117 100 Short Pins and Sleeves
PX114S 1000 Long Pins and Sleeves
PX112S 1000 Medium Pins and Sleeves
PX115 1000 Short Pins and Sleeves
PX145 100 Self-Articulating Pins and Sleeves
PX144 1000 Self-Articulating Pins and Sleeves
PX145S 1000 Self-Articulating Sleeves
PX146 3 Flexible Molds
PX147 1 Flexible Mold – Full Arch
PX148 2 Flexible Molds – Left and Right Quadrant
PX200 Pindex System Handsaw and Blades
PX125 Pindex Laser Retro-fit Kit
VIII. Replacement parts
PX119 3 Carbide Drills
PX120 1 Reamer
PX124 10 Bulbs
PX201 12 Replacement Blades for Handsaw,
0.007"/ 0.18mm
PX202 12 Replacement Blades for Handsaw, 0.010"/
0.25mm
PX301 100 Replacement Blades for Handsaw, 0.007"/
0.18mm
PX302 100 Replacement Blades for Handsaw, 0.010"/
0.25mm
P38 12 Proxima
®
Saw Blades
IX. Unit specifications
Environmental and electrical conditions
• Indoor use only
• Transient over voltages category II.
• Pollution degree 2.
• Class 1 equipment
• Supply voltage fluctuations not to exceed ±10% of nominal
Transportation and storage conditions
• Temperature –40°C to +70°C (-40°F to 158°F)
Pindex Laser
Cat. No. Net Weight Voltage ± 10% Current
PX113L 8.25 lbs./ 115
3.7 kg. 60 HZ
PXM113L 8.25 lbs./ 100
3.7 kg. 50/60 HZ
P113LCE 8.25 lbs./ 220/230
3.7 kg. 50/60 HZ
P113LUK 8.25 lbs./ 220/230
3.7 kg. 50/60 HZ
Relative humidity 10% to 100% including condensation
• Atmospheric Pressure 500 hPa to 1060 hPa
(7.25 psi to 15.4 psi)
Operational ambient conditions
• Temperature 5°C to +40°C (41°F to 104°F)
• Relative humidity 50% to 80%
• Atmospheric Pressure 700 hPa to 1060 hPa
(10.2 psi to 15.4 psi)
• Altitude ≤ 2000m (6561 ft)

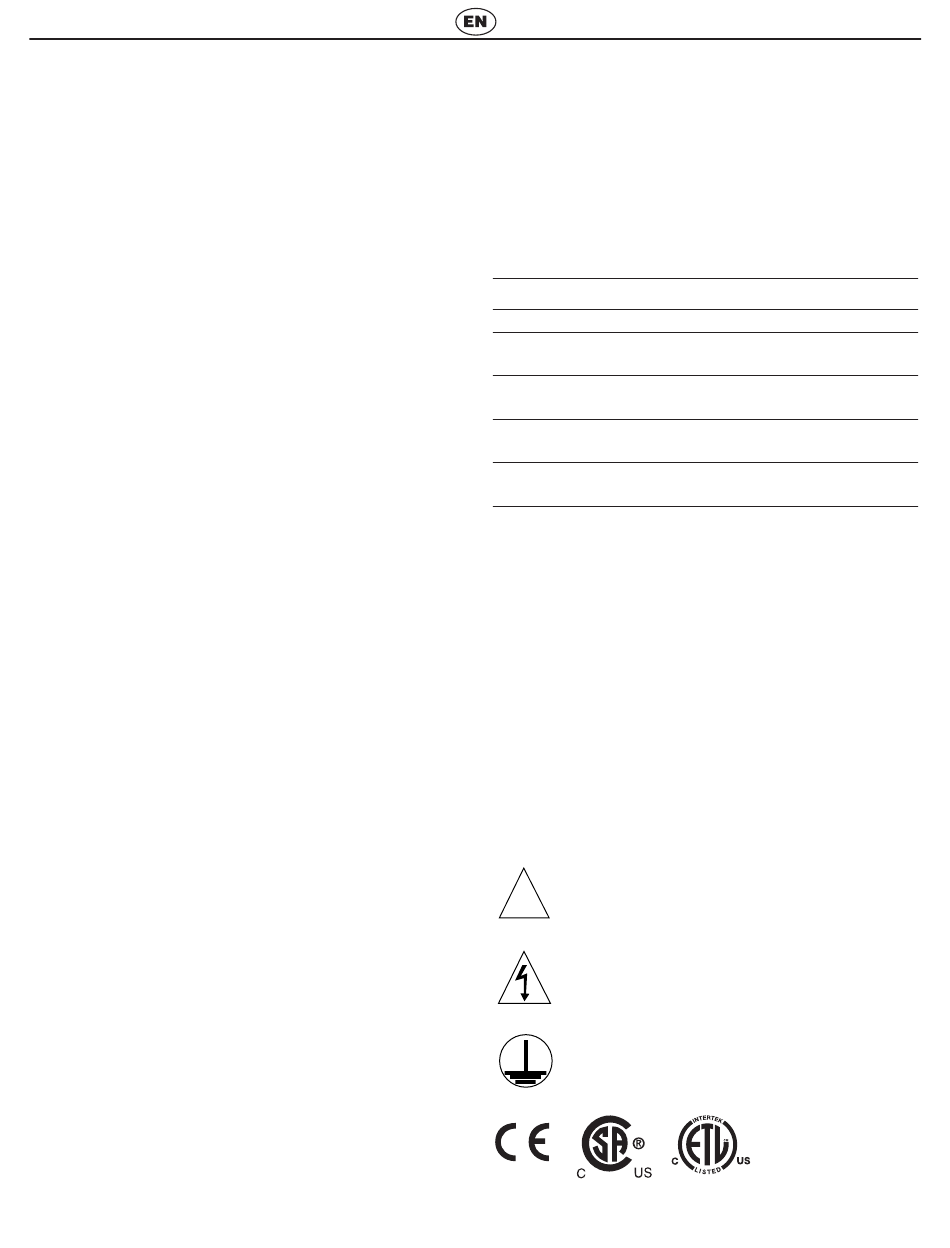

X. Product markings
!
Caution (refer to accompanying documents)
Caution, risk of electric shock
Protective Conductor Terminal
Owner's Guide
Watts Fuse
0.7 amp 100 2 amp
nominal nominal slow blow
0.7 amp 100 2 amp
nominal nominal slow blow
0.5 amp 100 3AG
nominal nominal .75 amp
0.5 amp 100 3AG
nominal nominal .75 amp
•
