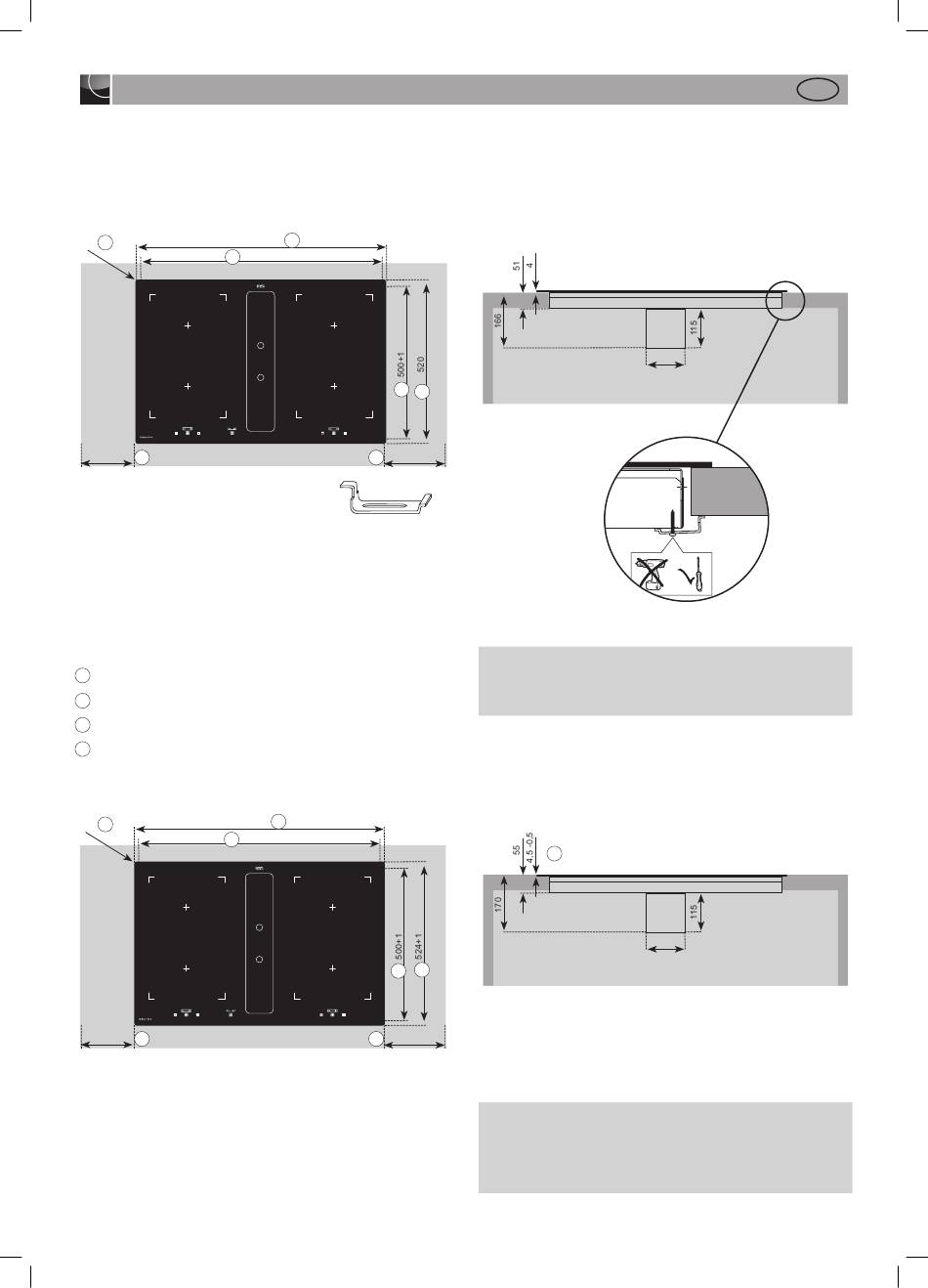

Instructions for assembly
Variable installation options
When installing your hob, choose between:
Installation on top
800
4
R5
750+1
2
min.50
1
Bracket
· Insert the hob and align it.
· Insert the brackets from below with the screws in the mounting
holes provided, align them and screw them tight.
· Only tighten the screws manually with a screwdriver; do not use
an electric screwdriver.
· Make sure that the brackets are correctly positioned if the work-
top is thin.
1 Minimal clearance to adjacent walls
2 Opening dimensions
3 Recess dimensions
4 Hob outer dimensions
Flush-mounted installation
804+1
3
R7
750+1
2
min.50
1
Glue the sealing tape onto the corner of the supporting edge of
the worktop so that no silicone adhesive can be pressed under
the hob.
Put the hob into the opening in the worktop without any glue
and align it. Place the hob on height adjusting plates if necessary.
40
:
4
2
4
Made in Germany
1
min.50
3
3
2
Made in Germany
1
min.50
84 x 455
Important
If the hob is not placed horizontally or if it is deformed, there is a
risk that the glass ceramic hob will break.
3
84 x 455
Fill the gap between the hob and the worktop with heat-resistant
silicone adhesive.
Important
The silicone adhesive must not get under the support surface of
the hob. If this occurs it will not be possible to remove the hob
again at a later stage. No liability will be assumed in the case of
failure to observe these instructions.
