6 Electrical installation

Connection plan

6.2 Connection plan
Use with 9400
Standard mounting
K1
L1
L2
L3
PE
+

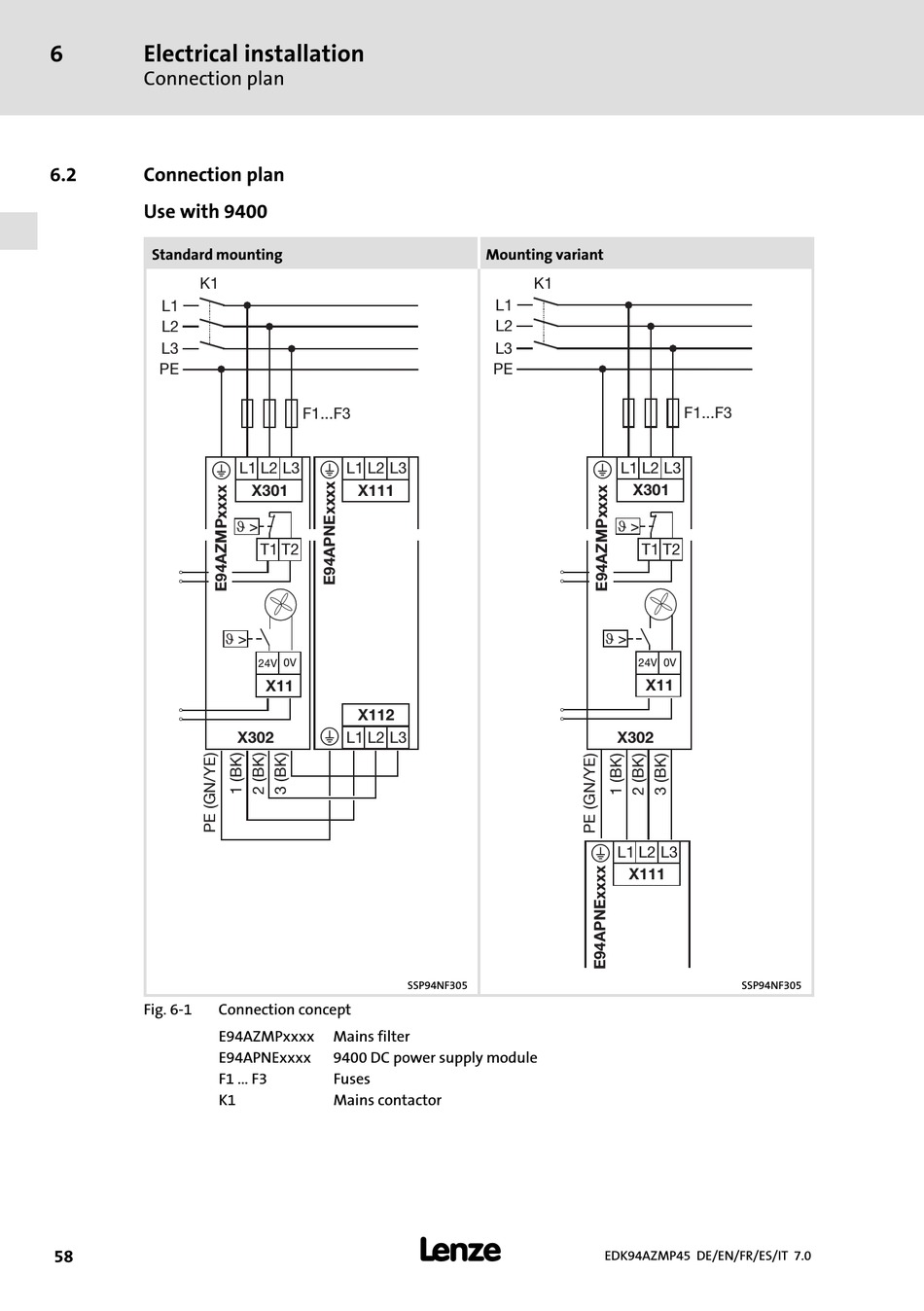

Fig. 6−1 Connection concept
E94AZMPxxxx
E94APNExxxx
F1 ... F3
K1
58
F1...F3
+
L1 L2 L3 L1 L2 L3
X301 X111
T1 T2
24V 0V
X11
X112
+
X302
L1 L2 L3
SSP94NF305
Mains filter
9400 DC power supply module
Fuses
Mains contactor
Mounting variant
K1
L1
L2
L3
PE
+
+
l
F1...F3
L1 L2 L3
X301
T1 T2
24V 0V
X11
X302
L1 L2 L3
X111
SSP94NF305
