Use with i700

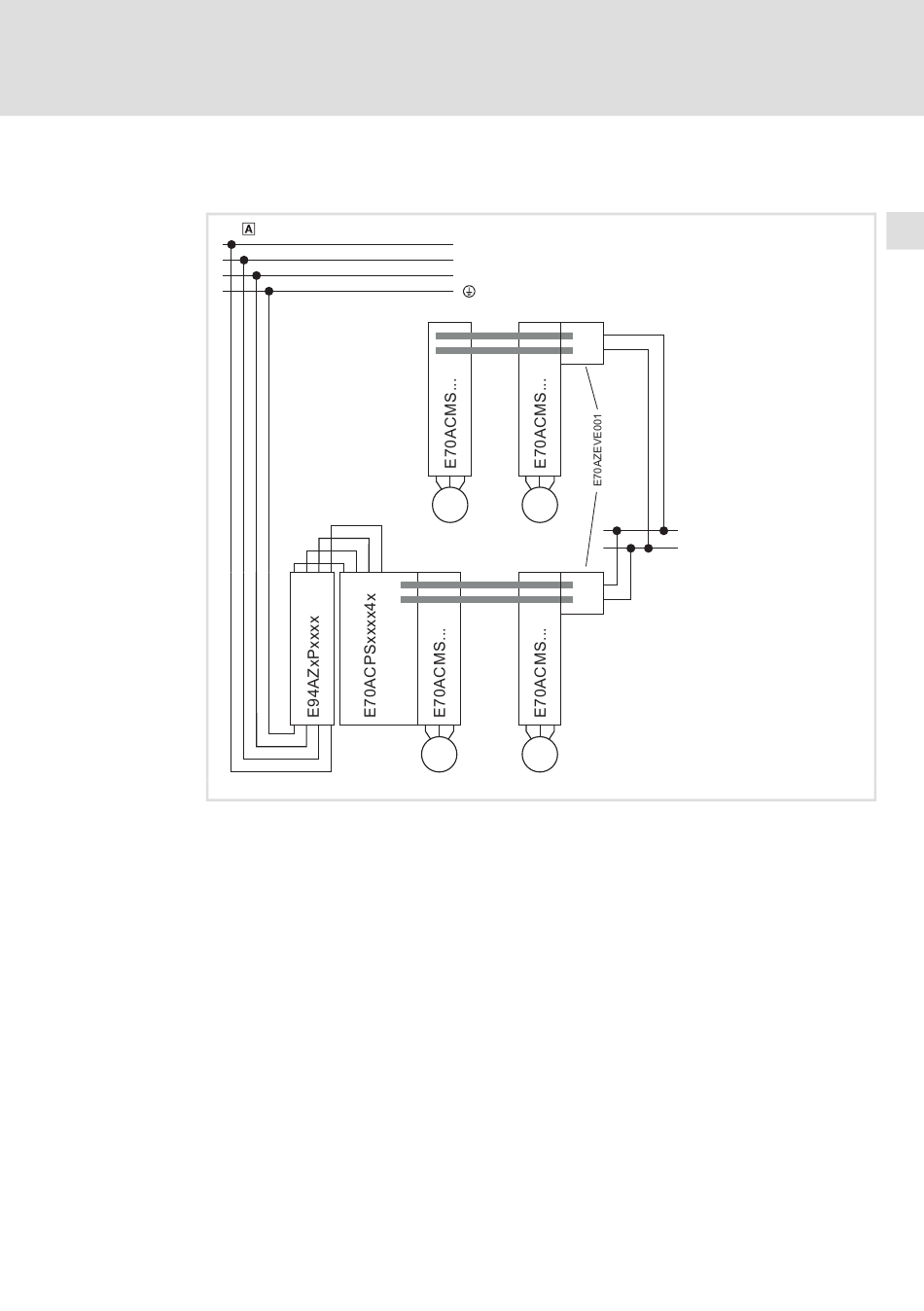

Fig. 5−2 Arrangement concept
0
E94AZxPxxxx
E70ACPSxxxx4x i700 DC power supply module
E70AZEVE001
EDK94AZMP45 DE/EN/FR/ES/IT 7.0
Mechanical installation
Arrangement of the devices
L1
L2
L3
...
M M
3~ 3~
...
M M
3~ 3~
Mounting: side mounting
Filter (mains connection: at the bottom, output: at the top)
i700 DC terminal (only in the case of a distributed installation)
l
+UG
-UG
SSP94FF003 S2
