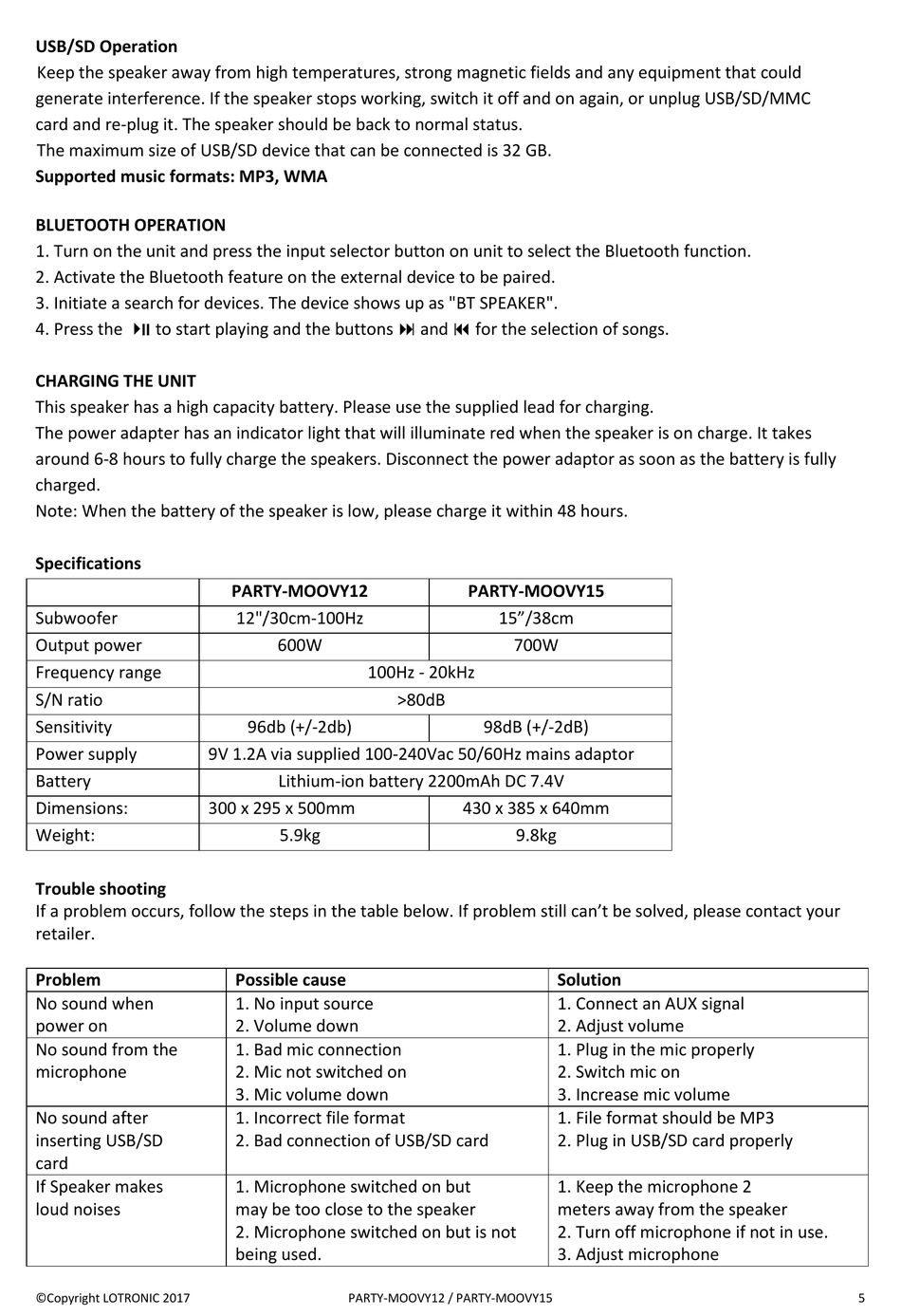

Party Light & Sound PARTY-MOOVY12 Bedienungsanleitung Seite 5

USB/SD Operation
Keep the speaker away from high temperatures, strong magnetic fields and any equipment that could
generate interference. If the speaker stops working, switch it off and on again, or unplug USB/SD/MMC
card and re-plug it. The speaker should be back to normal status.
The maximum size of USB/SD device that can be connected is 32 GB.
Supported music formats: MP3, WMA
BLUETOOTH OPERATION
1. Turn on the unit and press the input selector button on unit to select the Bluetooth function.
2. Activate the Bluetooth feature on the external device to be paired.
3. Initiate a search for devices. The device shows up as "BT SPEAKER".
4. Press the   to start playing and the buttons  and  for the selection of songs.
CHARGING THE UNIT
This speaker has a high capacity battery. Please use the supplied lead for charging.
The power adapter has an indicator light that will illuminate red when the speaker is on charge. It takes
around 6-8 hours to fully charge the speakers. Disconnect the power adaptor as soon as the battery is fully
charged.
Note: When the battery of the speaker is low, please charge it within 48 hours.
Specifications
Subwoofer
Output power
Frequency range
S/N ratio
Sensitivity
Power supply
Battery
Dimensions:
Weight:
Trouble shooting
If a problem occurs, follow the steps in the table below. If problem still can't be solved, please contact your
retailer.
Problem
No sound when
power on
No sound from the
microphone
No sound after
inserting USB/SD
card
If Speaker makes
loud noises
©Copyright LOTRONIC 2017
PARTY-MOOVY12
12"/30cm-100Hz
600W
100Hz - 20kHz
96db (+/-2db)
9V 1.2A via supplied 100-240Vac 50/60Hz mains adaptor
Lithium-ion battery 2200mAh DC 7.4V
300 x 295 x 500mm
5.9kg
Possible cause
1. No input source
2. Volume down
1. Bad mic connection
2. Mic not switched on
3. Mic volume down
1. Incorrect file format
2. Bad connection of USB/SD card
1. Microphone switched on but
may be too close to the speaker
2. Microphone switched on but is not
being used.
PARTY-MOOVY12 / PARTY-MOOVY15
PARTY-MOOVY15
15"/38cm
700W
>80dB
98dB (+/-2dB)
430 x 385 x 640mm
9.8kg
Solution
1. Connect an AUX signal
2. Adjust volume
1. Plug in the mic properly
2. Switch mic on
3. Increase mic volume
1. File format should be MP3
2. Plug in USB/SD card properly
1. Keep the microphone 2
meters away from the speaker
2. Turn off microphone if not in use.
3. Adjust microphone
5
