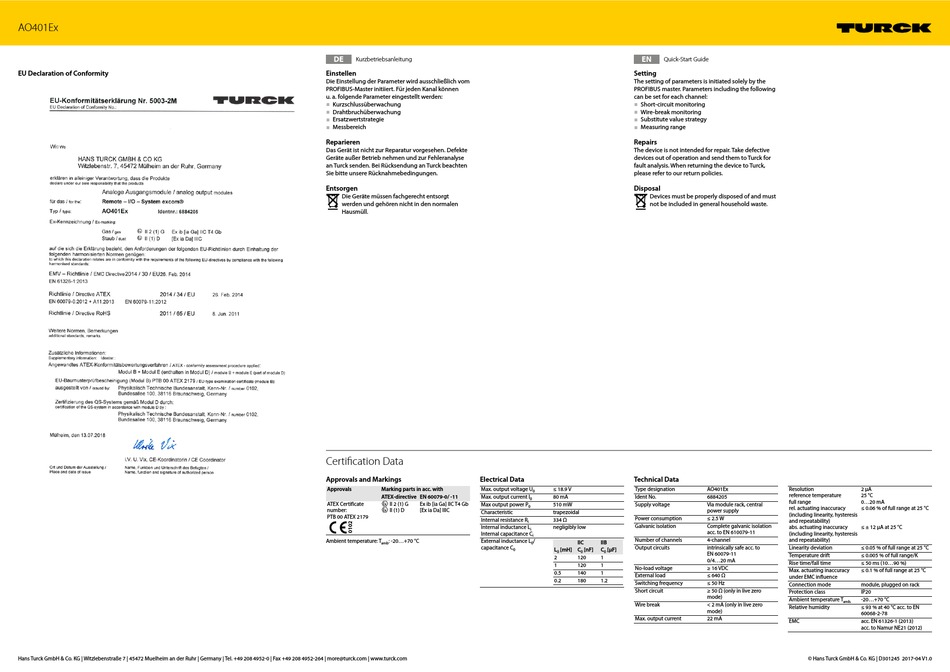

AO401Ex
EU Declaration of Conformity
Hans Turck GmbH & Co. KG | Witzlebenstraße 7 | 45472 Muelheim an der Ruhr | Germany | Tel. +49 208 4952-0 | Fax +49 208 4952-264 | more@turck.com | www.turck.com
DE
Kurzbetriebsanleitung
Einstellen
Die Einstellung der Parameter wird ausschließlich vom
PROFIBUS-Master initiiert. Für jeden Kanal können
u. a. folgende Parameter eingestellt werden:
■
Kurzschlussüberwachung
■
Drahtbruchüberwachung
■
Ersatzwertstrategie
■
Messbereich
Reparieren
Das Gerät ist nicht zur Reparatur vorgesehen. Defekte
Geräte außer Betrieb nehmen und zur Fehleranalyse
an Turck senden. Bei Rücksendung an Turck beachten
Sie bitte unsere Rücknahmebedingungen.
Entsorgen
Die Geräte müssen fachgerecht entsorgt
werden und gehören nicht in den normalen
Hausmüll.
Certification Data
Approvals and Markings
Electrical Data
Approvals
Marking parts in acc. with
Max. output voltage U
ATEX-directive EN 60079-0/ -11
Max. output current I
ATEX Certificate
É II 2 (1) G
Ex ib [ia Ga] IIC T4 Gb
Max output power P
number:
É II (1) D
[Ex ia Da] IIIC
Characteristic
PTB 00 ATEX 2179
Internal resistance R
Internal inductance L
Internal capacitance C
Ambient temperature: T
: -20...+70 °C
External inductance L
amb
capacitance C
EN
Quick-Start Guide
Setting
The setting of parameters is initiated solely by the
PROFIBUS master. Parameters including the following
can be set for each channel:
■
Short-circuit monitoring
■
Wire-break monitoring
■
Substitute value strategy
■
Measuring range
Repairs
The device is not intended for repair. Take defective
devices out of operation and send them to Turck for
fault analysis. When returning the device to Turck,
please refer to our return policies.
Disposal
Devices must be properly disposed of and must
not be included in general household waste.
Technical Data
≤ 18.9 V
Type designation
0
80 mA
Ident No.
0
510 mW
Supply voltage
0
trapezoidal
Power consumption
334 Ω
i
Galvanic isolation
negligibly low
i
i
Number of channels
/
IIC
IIB
0
Output circuits
0
L
[mH] C
[nF]
C
[µF]
0
0
0
2
120
1
1
120
1
No-load voltage
0.5
140
1
External load
0.2
180
1.2
Switching frequency
Short circuit
Wire break
Max. output current
AO401Ex
Resolution
2 µA
reference temperature
25 °C
6884205
full range
0...20 mA
Via module rack, central
rel. actuating inaccuracy
≤ 0.06 % of full range at 25 °C
power supply
(including linearity, hysteresis
≤ 2.5 W
and repeatability)
Complete galvanic isolation
abs. actuating inaccuracy
≤ ± 12 µA at 25 °C
acc. to EN 610079-11
(including linearity, hysteresis
4-channel
and repeatability)
intrinsically safe acc. to
Linearity deviation
≤ 0.05 % of full range at 25 °C
EN 60079-11
Temperature drift
≤ 0.005 % of full range/K
0/4...20 mA
Rise time/fall time
≤ 50 ms (10...90 %)
≥ 16 VDC
Max. actuating inaccuracy
≤ 0.1 % of full range at 25 °C
≤ 640 Ω
under EMC influence
≤ 50 Hz
Connection mode
module, plugged on rack
≥ 50 Ω (only in live zero
Protection class
IP20
mode)
Ambient temperature T
-20...+70 °C
amb.
< 2 mA (only in live zero
Relative humidity
≤ 93 % at 40 °C acc. to EN
mode)
60068-2-78
22 mA
EMC
acc. EN 61326-1 (2013)
acc. to Namur NE21 (2012)
